Description

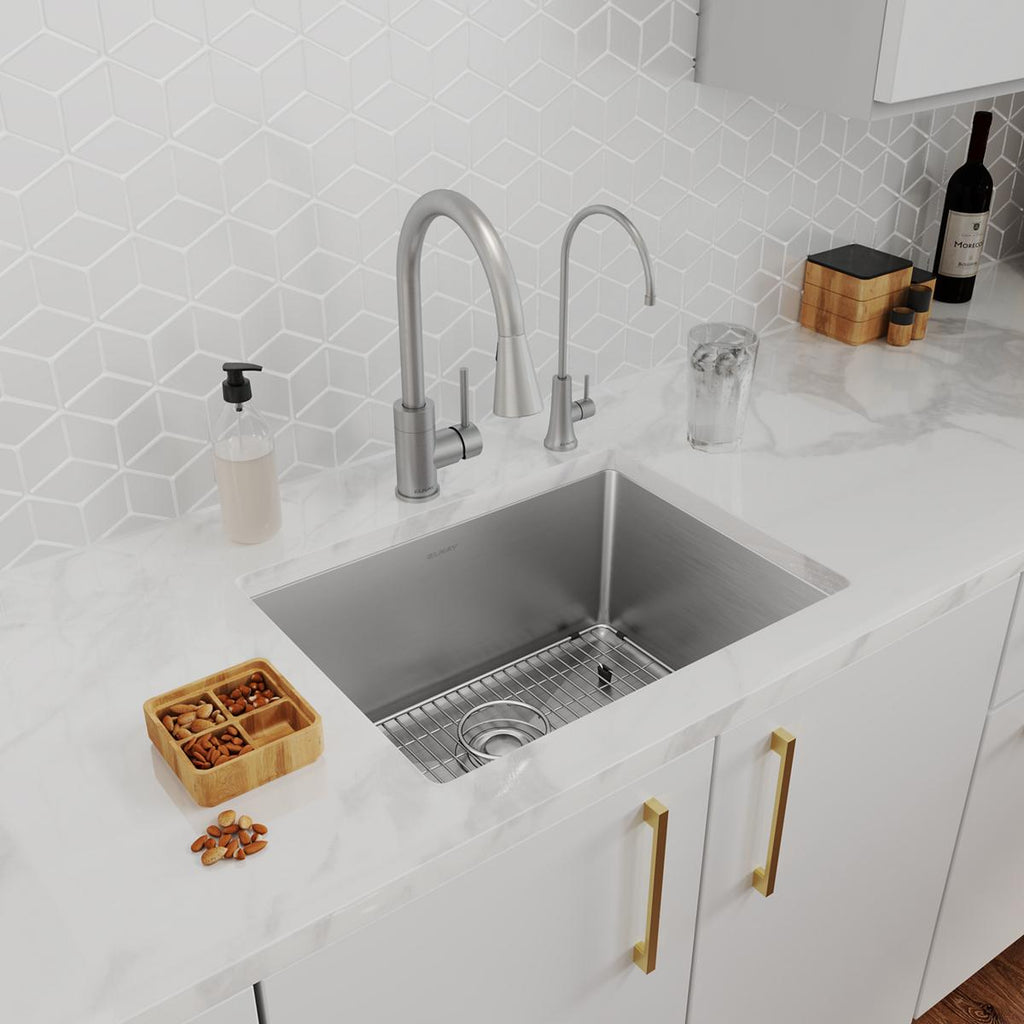

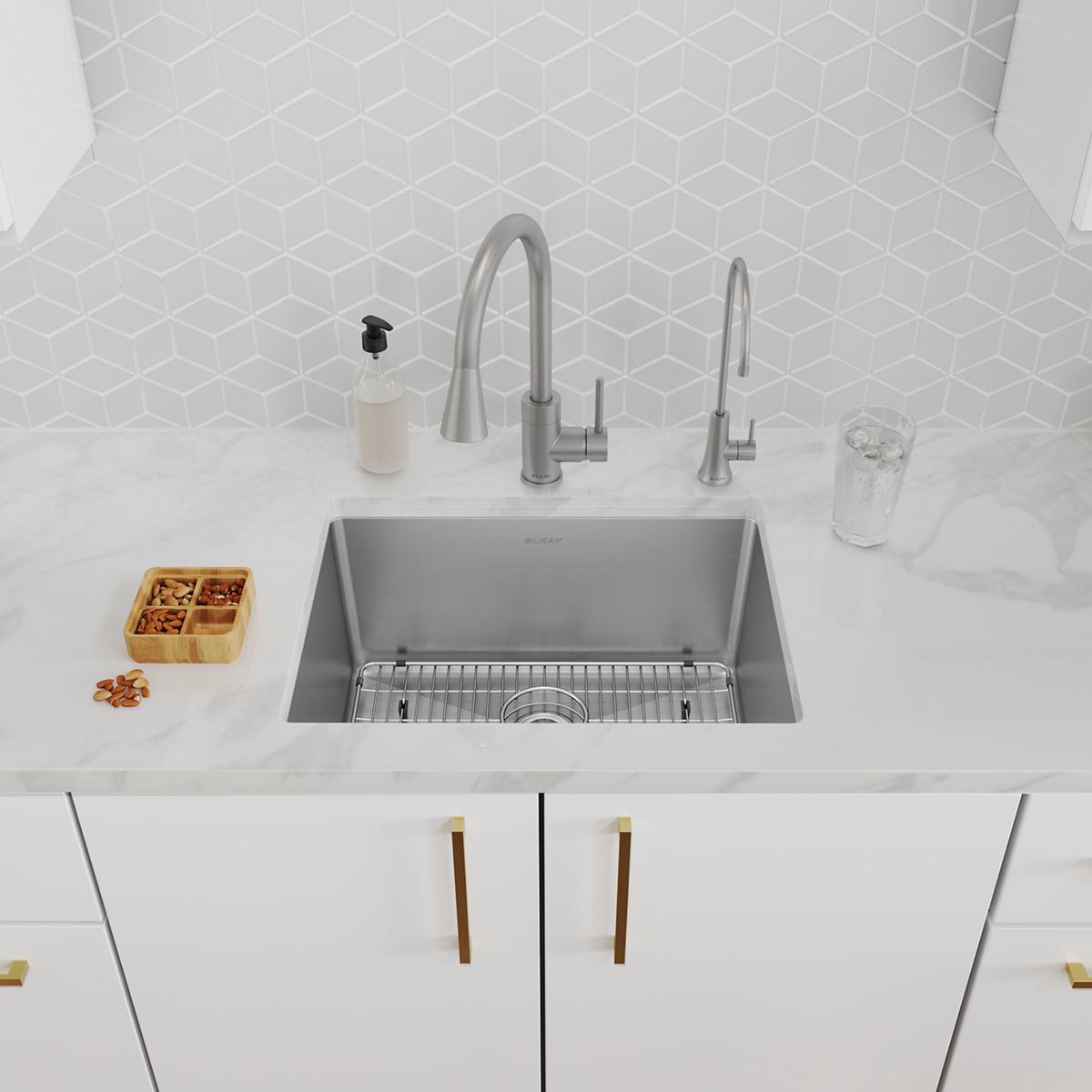

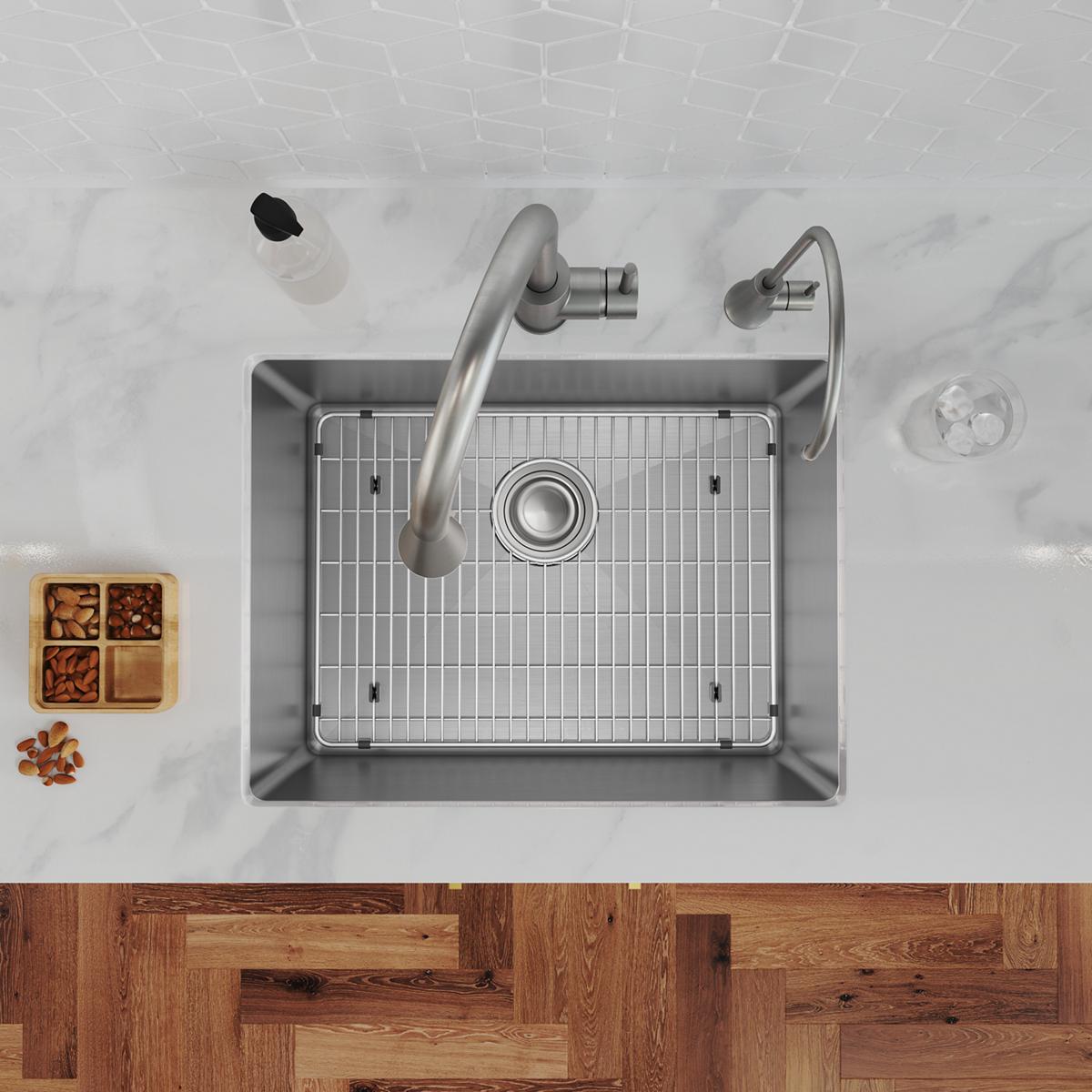

Elkay Crosstown 24" Undermount Stainless Steel Kitchen Sink Kit with Faucet, 16 Gauge, EFRU211510TFG
The Elkay Crosstown collection offers a fresh take on the classic stainless steel sink, combining beauty, function and contemporary design. Tight corners and a flat bottom provide more space inside the sink bowl for stacking and cleaning dishes. The striking geometric shape makes a statement in any home.
Please see our color disclaimer.

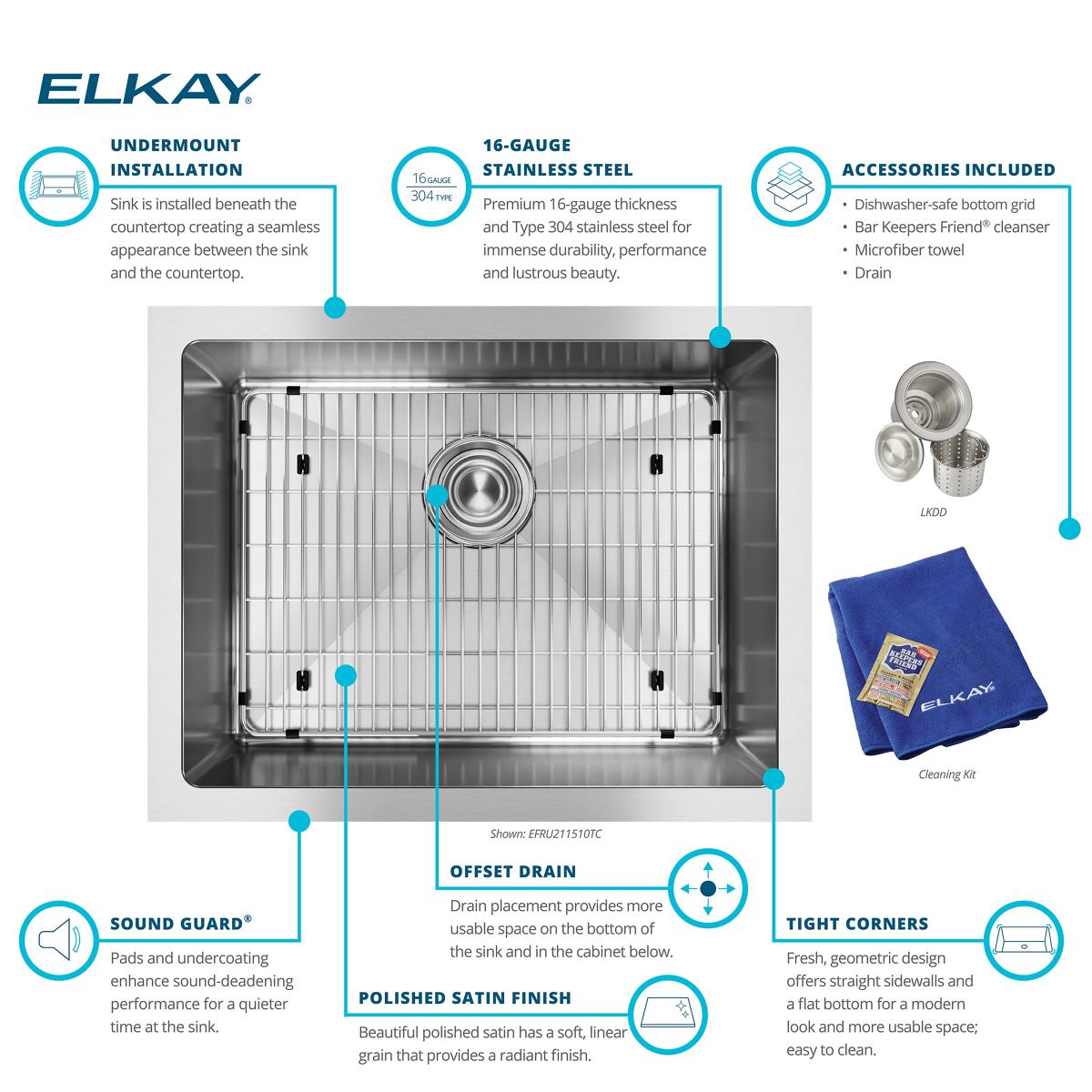

Features
- UNDERMOUNT INSTALLATION: Sink is installed beneath the countertop creating a seamless appearance between the sink and the countertop.
- SINGLE BOWL: Bowl gives you uninterrupted space for washing and stacking dishes or other household tasks

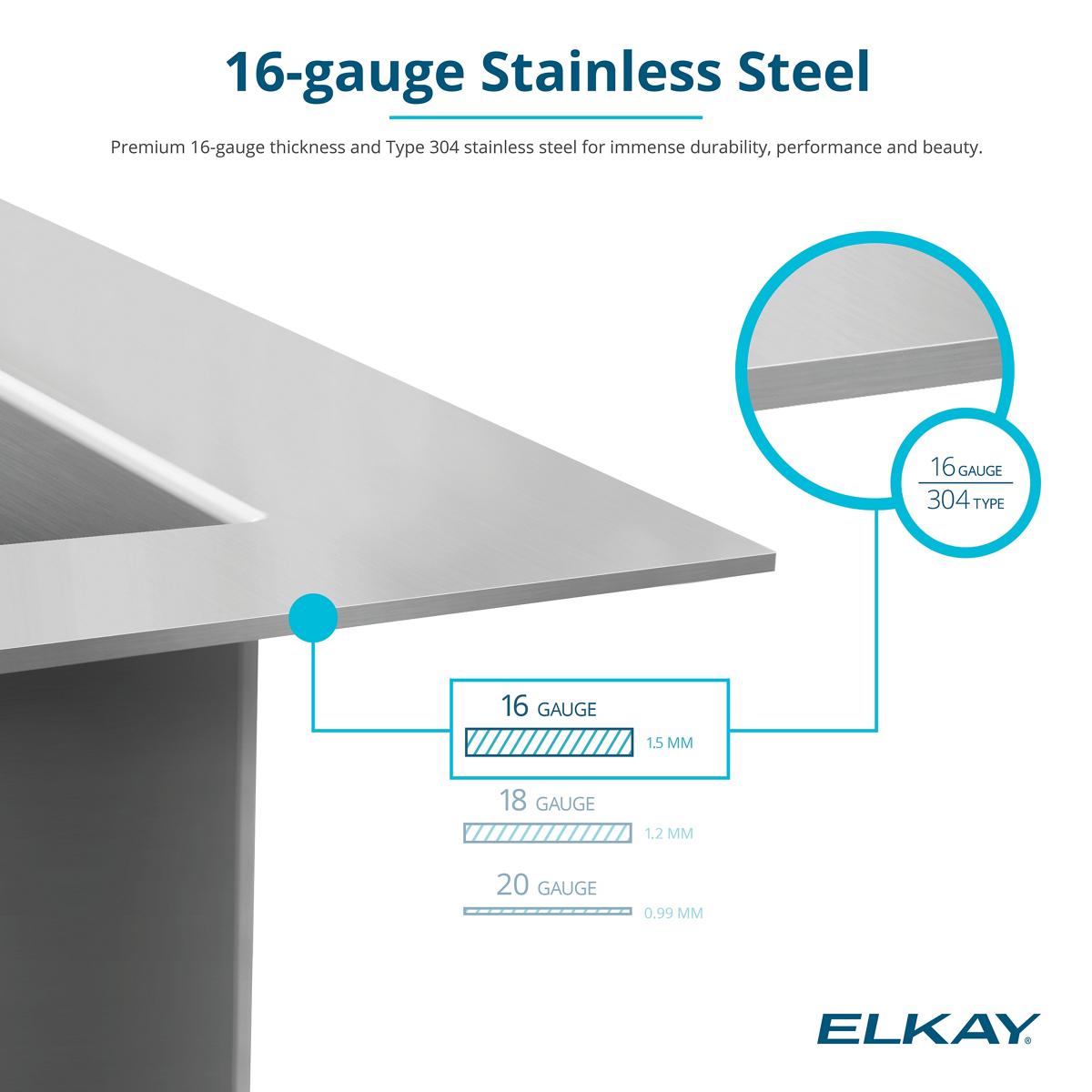

- 16-GAUGE STAINLESS STEEL: Premium 16-gauge thickness and Type 304 stainless steel for immense durability, performance and beauty.

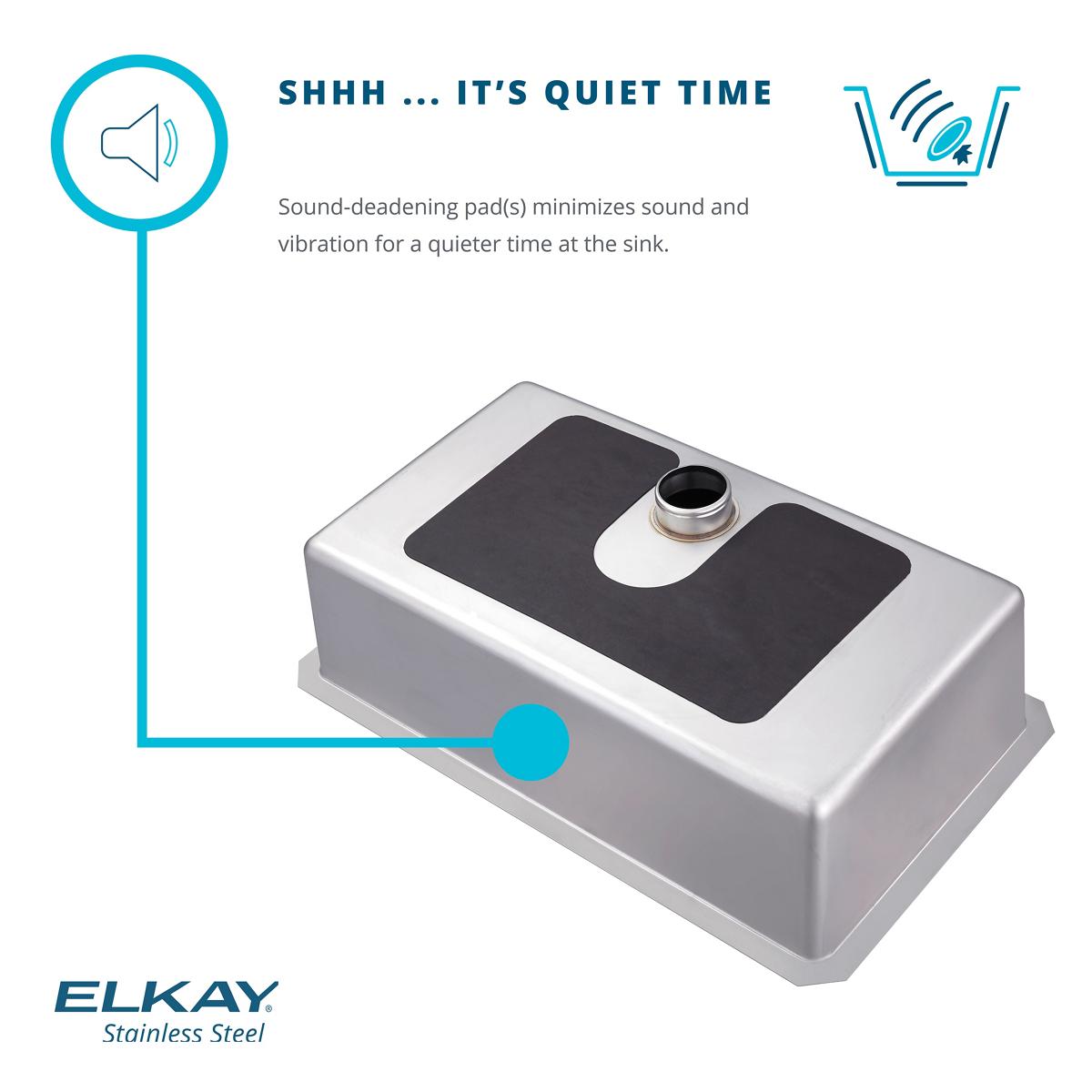

- Sound Guard: Pads and undercoating enhance sound-deadening performance for a quieter time at the sink
- TIGHT CORNERS: Fresh, geometric design offers straight sidewalls and a flat bottom for a modern look and more usable space; easy to clean.
- OFFSET DRAIN: Drain placement provides more usable space on the bottom of the sink and in the cabinet below
- LARGE CAPACITY: Straight sidewalls give the sink a flat bottom and offer more usable space for stacking, soaking and washing dishes; easy to clean.
- EXTRA-DEEP BOWL: High-capacity bowl offers more room inside for stacking dishes, filling stockpots, and handling large baking sheets and roasters.
- CROSS BREAKS: Creased accent lines inside the bowl provide a professional appearance.

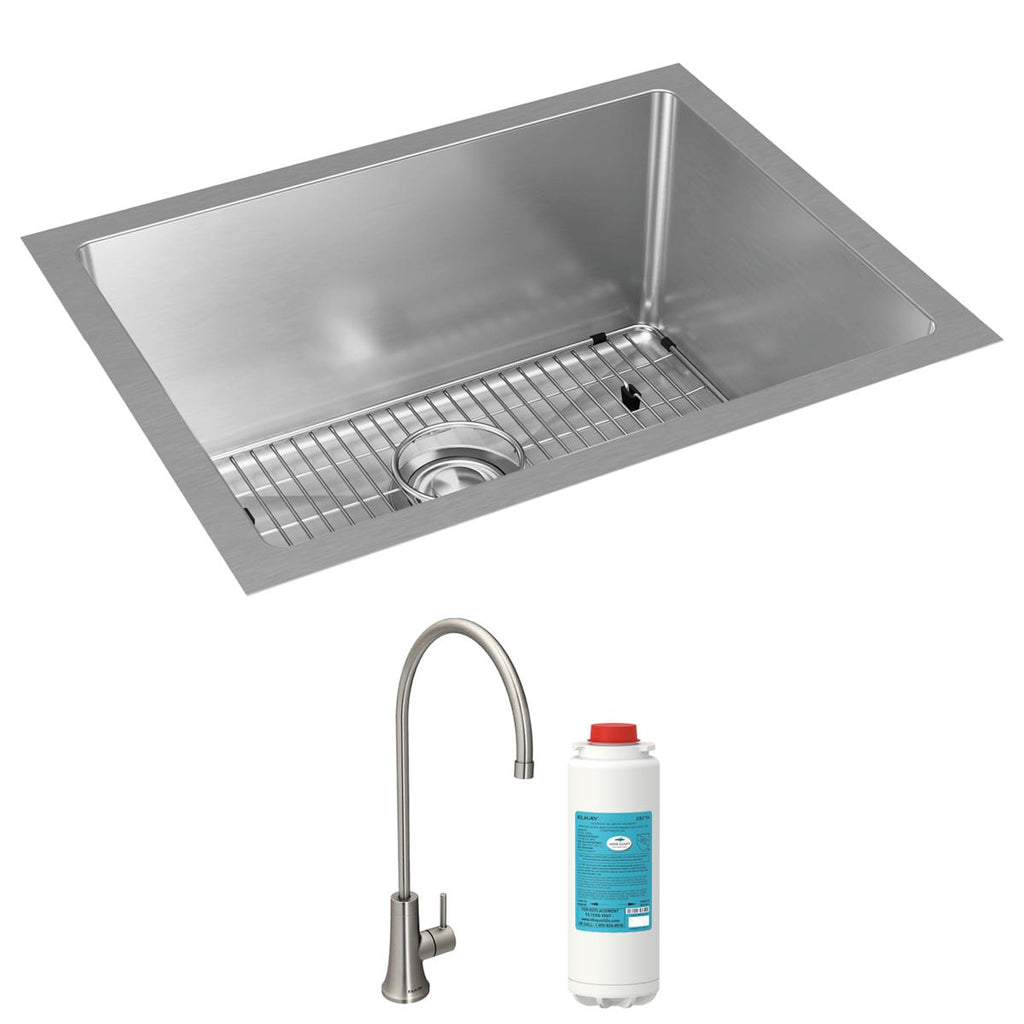

- KIT INCLUDES: EFRU211510T sink, CTXOBG1914 bottom grid, LKDD deep strainer drain, LKAV71FLS Beverage Faucet with filter included; conveniently packaged together to save you time

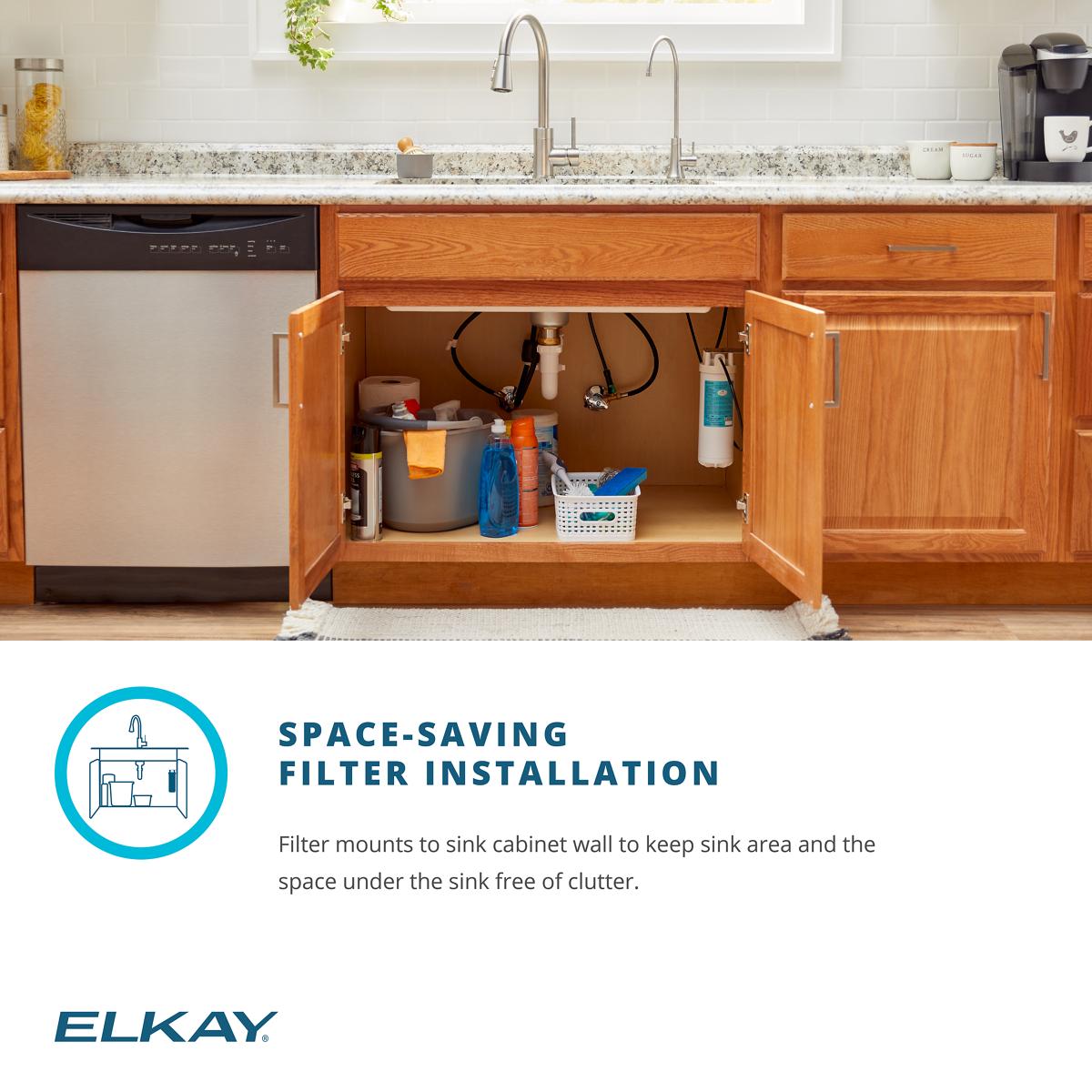

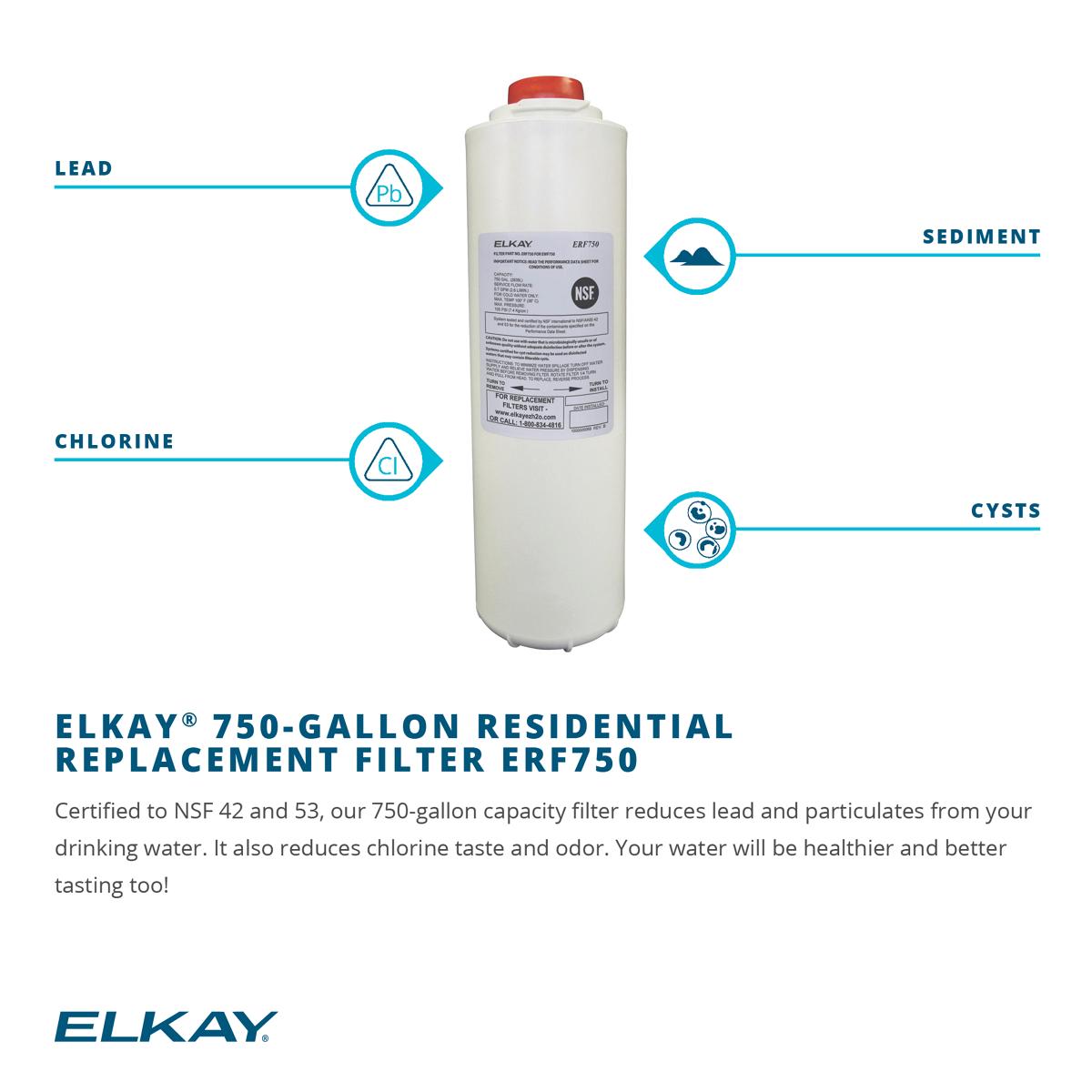

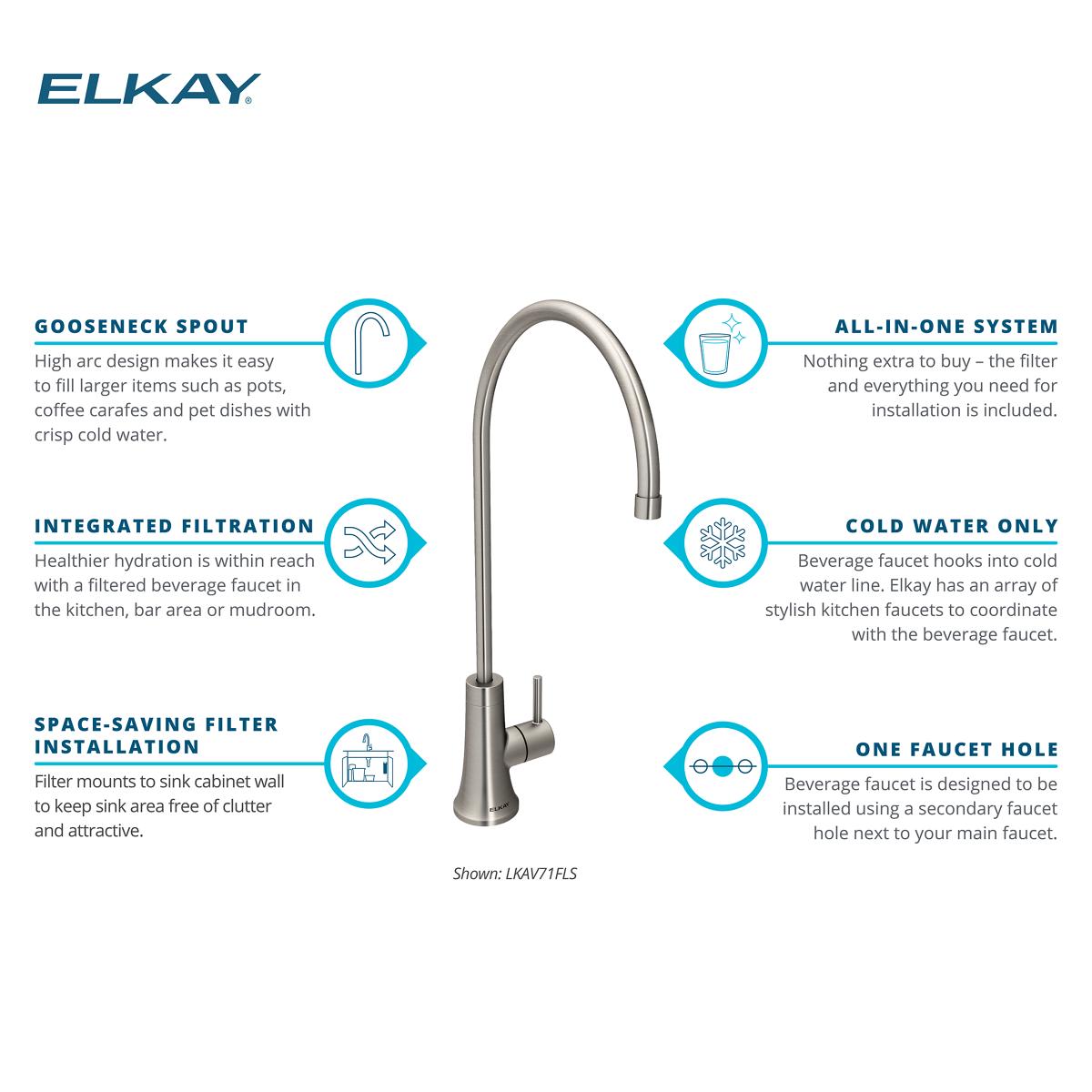

- FILTERED BEVERAGE FAUCET INCLUDED: Install using a secondary hole next to your main kitchen faucet; filter and all installation items are included.
- KITCHEN FAUCET SOLD SEPARATELY: Kitchen faucet for hot and cold water not included. Elkay offers a wide array of decorative kitchen faucets.
- BEVERAGE FAUCET FLOW RATE: Max flow rate is 1.5 GPM.

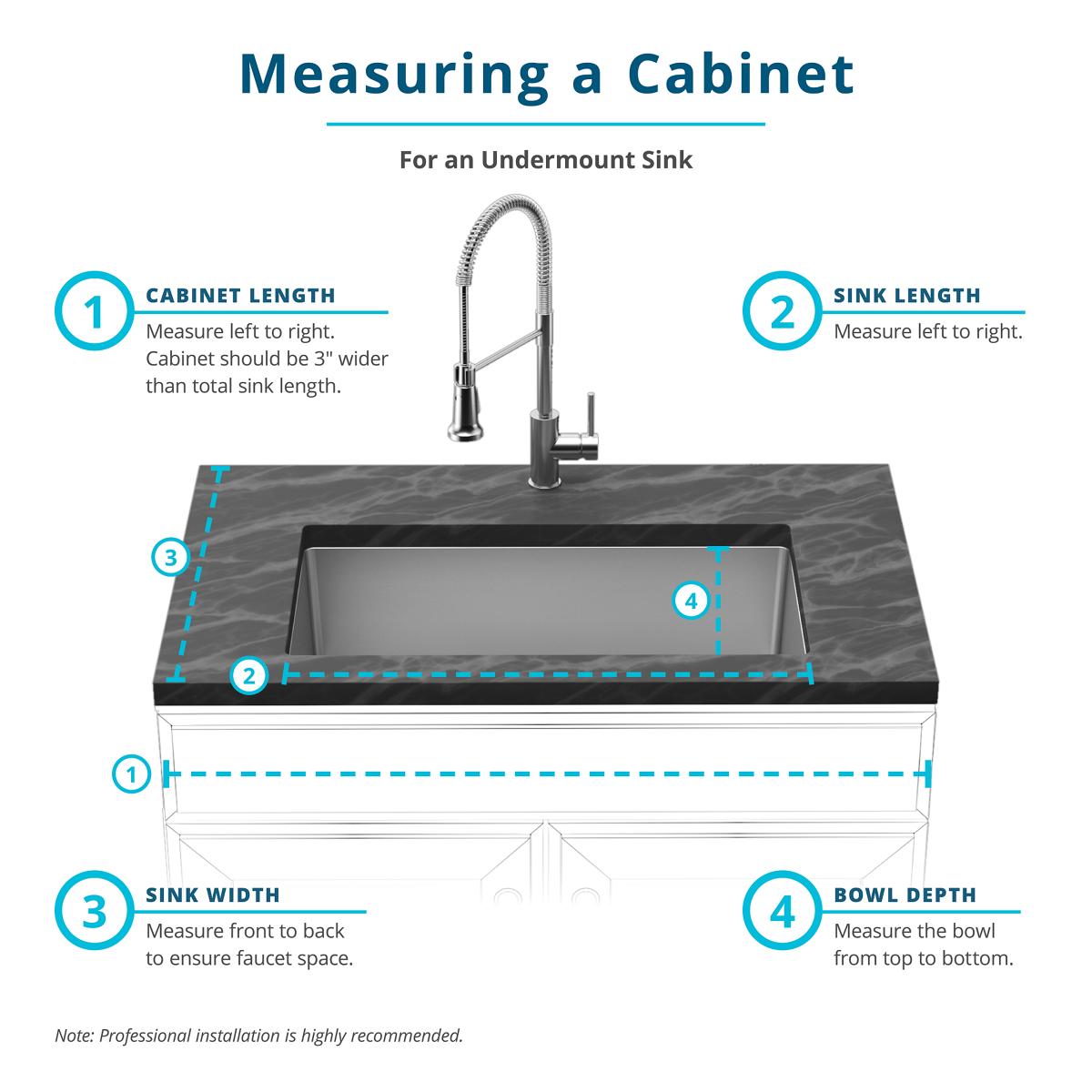

- BASE CABINET: Recommended Minimum Base Cabinet Size: 27"
- California residents see Prop 65 Warnings.
Kitchen faucet sold separately
Details
| Basket Strainer Included?: | Yes |
|---|---|
| Bowl Shape(s): | Rectangular |
| Bowl Split: | Single |
| Box Height: | 10.063" |
| Box Length: | 30.438" |
| Box Weight: | 32.5 lb(s) |
| Box Width: | 26.063" |
| Code / Standard Compliance: | ASME A112.19.3; ASME A112.18.1; ASME A112.18.2, CSA B45.4; CSA B125.1; CSA B125.2, NSF Standard 61, NSF Standard 372, NPCC, Lead Law Compliant, Lead Leaching NSF61/AB100 Compliant |
| Collection: | Crosstown |
| Color: | Stainless Steel |
| Country of Origin: | China |
| Drain Included?: | Yes |
| Drain Size: | 3.5 |
| Finish: | Stainless Steel |
| Freight Class (LTL Only): | 250 |
| Gauge: | 16 |
| Grid Included?: | Yes |
| Harmonized System Code: | 7324100050 |
| Included with Product: | LKAV71FLS Beverage Faucet and Filter with EFRU211510T Sink, CTXOBG1914 Bottom Grid, LKDD Deep Strainer Drain |
| Inner Depth: | 10" |

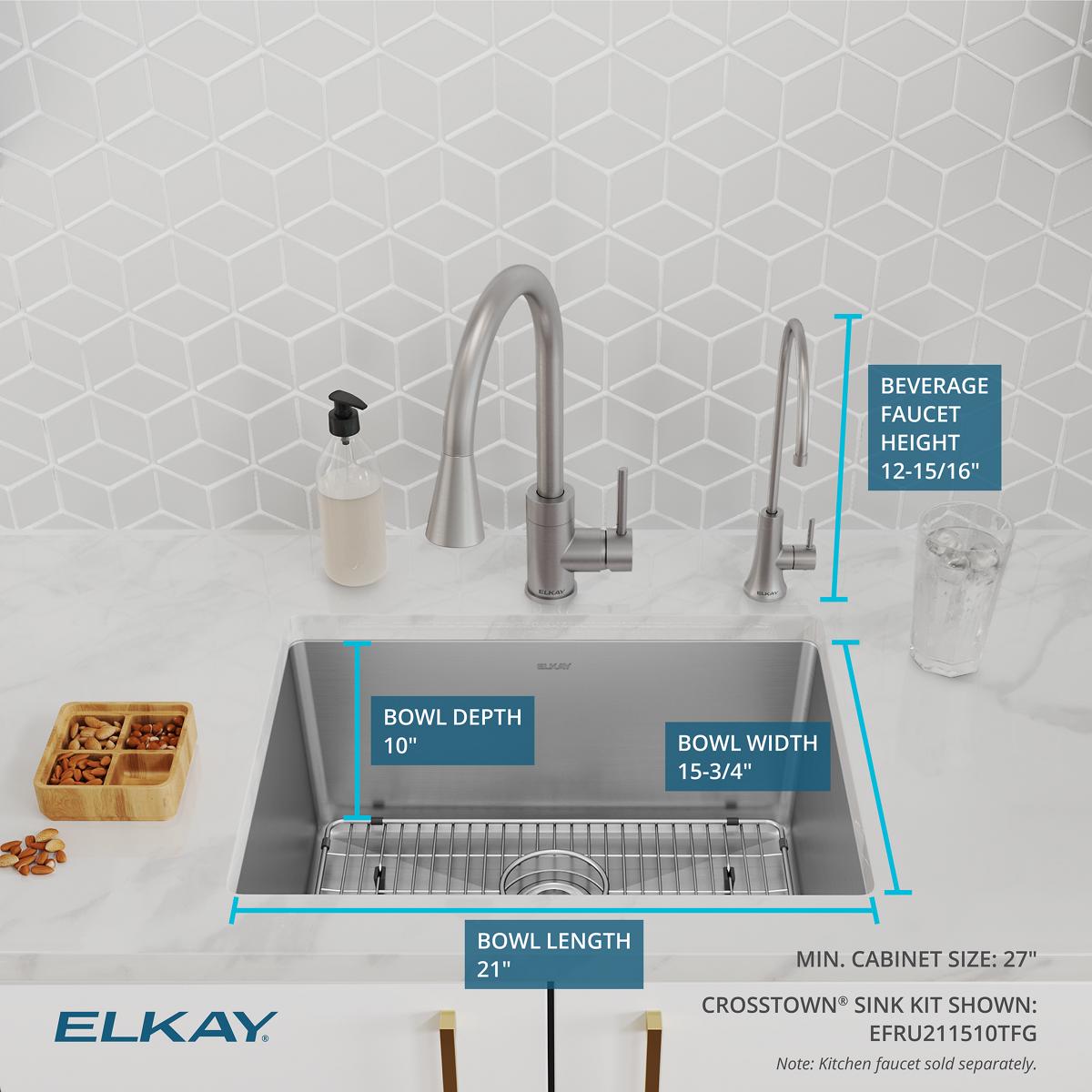

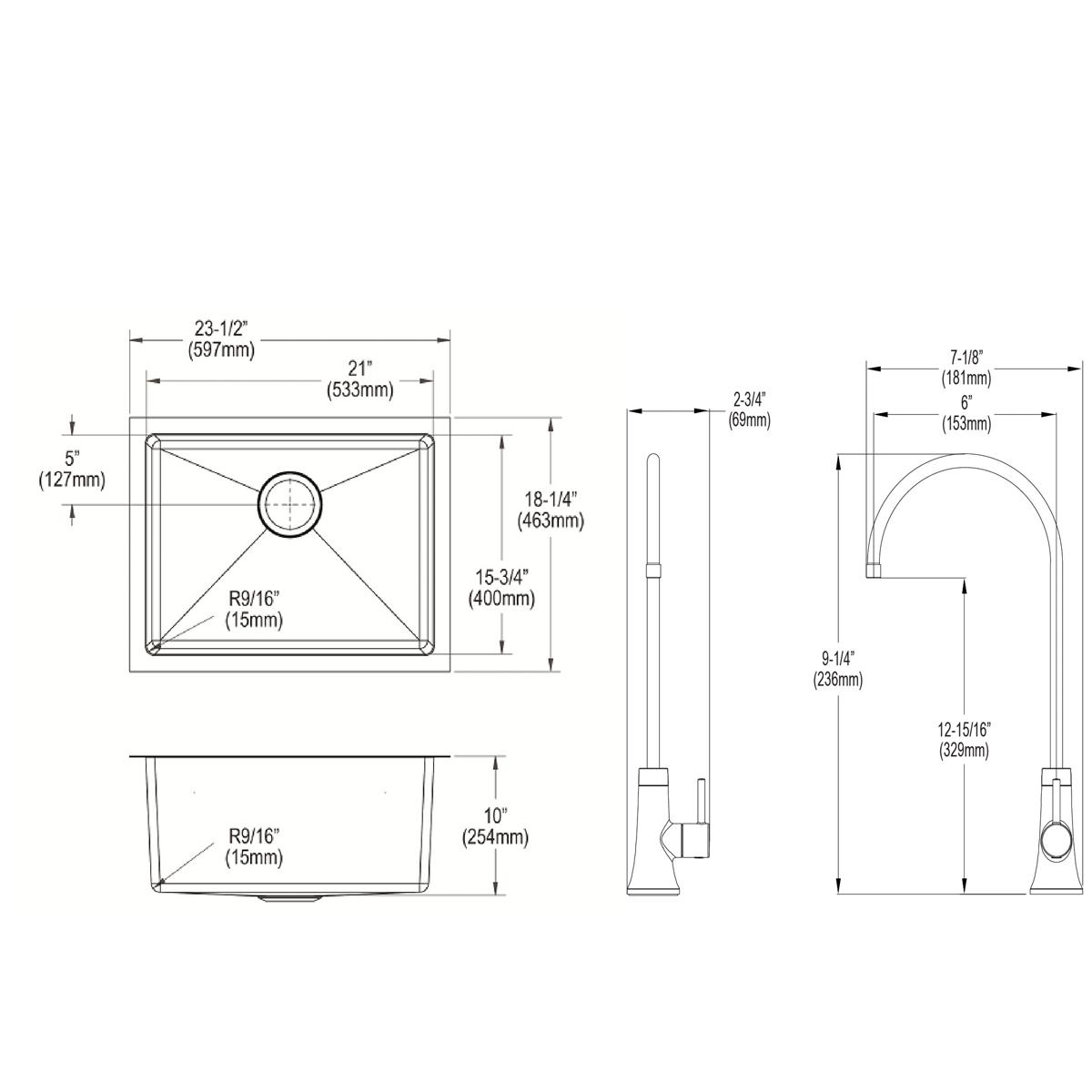

| Inside Bowl Dimensions: | 15.75" x 21" x 10" |
| Installation Type: | Undermount |
| Item Height: | 10" |
| Item Length (Front to Back): | 18.25" |
| Item Weight: | 29.5 lb(s) |
| Item Width (Side to Side): | 23.5" |
| Material: | Stainless Steel |
| Minimum Cabinet Size: | 27" |
| Mounting Hardware Included: | Included (1 qty) |
| NSF ANSI61 Certified?: | Yes |
| Number of Bowls: | 1 |
| Room: | Kitchen |
| SKU: | EFRU211510TFG |
| Shape: | Rectangle |
| Sound Deadening: | Full spray sides and bottom with Sides and Bottom pads |
| Style: | Transitional |
| cUPC Certified?: | Yes |
Warranty
Elkay Warranty Details (PDF)
Installation Instructions
Installation Instructions 1 (PDF)
Product Specifications (PDF)
Product Care
Elkay Product Care (PDF)
Video(s)
Product Video 1
Product Video 2
Product Video 3
keywords, Crosstown, rear drain, offset drain, off set drain
