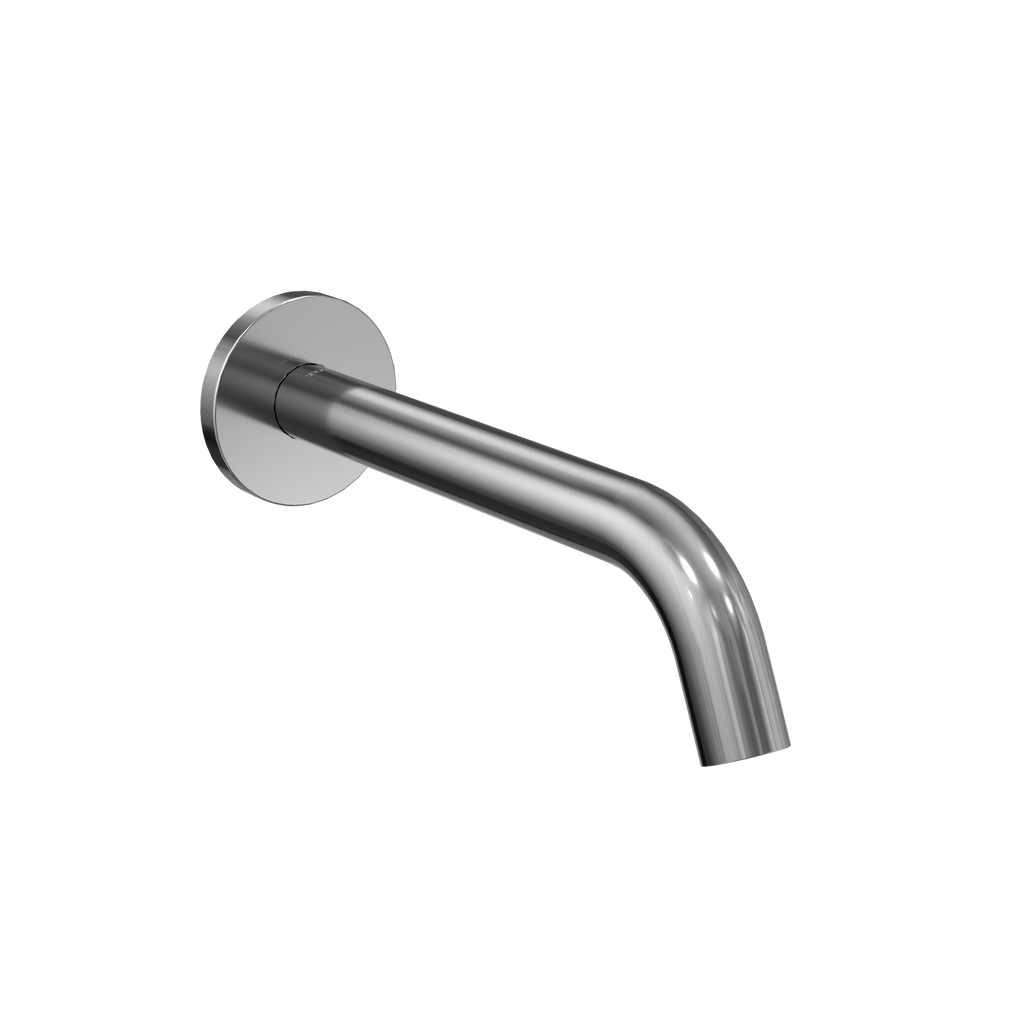

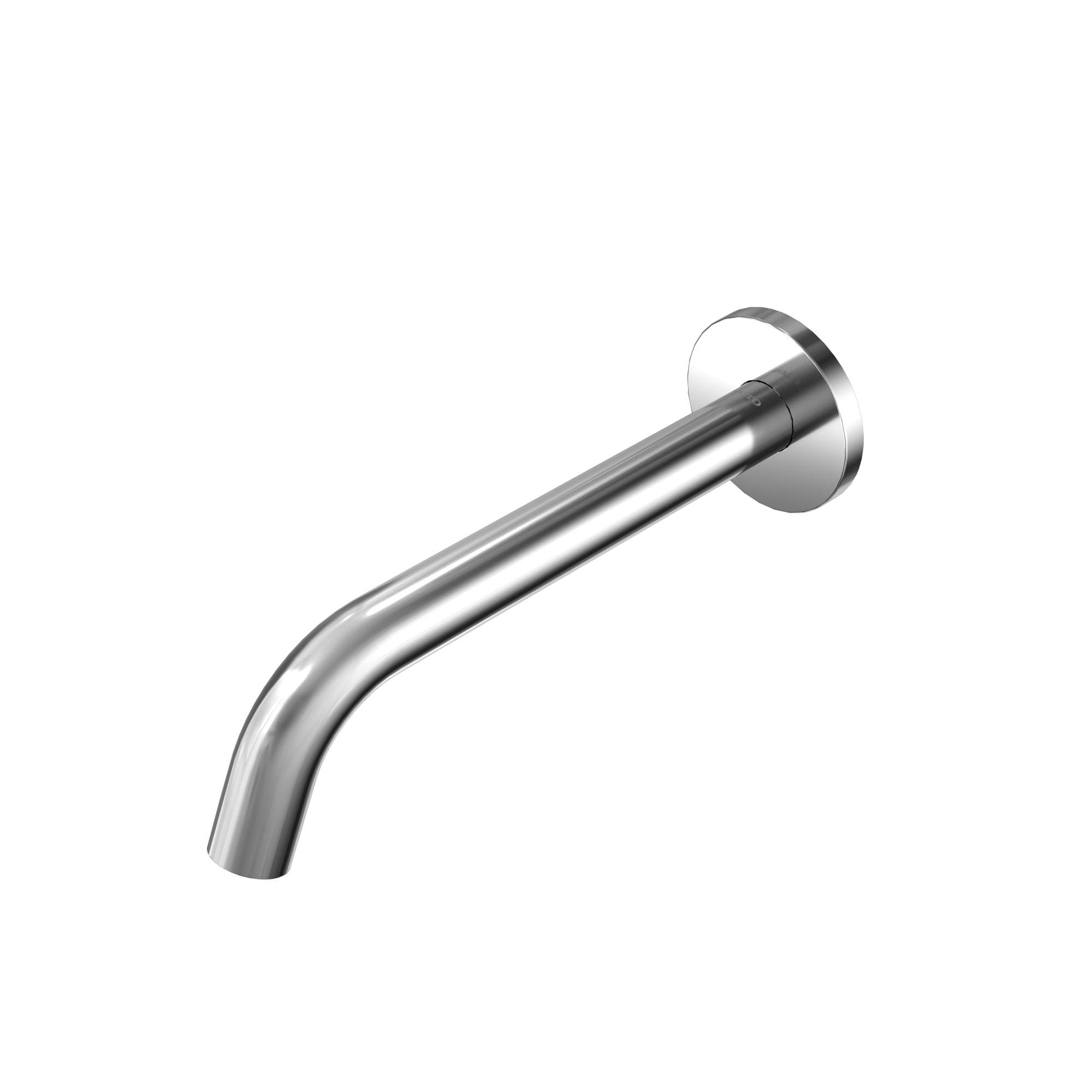

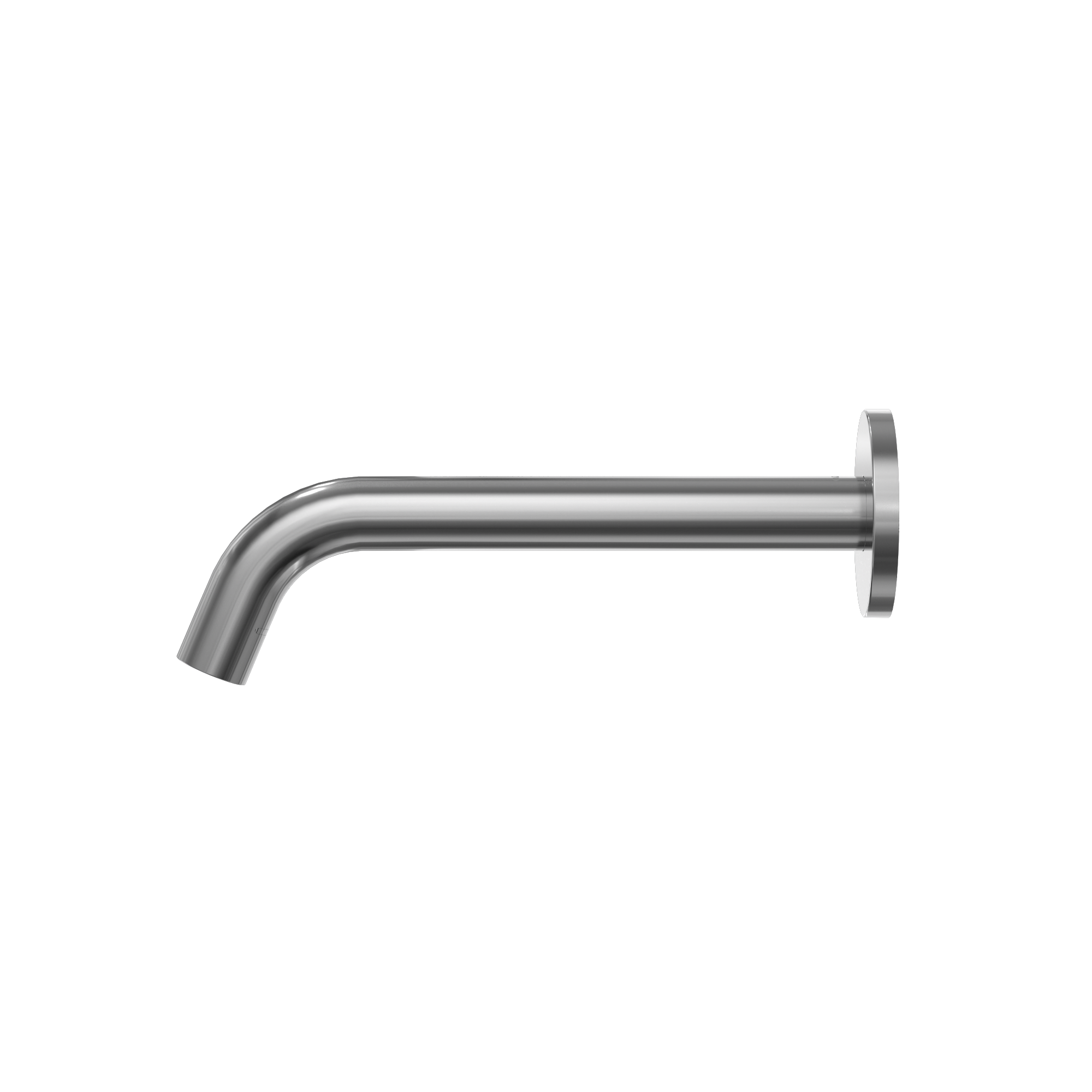

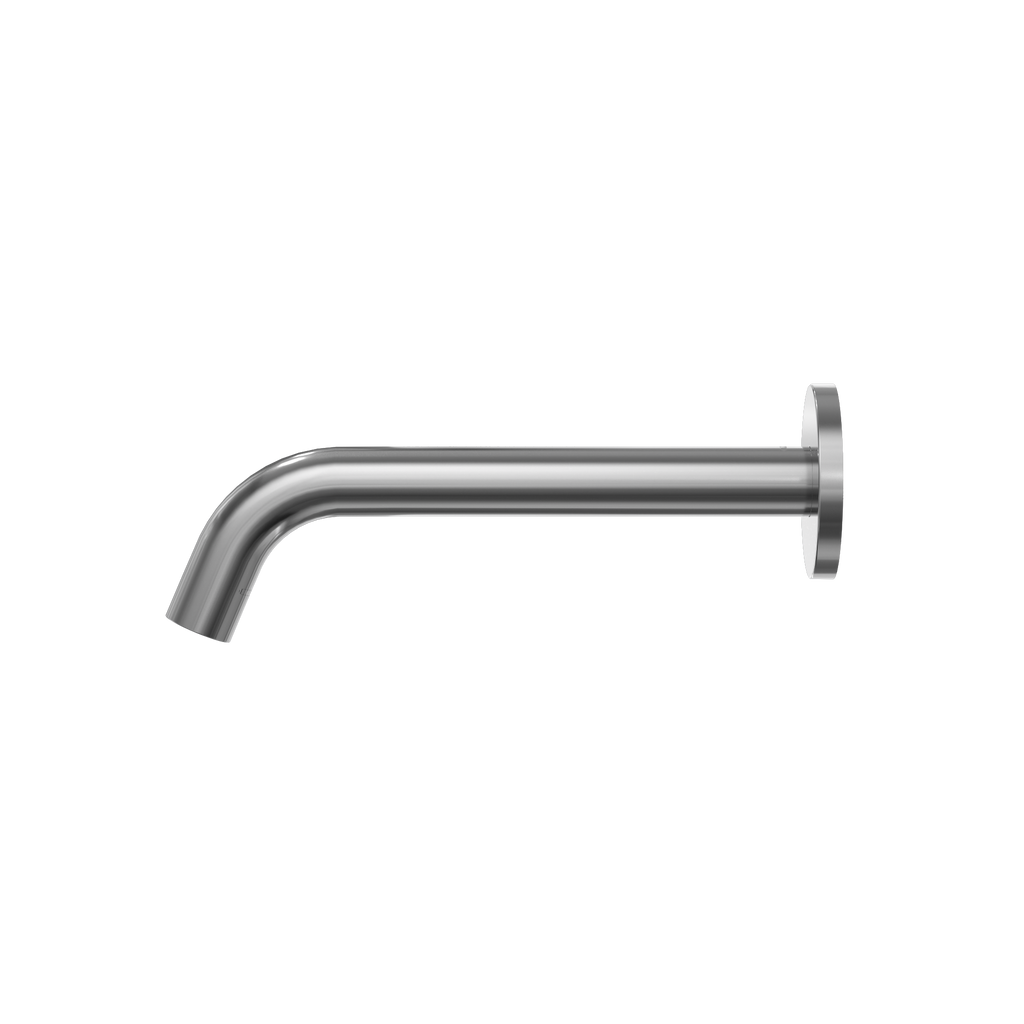

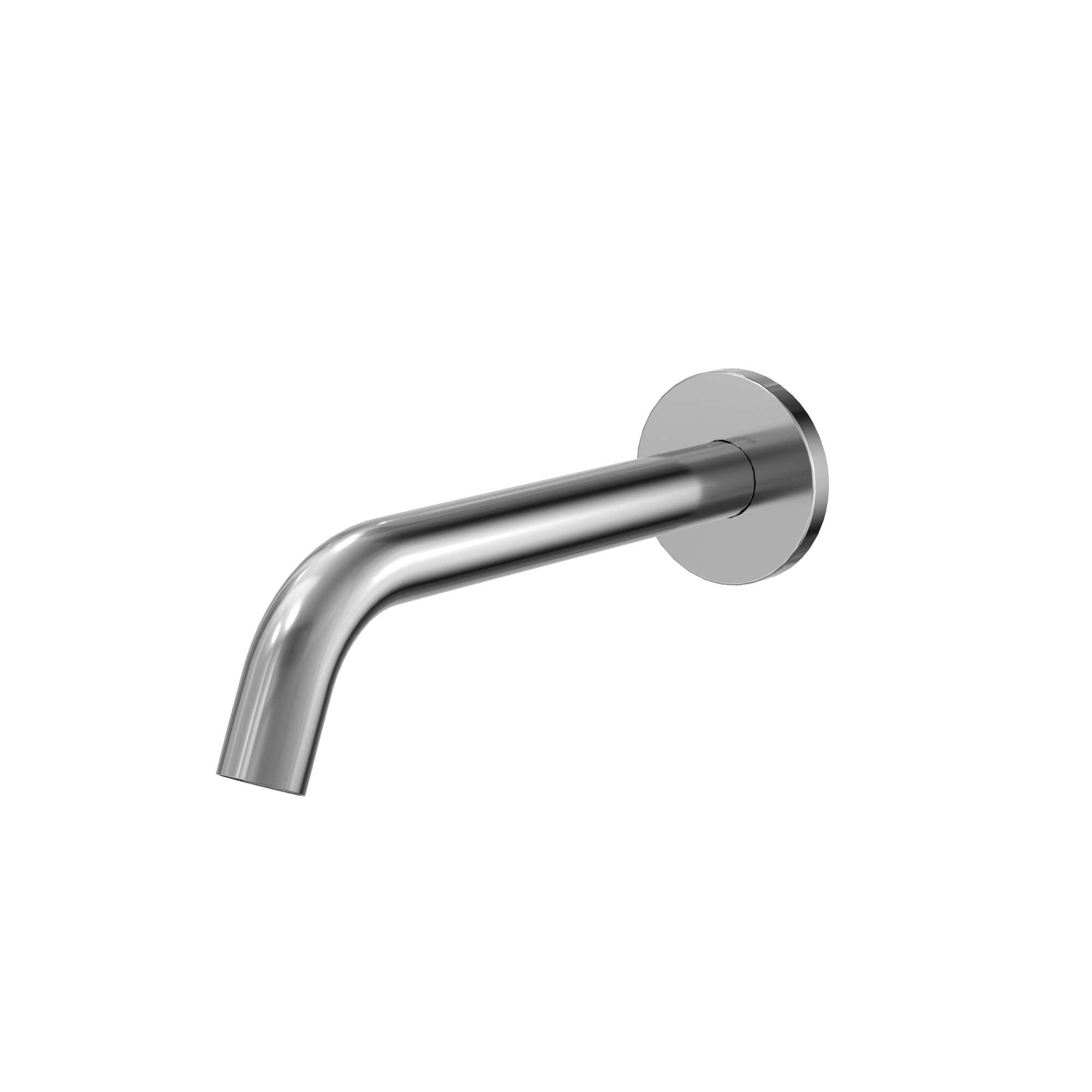

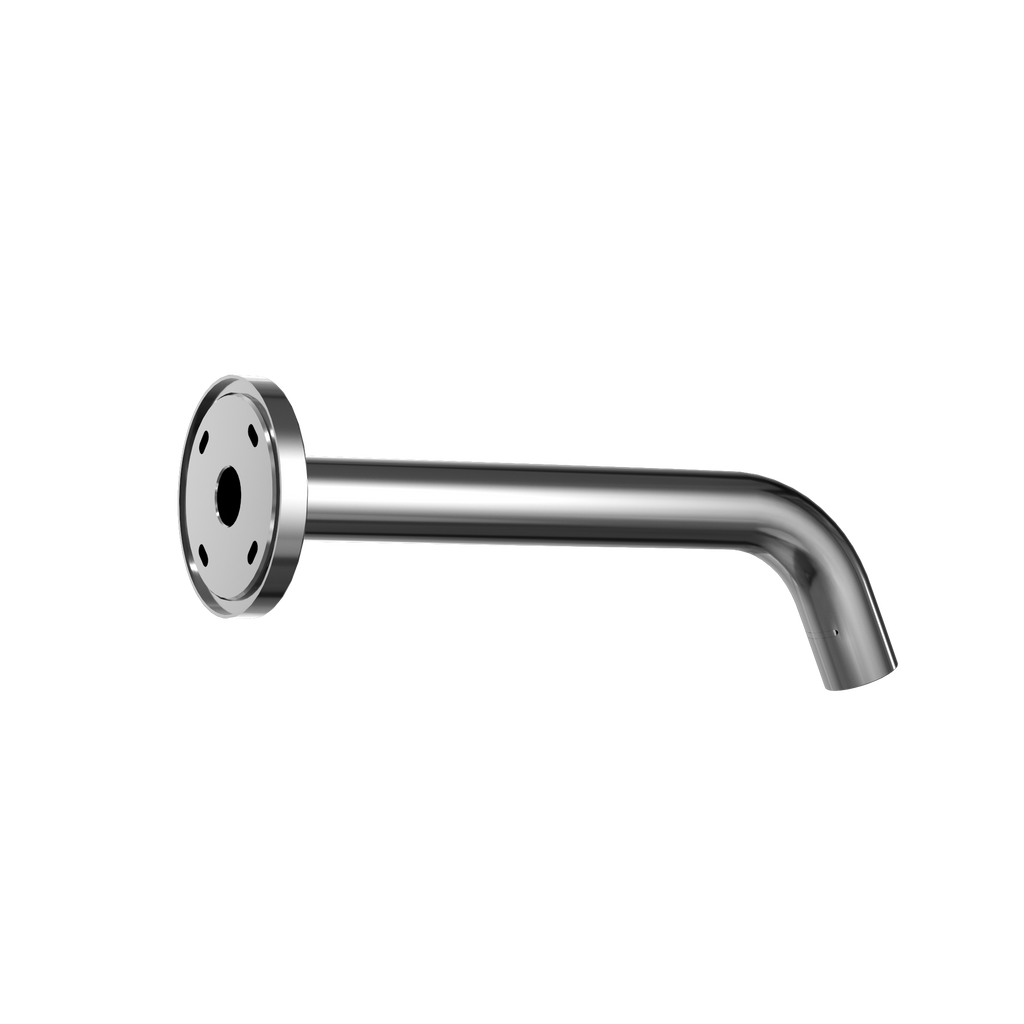

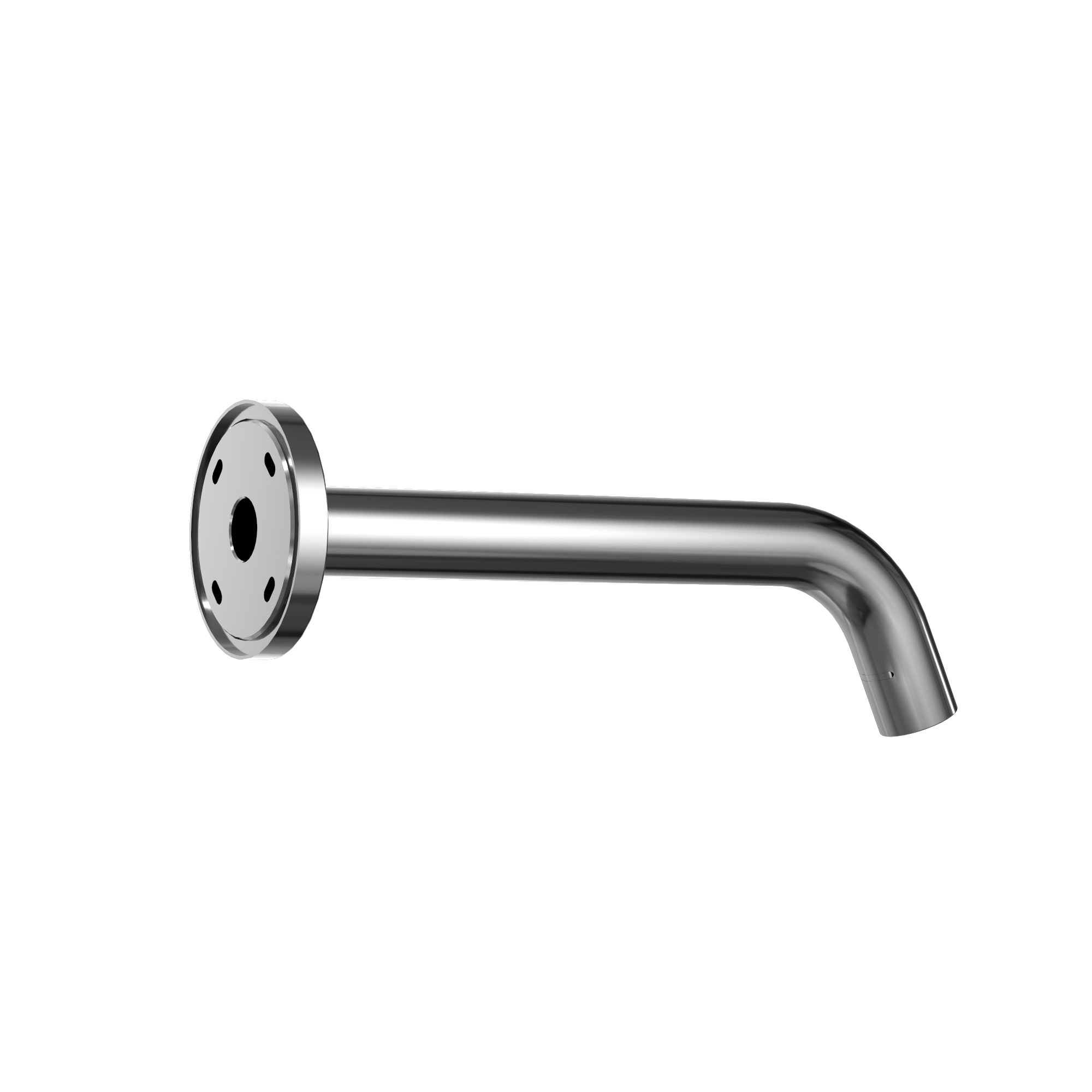

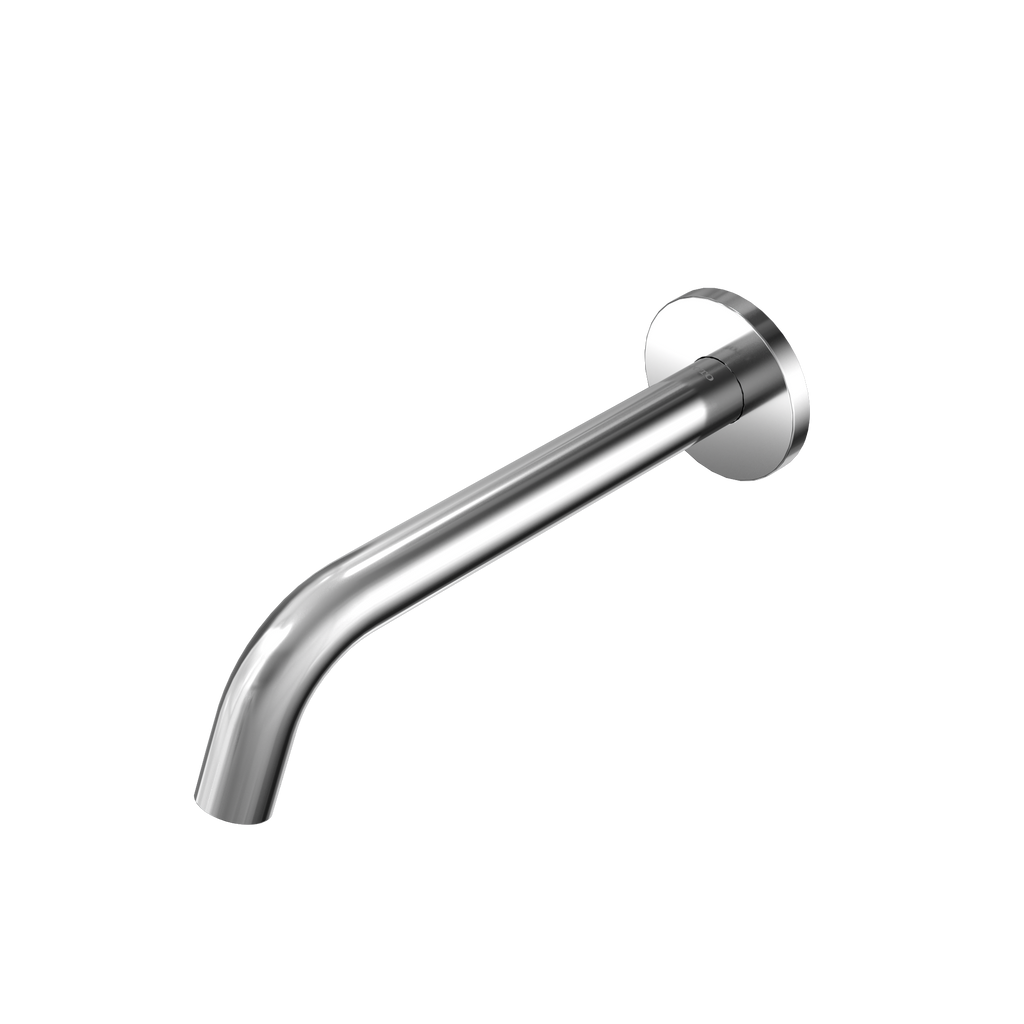

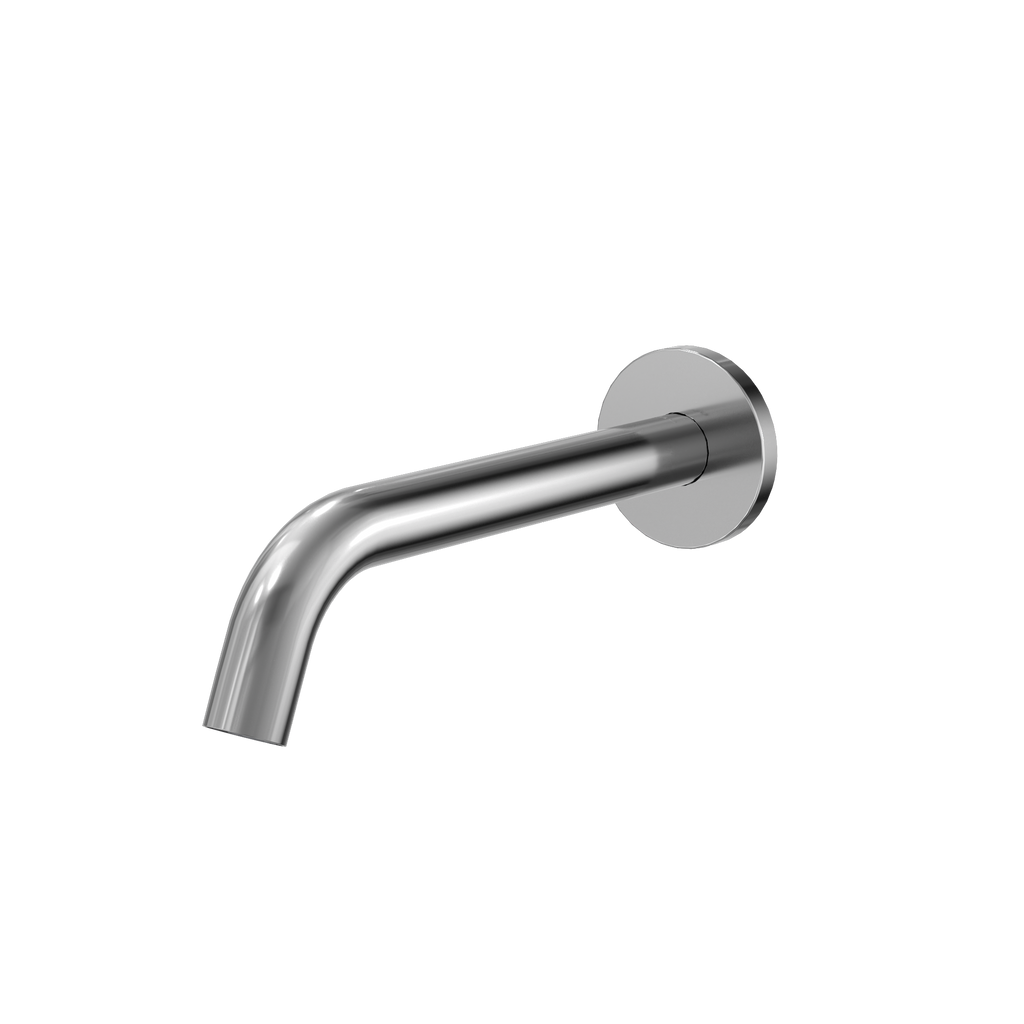

TOTO Helix Wall-Mount AC Powered 0.5 GPM Touchless Bathroom Faucet with Mixing Valve, 20 Second Continuous Flow, Polished Chrome, Brass, T26L53AM#CP
The TOTO Helix Wall-Mount AC Powered 0.5 GPM Touchless Bathroom Faucet with Mixing Valve, 20 Second Continuous Flow is ideal for high-traffic spaces, providing an elegant water conservation solution. The sensor is strategically positioned underneath the spout head to accurately sense the hands for touchless use. The 0.5 GPM 20 second continuous flow faucet uses only 0.17 gallons per cycle and is CEC and CALGreen compliant. The water will flow continuously for 20 seconds, preventing water waste from the faucet being left running. The included mixing valve allows for water temperature adjustment. Easy installation and low-cost maintenance makes this faucet practical, sustainable, and durable. The ECO CAP aerating technology balances the amount of air bubbles in the water for a comfortable experience while saving water. Included items: spout, operating controller, mixing valve, and mounting hardware included. Purchased separately: water supply line for G 1/2 inch connection. Requires 120V AC power supply.
This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects, and other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Please see our color disclaimer.
Features

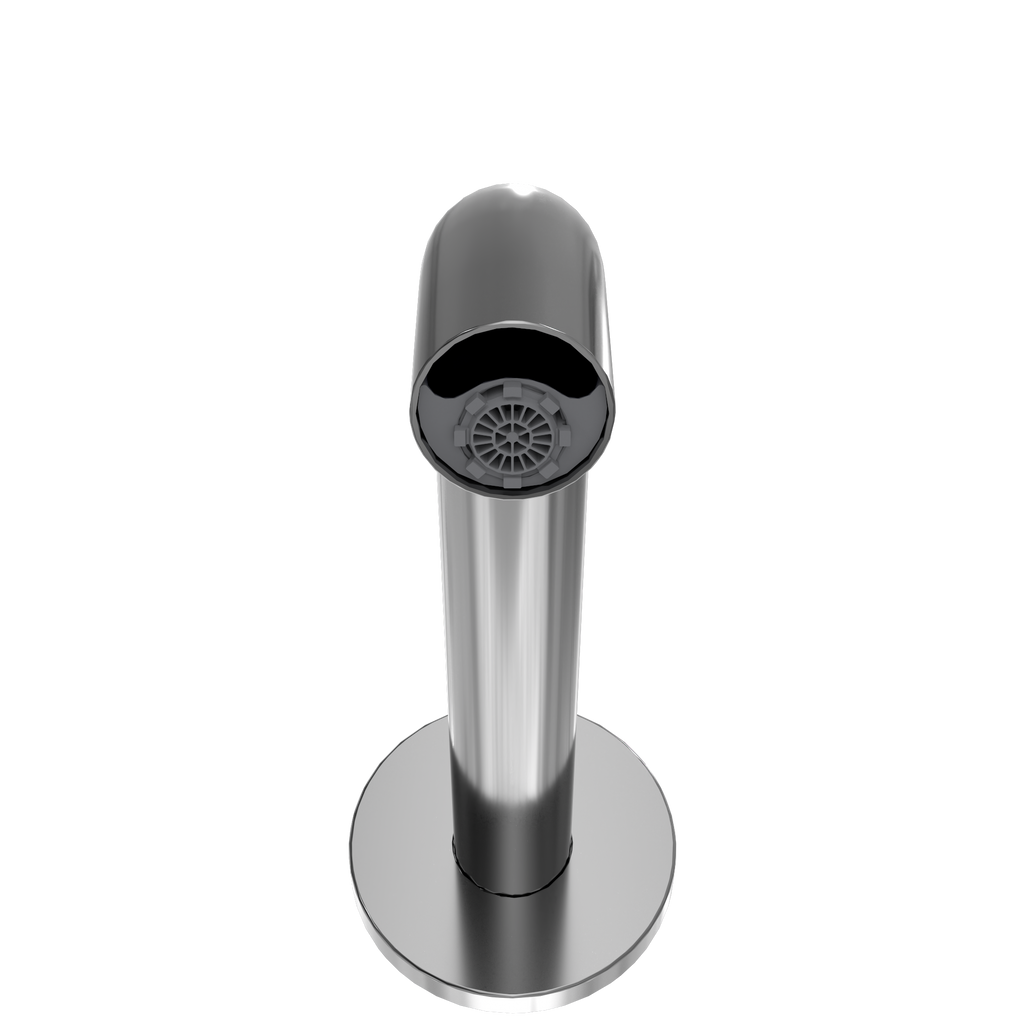

- WATER FLOWS EASILY WITHOUT SEARCHING FOR THE SENSOR - The sensor is strategically positioned underneath the spout head to accurately sense the hands for touchless use. The sensor is concealed within the spout body for a beautiful aesthetic.
- STOPS AUTOMATICALLY TO PREVENT WATER WASTE - The water will flow continuously for 20 seconds before automatically stopping. When hands are present, the water will flow. When hands are removed, the water will flow for 20 seconds before stopping.
- EXCELLENCE IN WATER SAVINGS - The 0.5 GPM 20 second continuous flow faucet uses only 0.17 gallons per cycle and is CEC and CALGreen compliant. The ECO CAP aerating technology balances the amount of air bubbles in the water for a comfortable experience while saving water.
- SET YOUR PREFERRED TEMPERATURE - The included mixing valve allows for simple water temperature adjustment.
- EASY INSTALLATION AND LOW-COST MAINTENANCE - Included items: spout, operating controller, mixing valve, and mounting hardware included. Purchased separately: water supply line for G 1/2 inch connection.
Details
| ADA Compliant?: | Yes |
|---|---|
| Box Height: | 5.04" |
| Box Length: | 16.22" |
| Box Weight: | 2.68 lb(s) |
| Box Width: | 10.83" |
| CALGreen Compliant: | Yes |
| CEC Compliant: | Yes |
| Category: | Commercial Faucets |
| Color: | Polished Chrome |
| Connection Size and Type: | G 1/2 |
| Country of Origin: | Japan |
| Flow Rate: | 0.5 GPM |
| Installation Type: | Wall-Mount |
| Item Height: | 2.8125" |
| Item Length (Front to Back): | 9.5" |
| Item Weight: | 5.974109 lb(s) |
| Item Width (Side to Side): | 2.8125" |
| Material: | Brass |
| Mounting Type: | Wall-Mount |
| Number of Faucet Holes: | 1 |
| SKU: | T26L53AM#CP |
| Spout Reach: | 8.875" |
| Valve Included: | Yes |
Warranty
Manufacturer Three Year Limited
Installation Instructions
Product Specifications (PDF)
