TOTO Helix ECOPOWER 0.35 GPM Electronic Touchless Sensor Bathroom Faucet with Thermostatic Mixing Valve, Polished Chrome, Brass, TEL113-D20ET#CP
At TOTO, we design simple, brilliant, and elegant solutions for basic human needs where every innovation and detail is designed with you in mind. Were committed to improving peoples lives and for over a century, weve made products that do just that. The ECOPOWER Helix spout has a sleek and smooth body construction with a short arching neck to accommodate many users. This ECOPOWER system creates cost effective solutions by harnessing the energy of running water to power itself, both creating and storing power for operation. Although this faucet system is ideal for high-traffic commercial spaces, it is highly efficient and can replenish power stores with no minimum daily usage. The durable, chrome plated spout features a micro-sensor positioned underneath the spout head that accurately detects the user. This self-adjusting sensor ensures a quick, smooth, and consistent water distribution, and the on-demand system means that water flows only when needed and cannot be accidentally left running. The 0.35 GPM faucet achieves a 0.11 GPC, 20 second on-demand flow rate that is CEC and CALGreen compliant. The included thermostatic mixing valve allows for fixed water temperature adjustment and prevents scalding. Easy installation, with no wiring and low-cost maintenance, makes this faucet practical, sustainable, and durable. TOTO creates a clean, relaxed, and refreshing lifestyle by designing for every part of the bathroom and striving to bring more to every moment you spend there. Included items: Helix spout, controller valve, and thermostatic mixing valve. Purchase separately: water supply line for G1/2 connection
This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects, and other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Please see our color disclaimer.
Features
- Seamless and smooth construction with a short arching neck design
- Electronic touchless sensor faucet

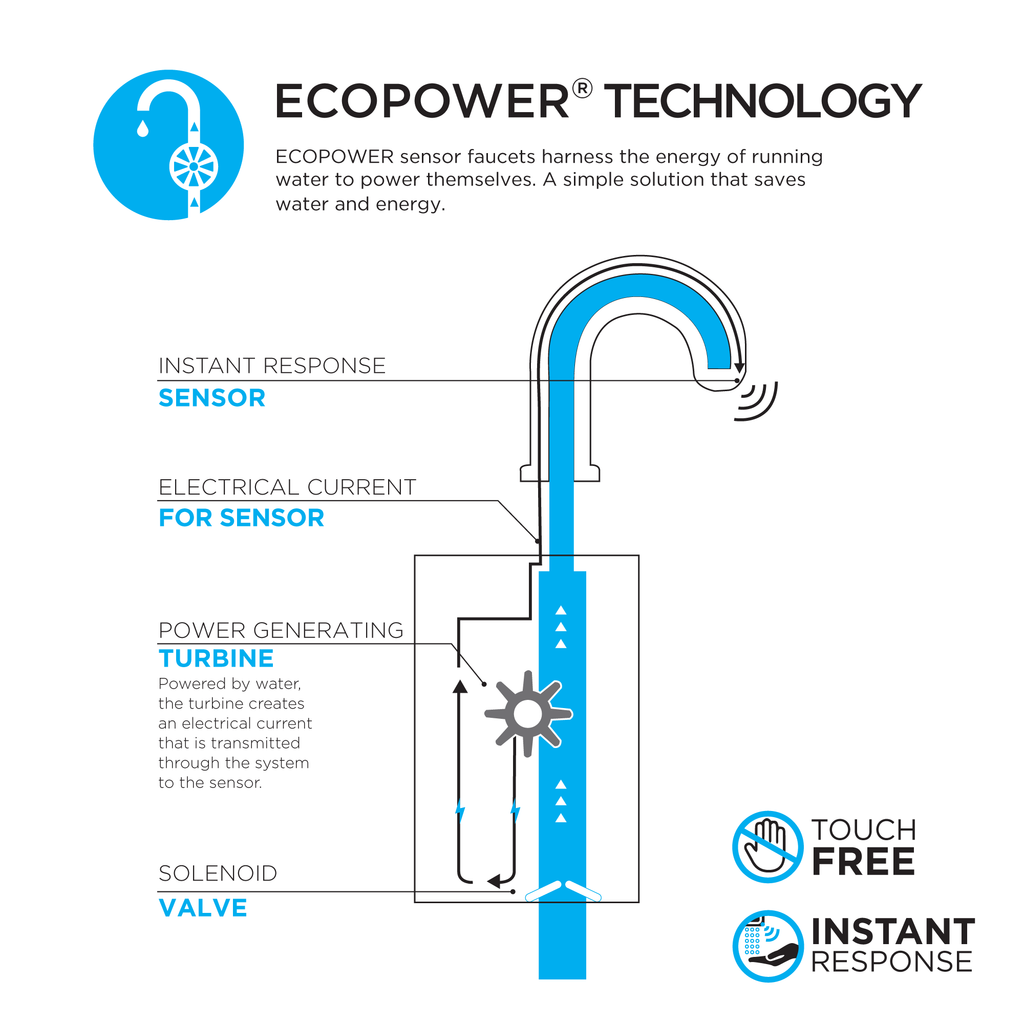

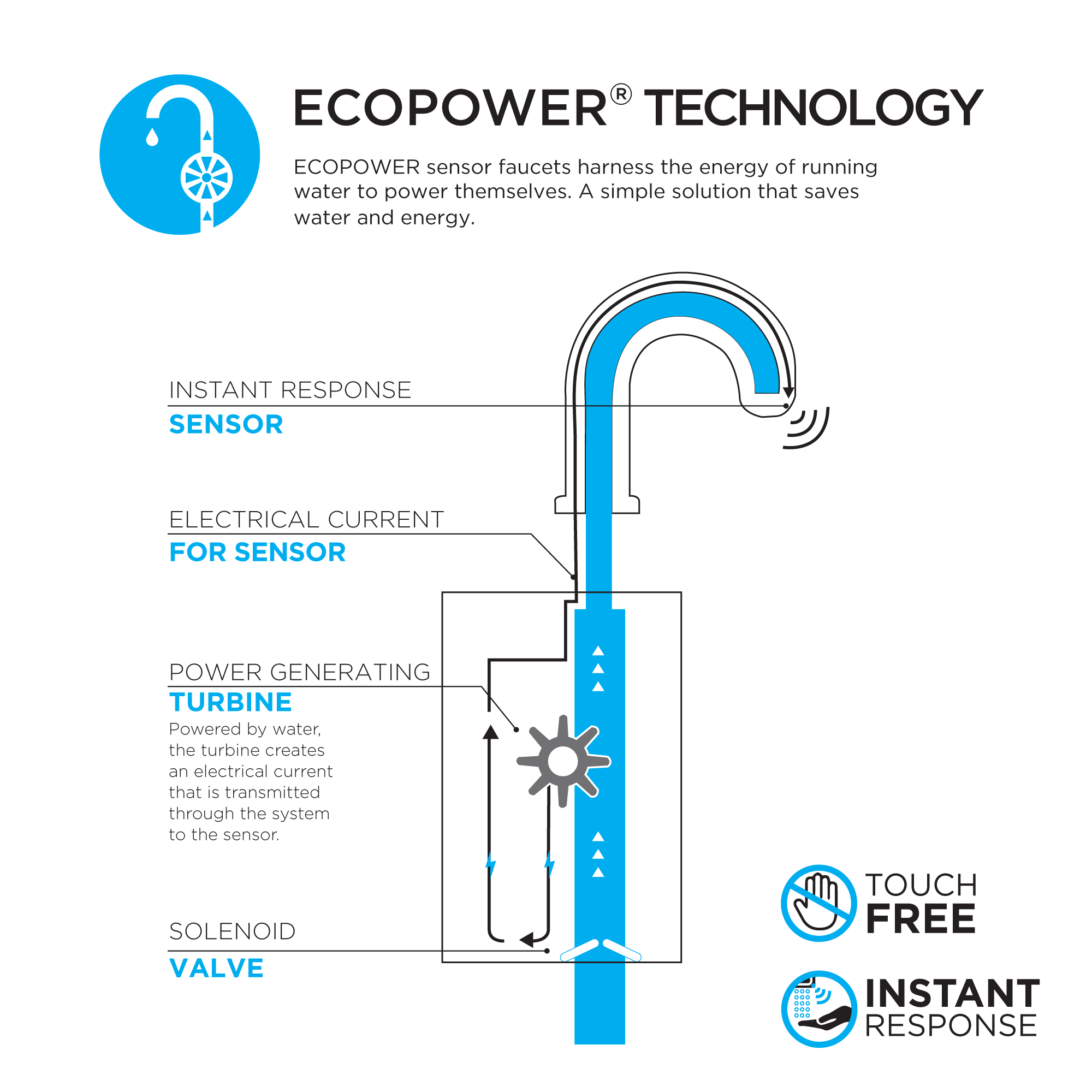

- Operated by ECOPOWER self-generating hydro-powered system
- Easy, single-hole wall-mount installation with no wiring, and low-cost maintenance
- Vandal resistant aerator housing
- Durable chrome plated spout body
- Equipped with a 0.35 GPM water-saving flow rate
- CEC and CALGreen compliant
- ADA compliant
- Strategic location of sensor at tip of spout for instant response time
- Manual mixing valve allows for conventional temperature adjustment
- 0.11 GPC with 20 Seconds on-demand water flow

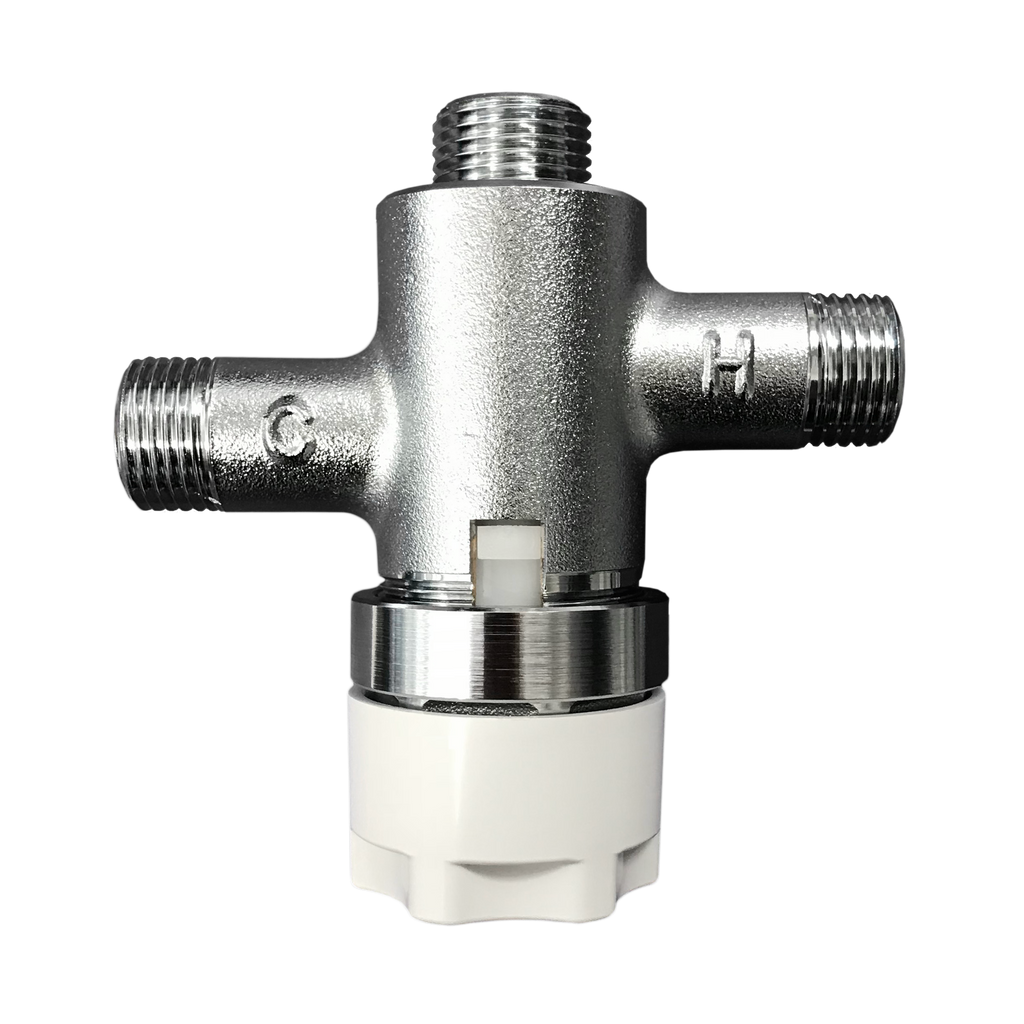

- Thermostatic mixing valve allows for fixed water temperature adjustment and prevents scalding
- Included items: ECOPOWER spout body, controller TELC103-D10E, and thermostatic mixing valve TLT20
Details
ADA Compliant?: | Yes |
---|---|
Battery Included: | Yes |
Battery Type: | Lithium Ion |
Box Height: | 3.375" |
Box Length: | 10.75" |
Box Weight: | 1.8 lb(s) |
Box Width: | 7.75" |
CALGreen Compliant: | Yes |
CEC Compliant: | Yes |
Category: | Commercial Faucets |
Color: | Polished Chrome |
Connection Size and Type: | G 1/2 |
Country of Origin: | China |
Flow Rate: | 0.35 GPM |
Installation Type: | Deck-Mount |
Item Height: | 6.75" |
Item Length (Front to Back): | 6.3125" |
Item Weight: | 1.8 lb(s) |
Item Width (Side to Side): | 2" |
Material: | Brass |
Max Deck Thickness: | 2 |
Mounting Type: | Deck-Mount |
NMFC Code: | 158400 sub 1 |
Number of Faucet Holes: | 1 |
SKU: | TEL113-D20ET#CP |
Spout Height: | 3.75" |
Spout Reach: | 4.875" |
Valve Included: | Yes |
Warranty
Manufacturer Three Year Limited
Toto Warranty Details (PDF)
Manual(s)
Manual 1 (PDF)
Installation Instructions
Installation Instructions (PDF)
Product Specifications (PDF)
