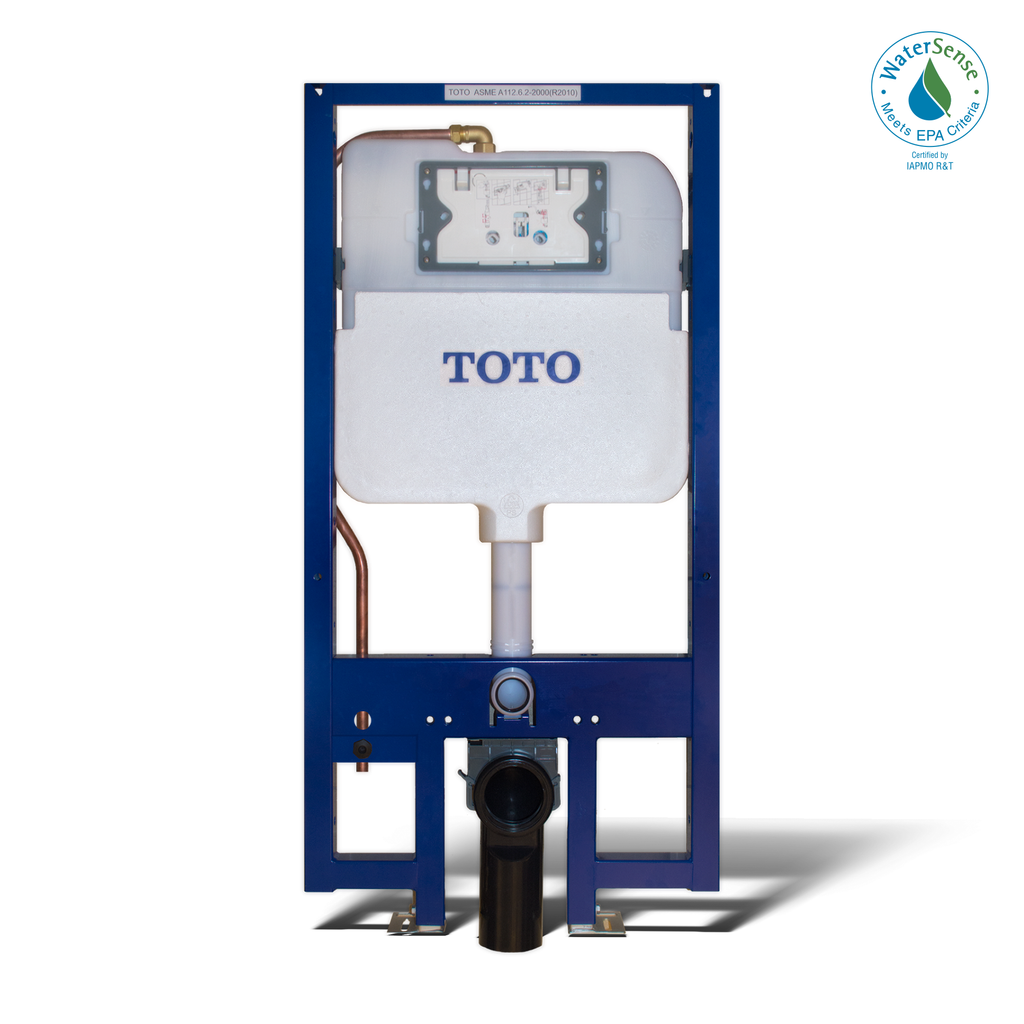

TOTO DUOFIT In-Wall Dual Flush 1.28 and 0.9 GPF Tank System, Copper Supply Line, Steel|Plastic, WT173M
The TOTO DuoFit In-Wall Tank Dual-Flush System with Copper Supply takes up less floor space, giving your bathroom a more open feel and making it easier to clean. This modern design uses TOTO's Dual-Max flushing system, allowing you to proactively conserve water with a full or light flush option. Choose between a 0.9 GPF rinse or 1.28 GPF for tougher jobs. The DUOFIT harness allows you to select a mounting height of 15 to 19 inches. This provides the opportunity for you to establish a comfortable bowl height for a wide array of individuals. The in-wall unit can support up to 880lbs when installed properly. The kit arrives ready to be installed within a 2 x 6 stud setting with a 2" x 6" polyethylene waste outlet. If you require installation within a 2 x 4 setting, you will need to additionally purchase TOTOs 2 x 4 PVC outlet kit (THU343). To enhance the installation with a WASHLET bidet seat, there is a pre-attached copper supply built into the system. The separately sold TOTO WASHLET Connection kit will complete your WASHLET install (THU805). This DUOFIT requires the toilet bowl and push plate to be purchased separately.
This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects, and other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Please see our color disclaimer.
Features
- High-Efficiency DYNAMAX TORNADO dual flushing system
- Dual-Max flush promotes water conservation with a 0.9 or 1.28 GPF option
- Copper supply line
- Saves up to 9" of floor space compared to standard floor-mounted toilet
- Adjustable 15"-19" mounting height
- Supports up to 880 pounds
- One-piece blow molded polyethylene tank to prevent leaks
- Pre-plumbed for optional WASHLET connection
Details
| Box Height: | 6.0" |
|---|---|
| Box Length: | 47.5" |
| Box Weight: | 43.0 lb(s) |
| Box Width: | 26.0" |
| Category: | Wall-Hung Toilets |
| Country of Origin: | China |
| Flush Lever Location: | Wall Push Button |
| Installation Type: | Wall Mount/Back Outlet |
| Item Height: | 50.375" |
| Item Length (Front to Back): | 3.5" |
| Item Weight: | 38.0 lb(s) |
| Item Width (Side to Side): | 25.4" |
| Material: | Steel|Plastic |
| Mounting Type: | Wall Mount/Back Outlet |
| SKU: | WT173M |
| Water Consumption (GPF): | 1.28|0.9 |
| WaterSense Compliant?: | Yes |
Warranty
Manufacturer One Year Limited
