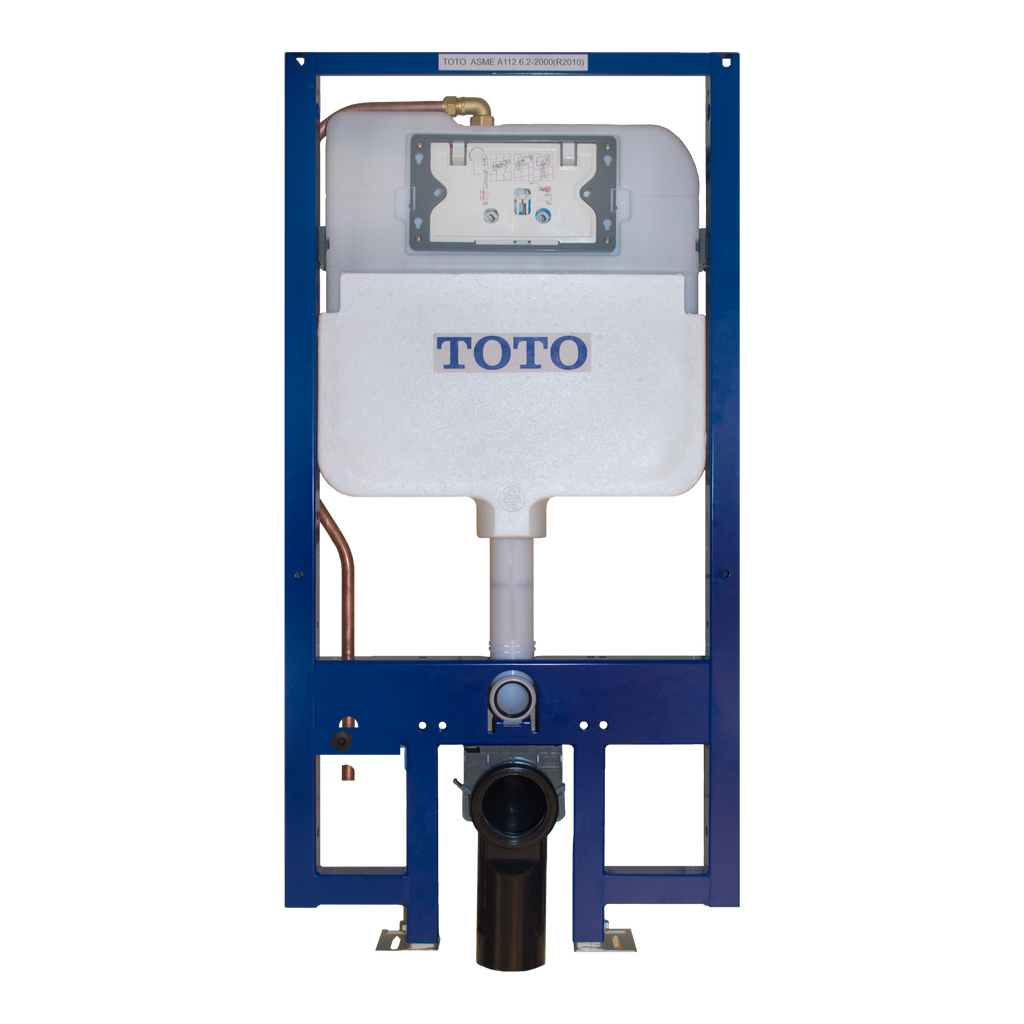

TOTO DuoFit In-Wall Dual Flush 0.9 and 1.6 GPF Tank System Copper Supply Line, Steel, WT171M
The TOTO DuoFit in-wall 0.9 and 1.6 GPF Dual Flush Tank System with Copper Supply Line provides you with the opportunity to save up to 9 inches of floor space within your bathroom. The DuoFit provides a dual flush option with TOTOs Dual-Max. Dual-Max makes conservation easy, allowing you to choose the right amount of flush for the required job. You can select between a 0.9 or a 1.6 gallons per flush with a push of a button. The DuoFit harness allows you to select a mounting height of 15 to 19 inches. This provides the opportunity for you to establish a comfortable bowl height for a wide array of individuals. The in-wall unit can support up to 880lbs when installed properly. The kit arrives ready to be installed within a 2 x 6 stud setting. If you require installation within a 2 x 4 setting, you will need to additionally purchase TOTOs 2 x 4 PVC outlet kit (THU343). This comes with a copper supply and a 2 x 6 polyethylene waste outlet. If you want to enhance the toilet you choose with a WASHLET bidet seat, there is a pre-attached copper supply built into the system. You will additionally have to purchase a TOTO WASHLET Connection Kit to complete your WASHLET install (THU468). This DuoFit requires the toilet bowl and flush push plate to be purchased separately. Compatible wall hung toilet bowls: CT486FG, CT418F, and CT418FG
This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects, and other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Please see our color disclaimer.
Features
- Save up to 9" in Bathroom Space
- 0.9 or 1.6 GPF dual flushing system
- Insulated polyethylene tank to prevent leaks and sweating
- Adjustable 15"-19" mounting height
- Copper supply line
- Pre plumbed WASHLET connection
- Supports up to 880lbs
- 2" x 6" Polyethylene outlet included
- Included: In-Wall tank system with copper supply line and 2" x 6" Polyethylene outlet
- Purchase separately: compatible toilet bowl: CT486FG or CT418F(G), push plate, and toilet bowl.
Details
| Box Height: | 5.75" |
|---|---|
| Box Length: | 47" |
| Box Weight: | 44 lb(s) |
| Box Width: | 26.5" |
| Category: | Wall-Hung Toilets |
| Country of Origin: | China |
| Flush Lever Location: | Center |
| Installation Type: | Wall Mount/Back Outlet |
| Item Height: | 50.375" |
| Item Length (Front to Back): | 5.5" |
| Item Weight: | 44 lb(s) |
| Item Width (Side to Side): | 25.4" |
| Material: | Steel |
| Mounting Type: | Wall Mount/Back Outlet |
| SKU: | WT171M |
| Water Consumption (GPF): | 0.9|1.6 |
| WaterSense Compliant?: | Yes |
Warranty
Manufacturer One Year Limited
Toto Warranty Details (PDF)
Manual(s)
Manual 1 (PDF)
Installation Instructions
Installation Instructions (PDF)
Product Specifications (PDF)
