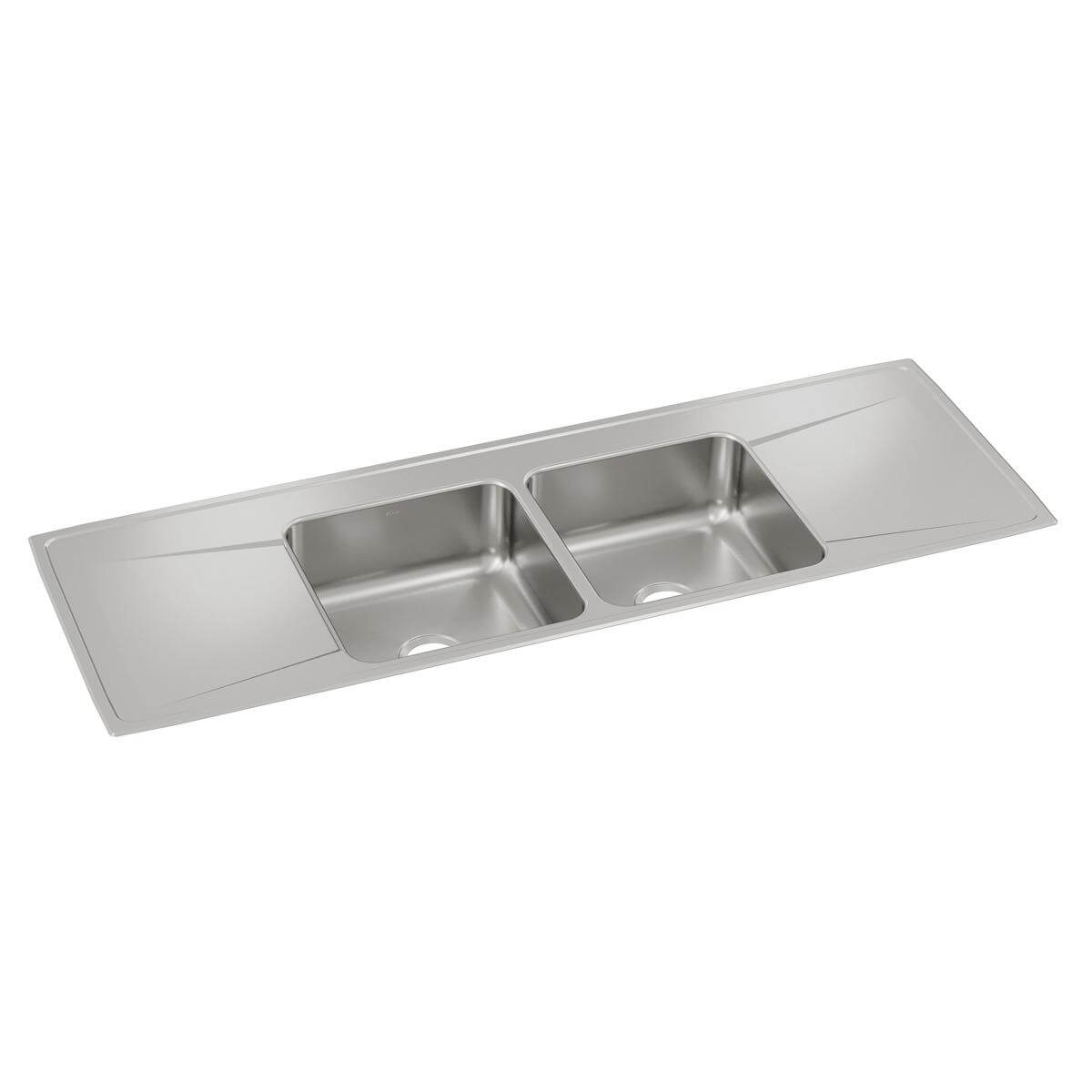

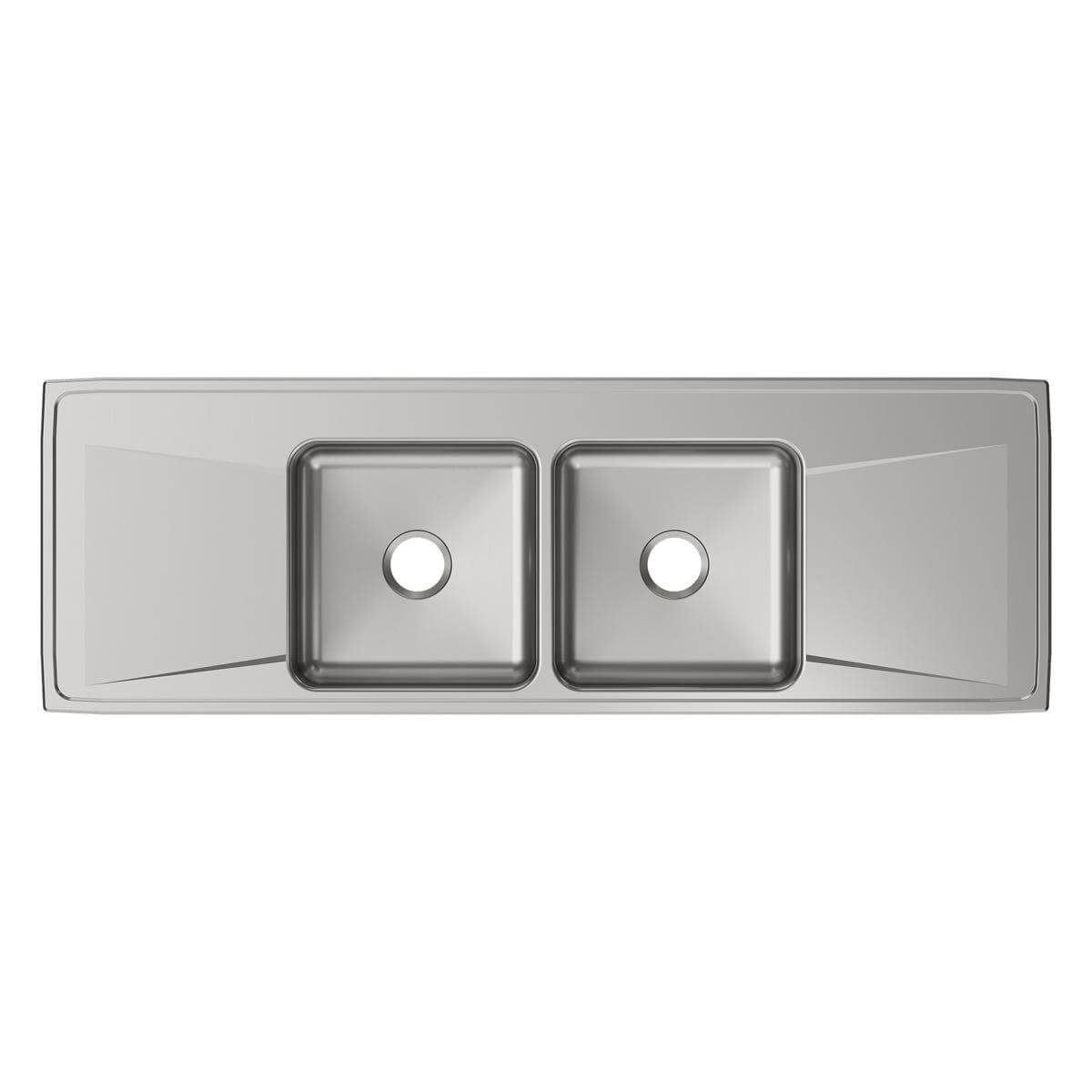

Elkay Lustertone Classic 66" Drop In/Topmount Stainless Steel Kitchen Sink, 50/50 Double Bowl, Lustrous Satin, 18 Gauge, Includes Drainboard, ILR6622DD0
An Elkay Lustertone Classic stainless steel sink looks as great on day 3,000 as it does on day one. The rich, uniform grain is scratch resistant for heavy-duty use, whether it's a kitchen sink or a prep, bar, laundry or commercial sink. Light scratches, which occur with everyday use, naturally blend into the finish of this durable sink with time. Deeper scratches are repairable with an Elkay stainless steel restoration kit. Available in ADA depths.
Please see our color disclaimer.
Features

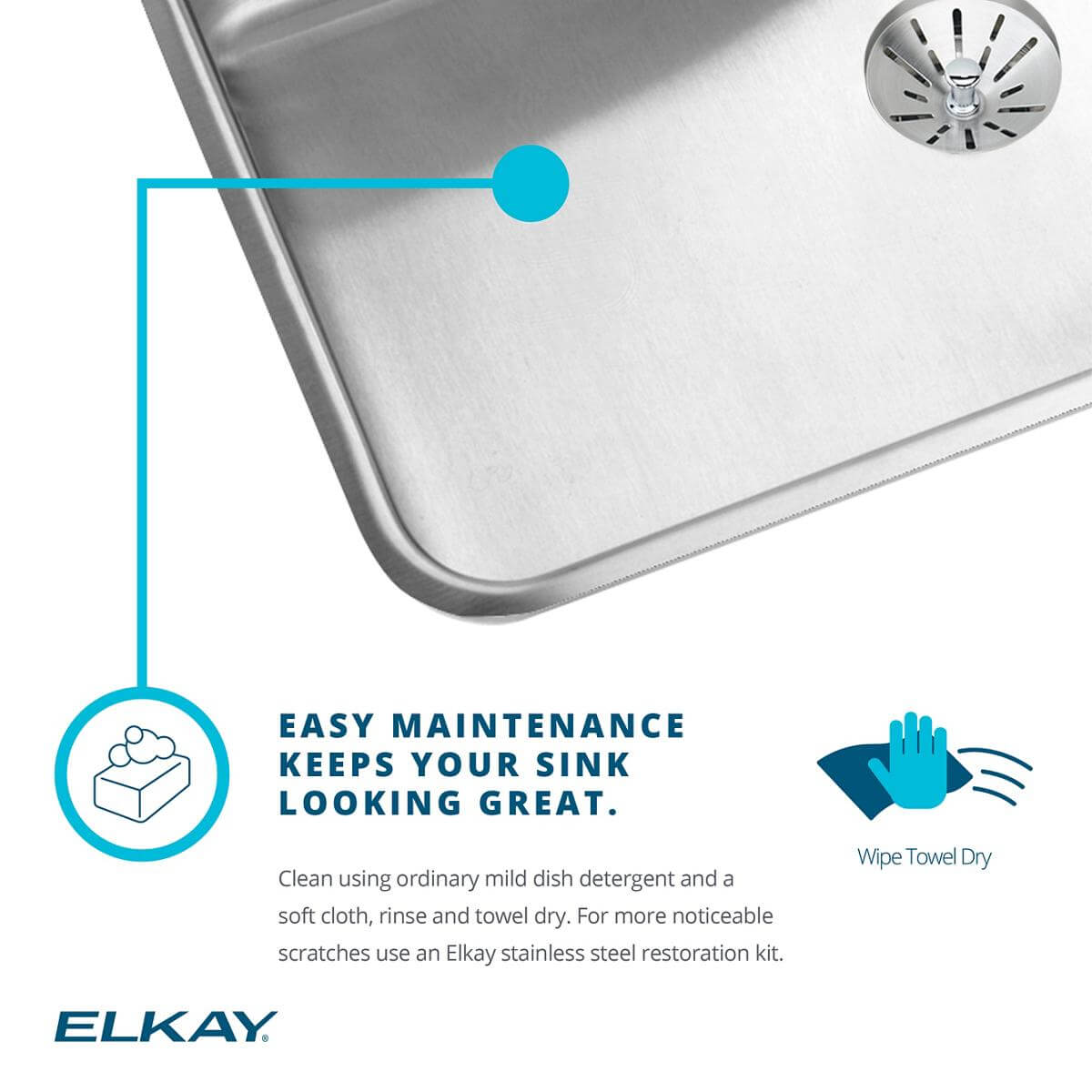

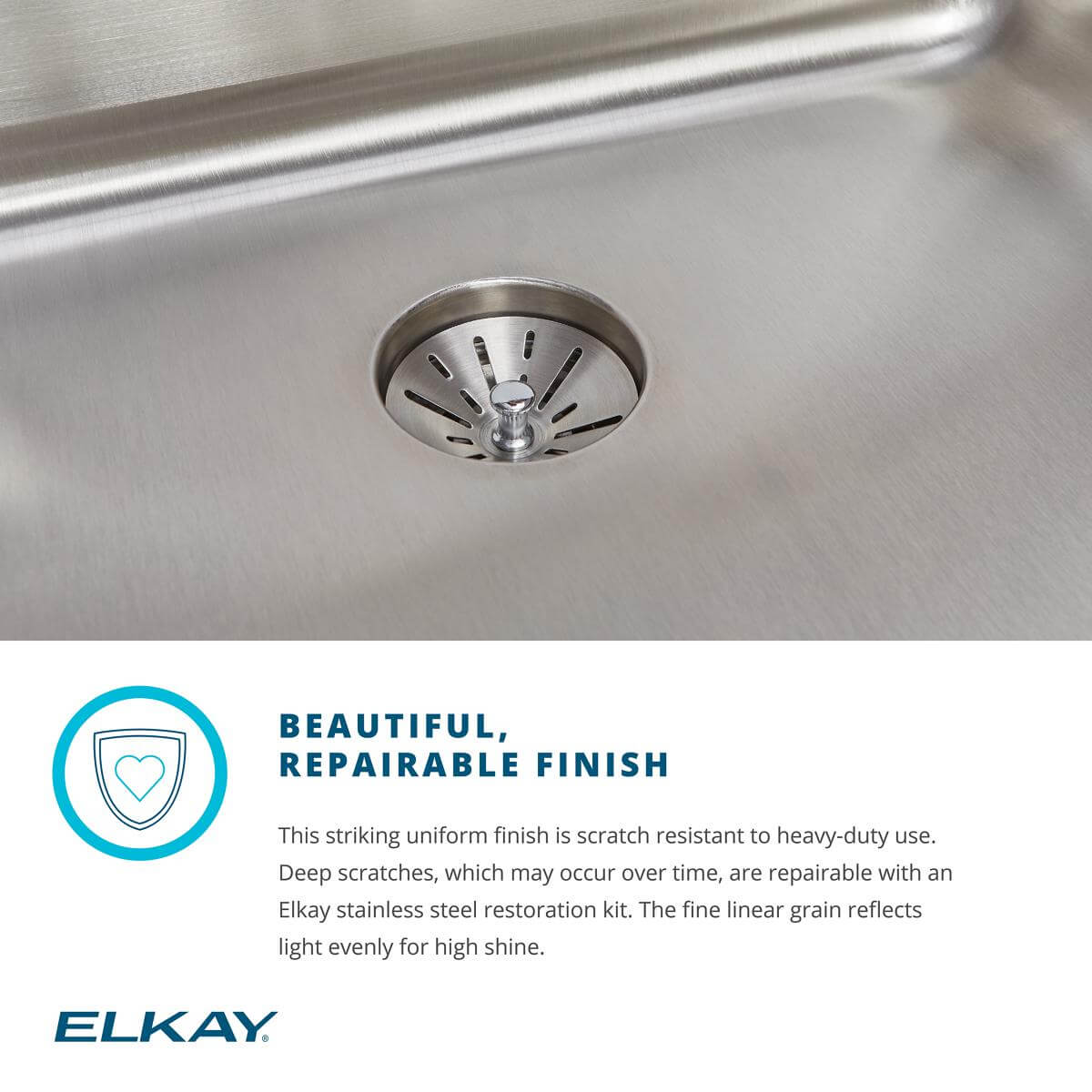

- REPAIRABLE FINISH: Finish is scratch resistant to heavy-duty use. Deep scratches are repairable. Lustrous grain reflects light evenly for high shine
- DROP-IN INSTALLATION: Sink is designed for drop-in installation to make the sink a focal point of your room

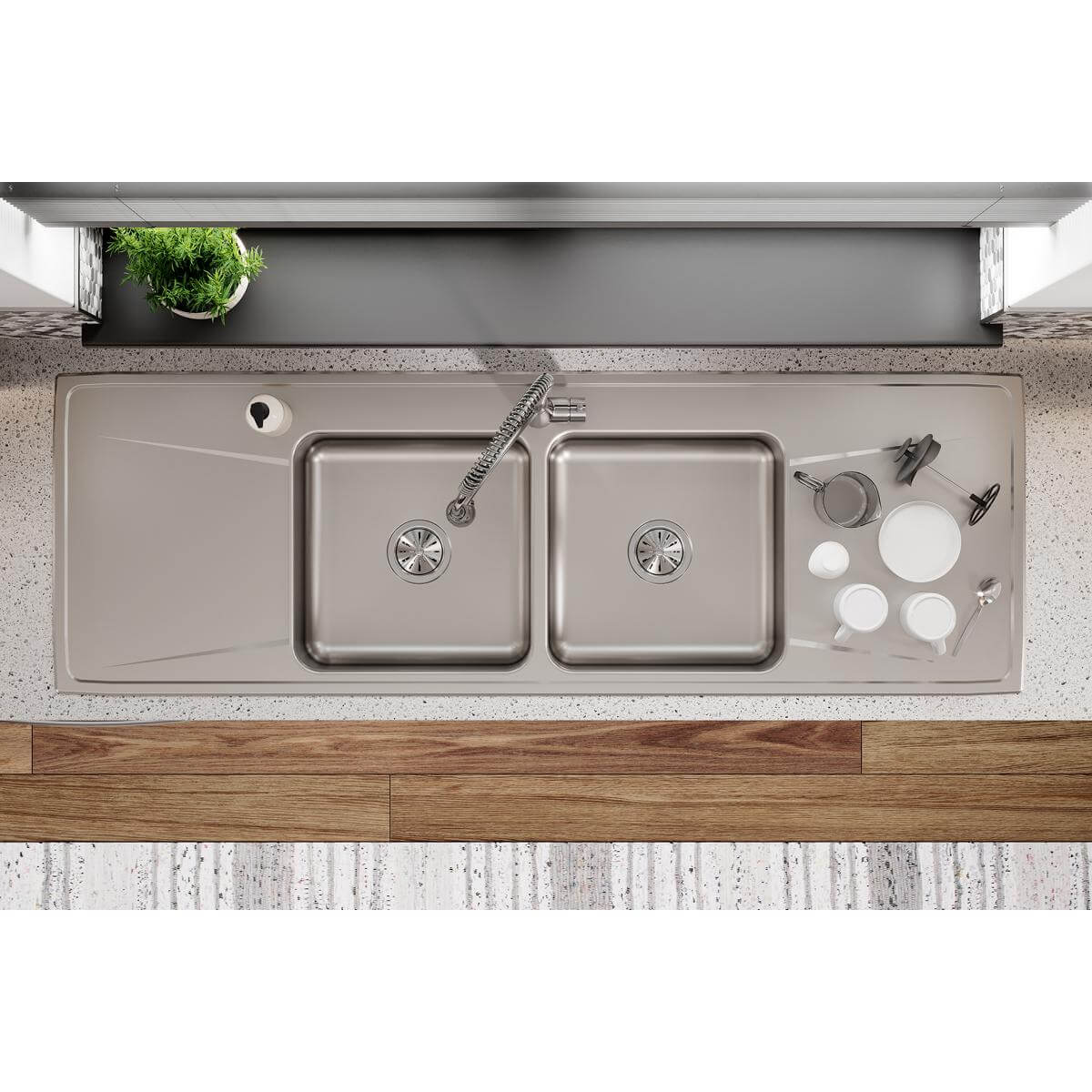

- BUILT-IN DRAINBOARD: Keep your countertop clean with a drainboard that channels water into the sink; use to hold hot pots, meal prep and dry dishes.
- DOUBLE BOWLS OF EQUAL SIZE: Conveniently use bowls independently for washing, soaking, rinsing, drying and other household tasks.

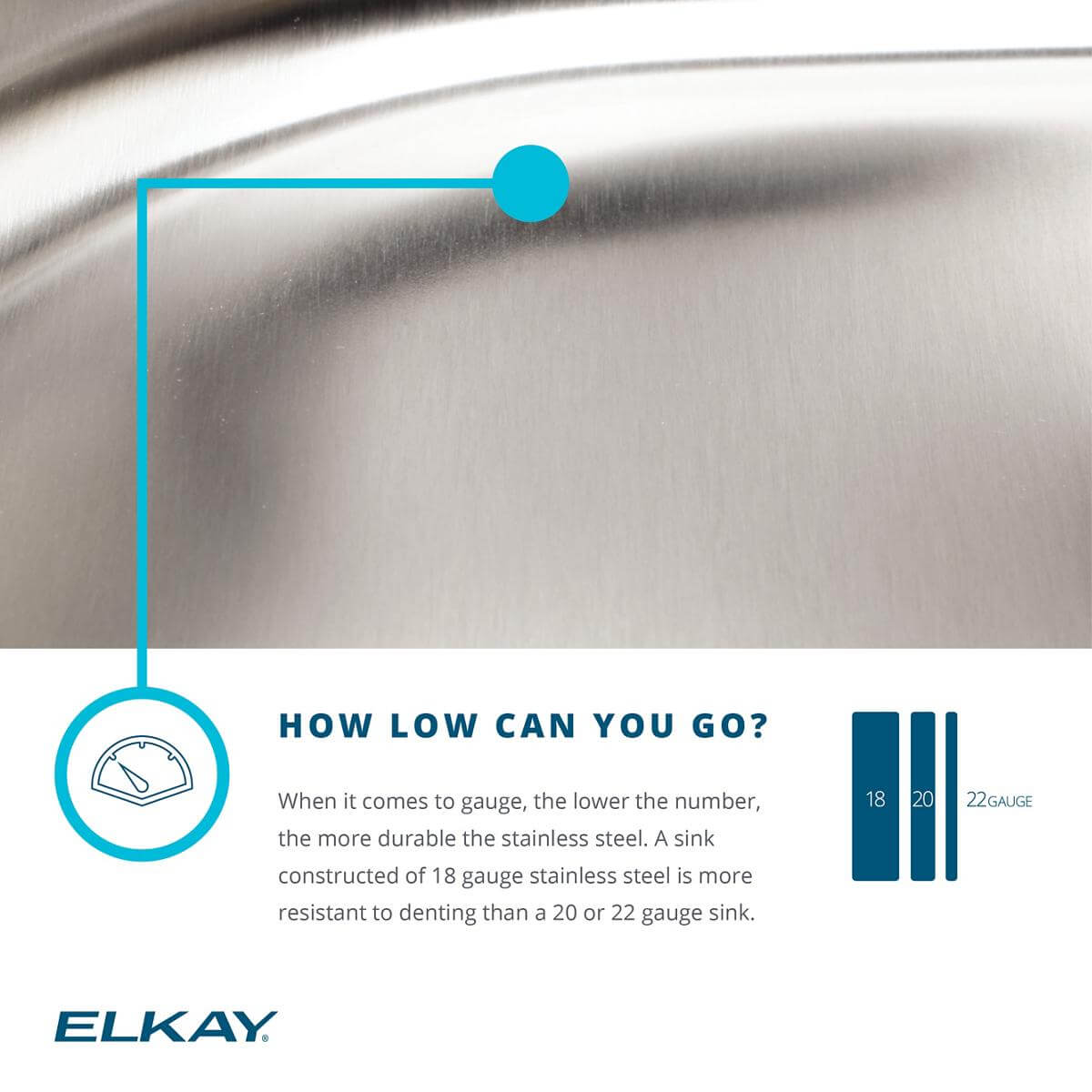

- 18-GAUGE STAINLESS STEEL: Highest quality 18-gauge thickness and Type 304 stainless steel for lasting durability, performance and lustrous beauty
- QUIET: Sound-deadening pad(s) minimizes sound and vibration for a quieter time at the sink

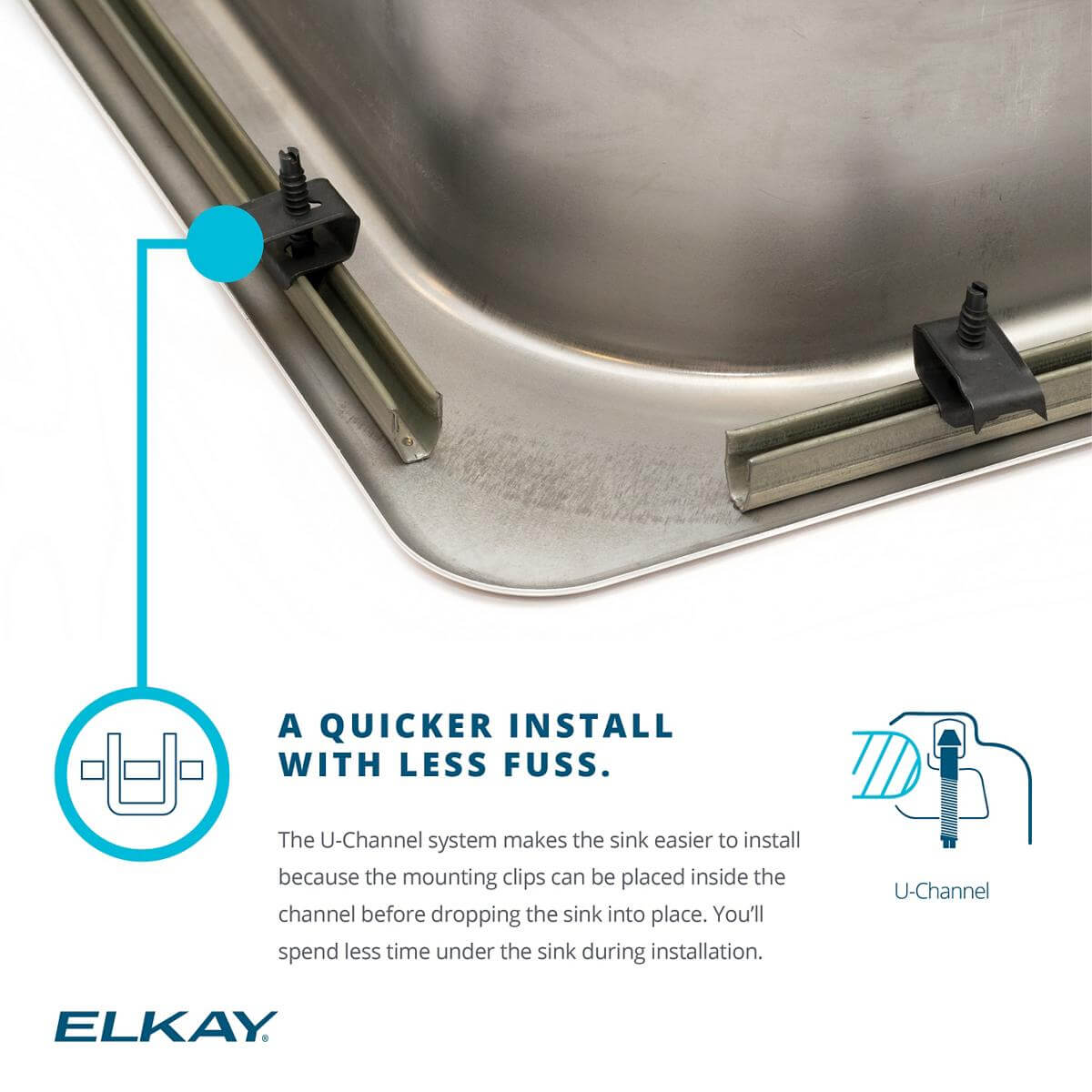

- U-CHANNEL INSTALLATION: Mounting clips placed inside the channel before installation mean less time under the sink for an easier install
- LARGE CAPACITY: Straight sidewalls give the sink a flat bottom and offer more usable space for stacking, soaking and washing dishes; easy to clean.
- MADE IN THE USA: This Elkay product is proudly made in the USA
- DRAIN OPENING: Sink drain opening measures 3-1/2"
- BASE CABINET: Recommended Minimum Base Cabinet Size: 69"
- California residents see Prop 65 Warnings.
Details
Bowl Shape(s): | Bowl 2: Square, Bowl 1: Rectangle |
---|---|
Bowl Split: | 50/50 |
Box Height: | 10.51" |
Box Length: | 73.72" |
Box Weight: | 50 lb(s) |
Box Width: | 26.28" |
Code / Standard Compliance: | NPCC |
Collection: | Lustertone Classic |
Color: | Lustrous Satin |
Country of Origin: | USA |
Cutout Dimension: | 65-3/8" x 21-3/8" (1661mm x 543mm) with 1-1/2" (38mm) corner radius |
Drain Included?: | Yes |
Drain Size: | Bowl 1: 3.5", Bowl 2: 3.5" |
Finish: | Lustrous Satin |
Freight Class (LTL Only): | 250 |
Gallons to Overflow: | 3.9 |
Gauge: | 18 |
Harmonized System Code: | 7324100010 |
Inner Depth: | 7.625" |
Inside Bowl Dimensions: | Bowl 1: 16" x 16" x 7.5", Bowl 2: 16" x 16" x 7.5" |
Installation Type: | Drop In/Topmount |
Item Height: | 7.625" |
Item Length (Front to Back): | 22" |
Item Weight: | 30 lb(s) |
Item Width (Side to Side): | 66" |
Made In USA?: | Yes |
Material: | Stainless Steel |
Minimum Cabinet Size: | 69" |
Mounting Hardware Included: | Part # 64090008 included for countertops up to 3/4" (19mm) thick (12 qty) |
Number of Bowls: | 2 |
Room: | Kitchen |
SKU: | ILR6622DD0 |
Sound Deadening: | Bottom only pads |
Style: | Traditional |
cUPC Certified?: | Yes |
