Elkay Lustertone Classic 17" Drop In/Topmount Stainless Steel ADA Kitchen Sink, Lustrous Satin, 2 Faucet Holes, LRAD1720502
An Elkay Lustertone Classic stainless steel sink looks as great on day 3,000 as it does on day one. The rich, uniform grain is scratch resistant for heavy-duty use, whether it's a kitchen sink or a prep, bar, laundry or commercial sink. Light scratches, which occur with everyday use, naturally blend into the finish of this durable sink with time. Deeper scratches are repairable with an Elkay stainless steel restoration kit. Available in ADA depths.
Available In:
Please see our color disclaimer.
Features
- ADA COMPLIANT: Product is ADA compliant when properly installed
- FORGIVING FINISH: Finish is scratch resistant, standing up to everyday use. Deep scratches are repairable. Grain radiates light for a luminous look
- DROP-IN INSTALLATION: Sink is installed above the countertop, an ideal choice if you are not replacing the counter; has a beautifully finished rim
- SINGLE BOWL: Bowl gives you uninterrupted space for washing and stacking dishes or other household tasks
- 18-GAUGE STAINLESS STEEL: Highest quality 18-gauge thickness and Type 304 stainless steel for lasting durability, performance and lustrous beauty
- Sound Guard TECHNOLOGY: Large pads enhance sound-deadening performance for a quieter time at the sink

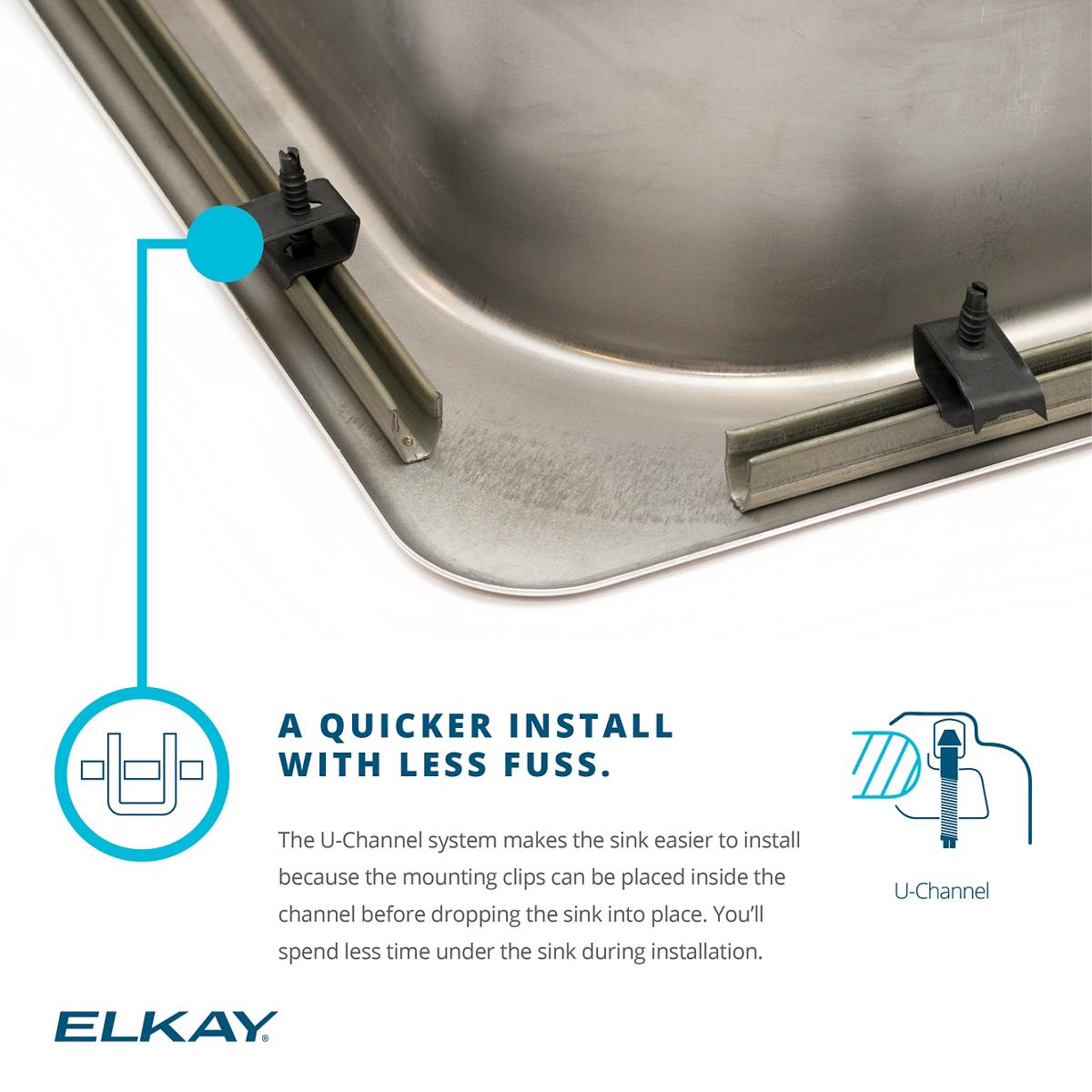

- U-CHANNEL INSTALLATION: Mounting clips placed inside the channel before installation mean less time under the sink for an easier install
- OFFSET DRAIN: Drain placement provides more usable space on the bottom of the sink and in the cabinet below
- MADE IN THE USA: This Elkay product is proudly made in the USA
- DRAIN OPENING: Sink drain opening measures 3-1/2"
- BASE CABINET: Recommended Minimum Base Cabinet Size: 21"
- California residents see Prop 65 Warnings.
Details
ADA Compliant?: | Yes |
---|---|
Bowl Shape(s): | Rectangle |
Bowl Split: | Single |
Box Height: | 23.19" |
Box Length: | 23.31" |
Box Weight: | 12 lb(s) |
Box Width: | 8.94" |
Collection: | Lustertone Classic |
Color: | Lustrous Satin |
Country of Origin: | USA |
Cutout Dimension: | 16-3/8" x 19-3/8" (416mm x 492mm) with 1-1/2" (38mm) corner radius |
Drain Size: | 3.5 |
Finish: | Lustrous Satin |
Freight Class (LTL Only): | 250 |
Gauge: | 18 |
Harmonized System Code: | 7324100010 |
Inner Depth: | 5" |
Inside Bowl Dimensions: | 14" x 14" x 4.875" |
Installation Type: | Drop In/Topmount |
Item Height: | 5" |
Item Length (Front to Back): | 20" |
Item Weight: | 10.25 lb(s) |
Item Width (Side to Side): | 17" |
Made In USA?: | Yes |
Material: | Stainless Steel |
Minimum Cabinet Size: | 21" |
Mounting Hardware Included: | Part # 64090012 included for countertops up to 3/4" (19mm) thick |
Number of Bowls: | 1 |
Number of Faucet Holes: | 2 |
Room: | Kitchen |
SKU: | LRAD1720502 |
Shape: | Rectangle |
Sound Deadening: | Bottom only pads |
Style: | Traditional |
Warranty
Elkay Warranty Details (PDF)
Installation Instructions
Installation Instructions 1 (PDF)
Product Specifications (PDF)
Product Care
Elkay Product Care (PDF)
Video(s)
Product Video 1
Product Video 2
Product Video 3
