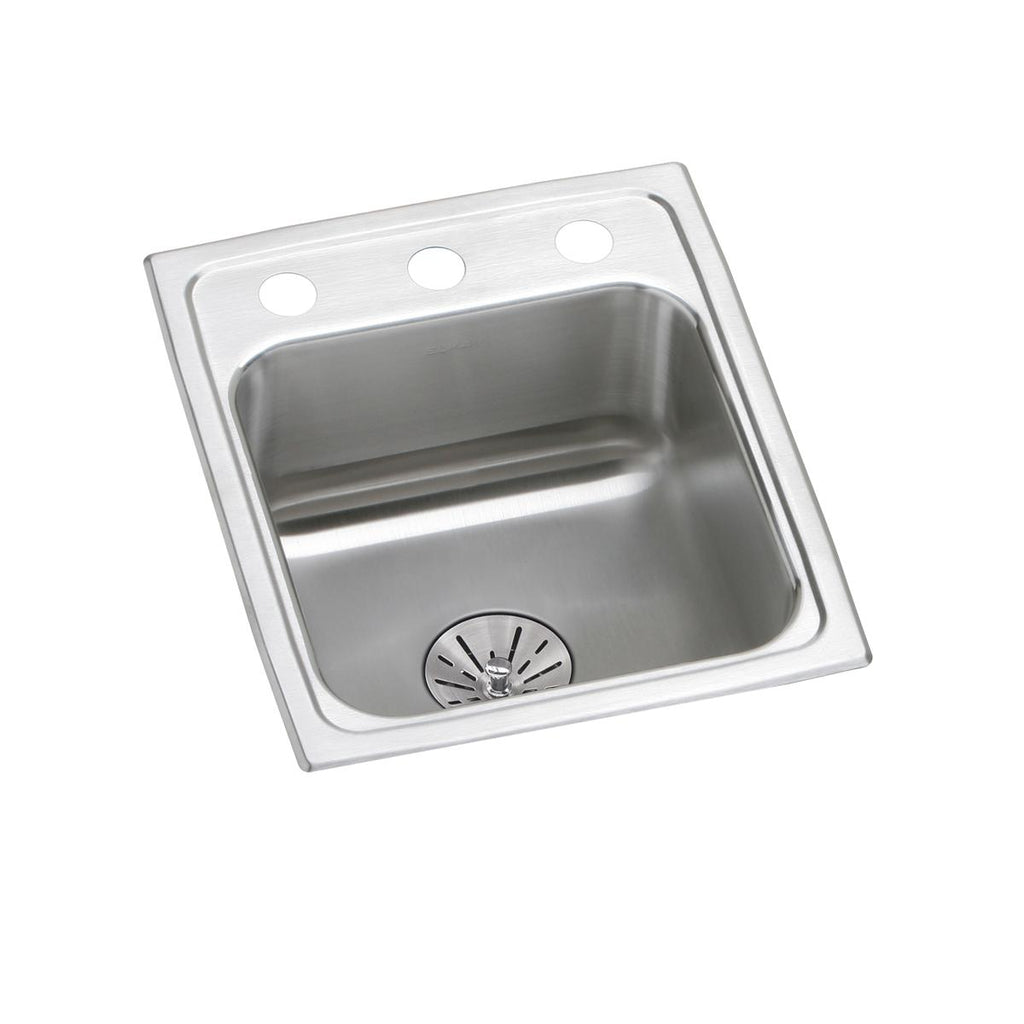

Elkay Lustertone Classic 13" Drop In/Topmount Stainless Steel ADA Kitchen Sink, Lustrous Satin, 1 Faucet Hole, Perfect Drain, LRAD131665PD1
An Elkay Lustertone Classic stainless steel sink looks as great on day 3,000 as it does on day one. The rich, uniform grain is scratch resistant for heavy-duty use, whether it's a kitchen sink or a prep, bar, laundry or commercial sink. Light scratches, which occur with everyday use, naturally blend into the finish of this durable sink with time. Deeper scratches are repairable with an Elkay stainless steel restoration kit. Available in ADA depths.
Available In:
Please see our color disclaimer.
Features
- ADA COMPLIANT: Product is ADA compliant when properly installed

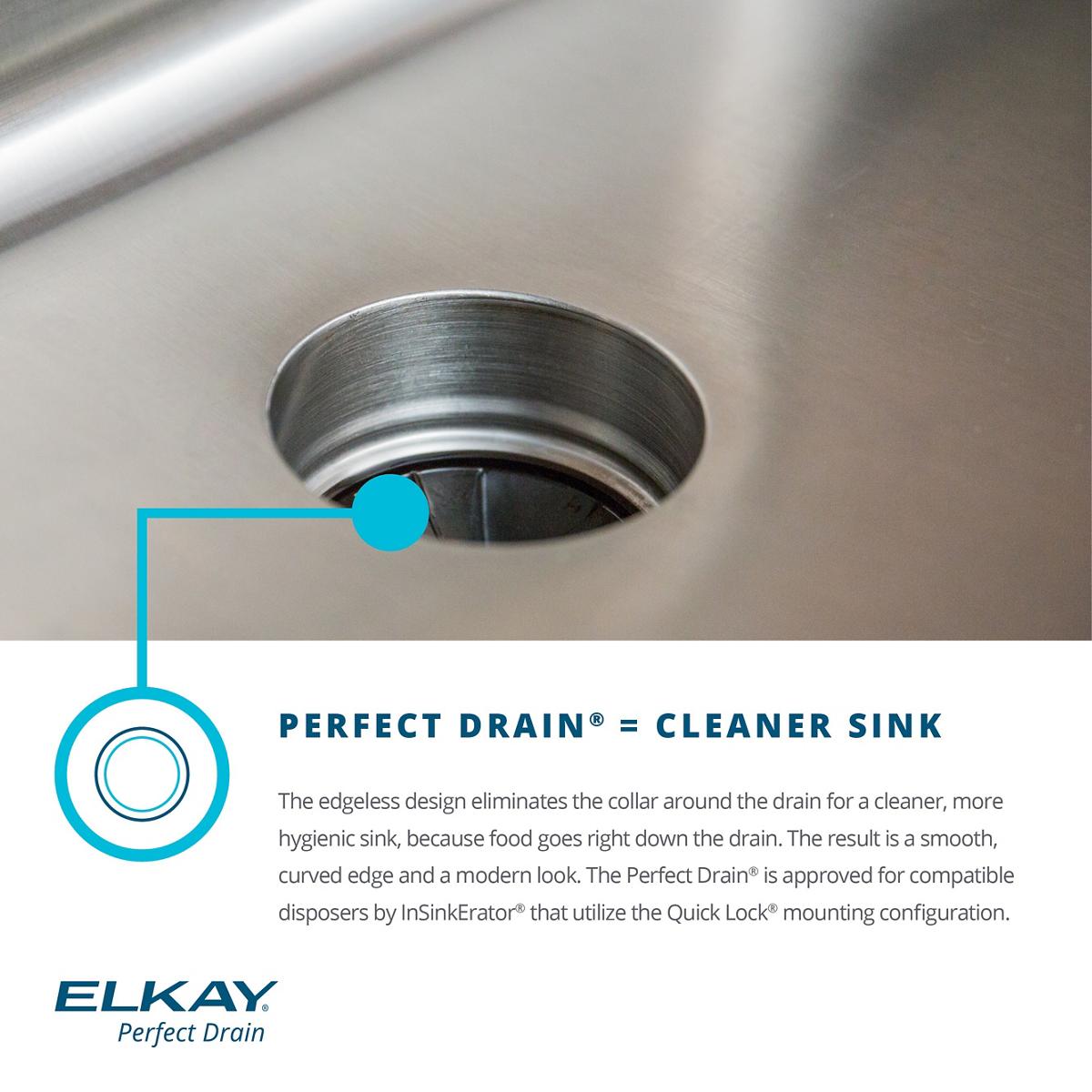

- Perfect Drain: Edgeless drain eliminates the gap around the drain for a cleaner, more hygienic sink; food and gunk go right down the drain

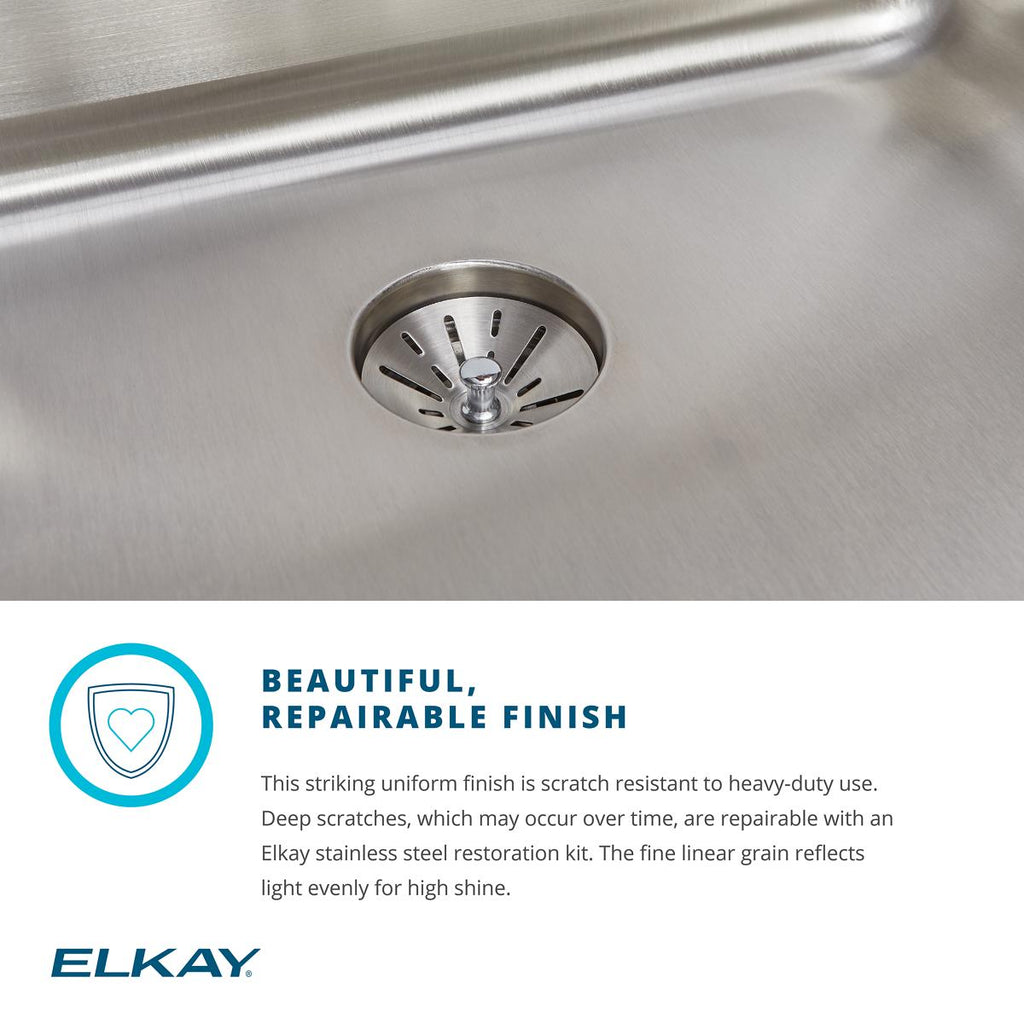

- REPAIRABLE FINISH: Finish is scratch resistant to heavy-duty use. Deep scratches are repairable. Lustrous grain reflects light evenly for high shine
- DROP-IN INSTALLATION: Sink is designed for drop-in installation to make the sink a focal point of your room
- SINGLE BOWL: Bowl gives you uninterrupted space for washing and stacking dishes or other household tasks

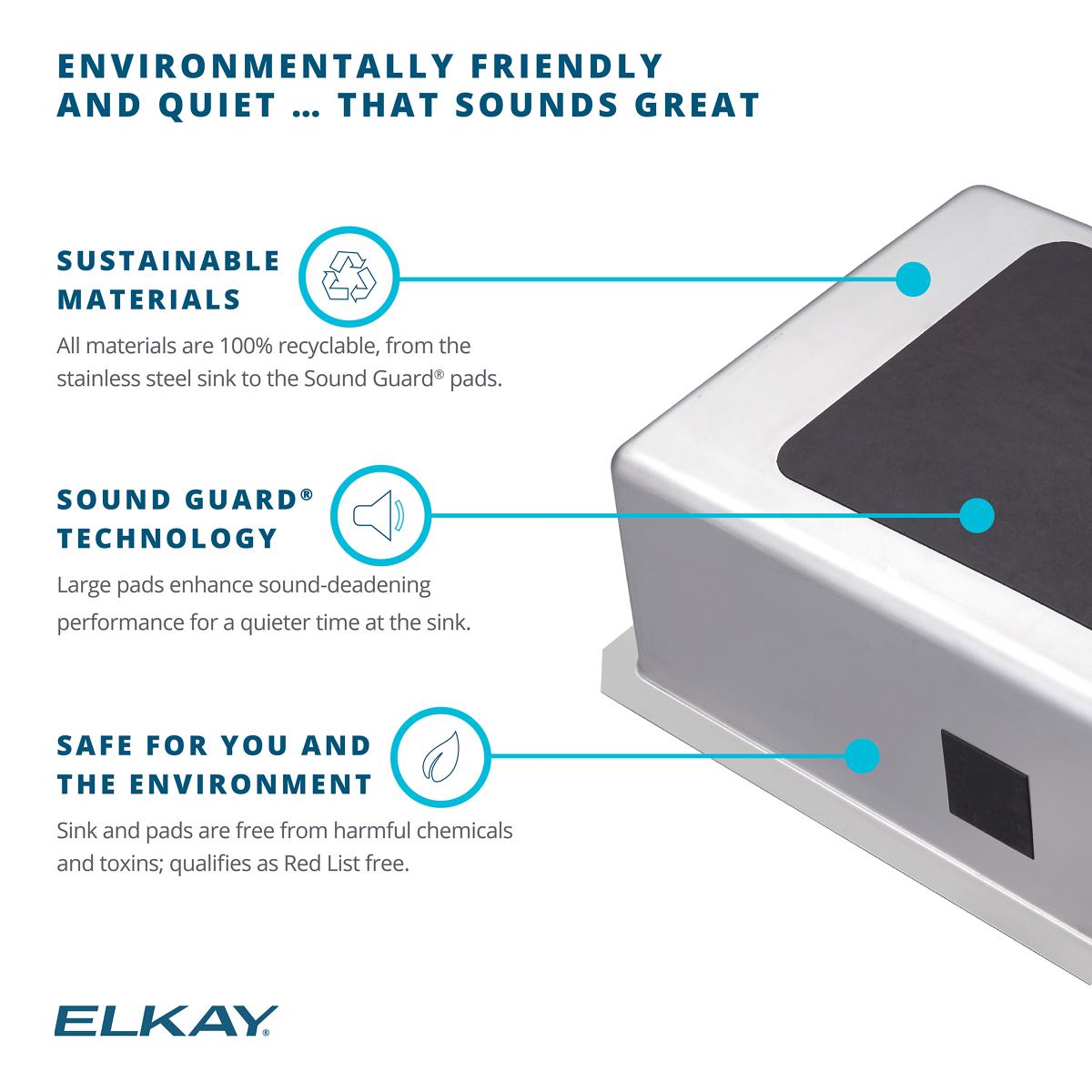

- Sound Guard TECHNOLOGY: Large pads enhance sound-deadening performance for a quieter time at the sink

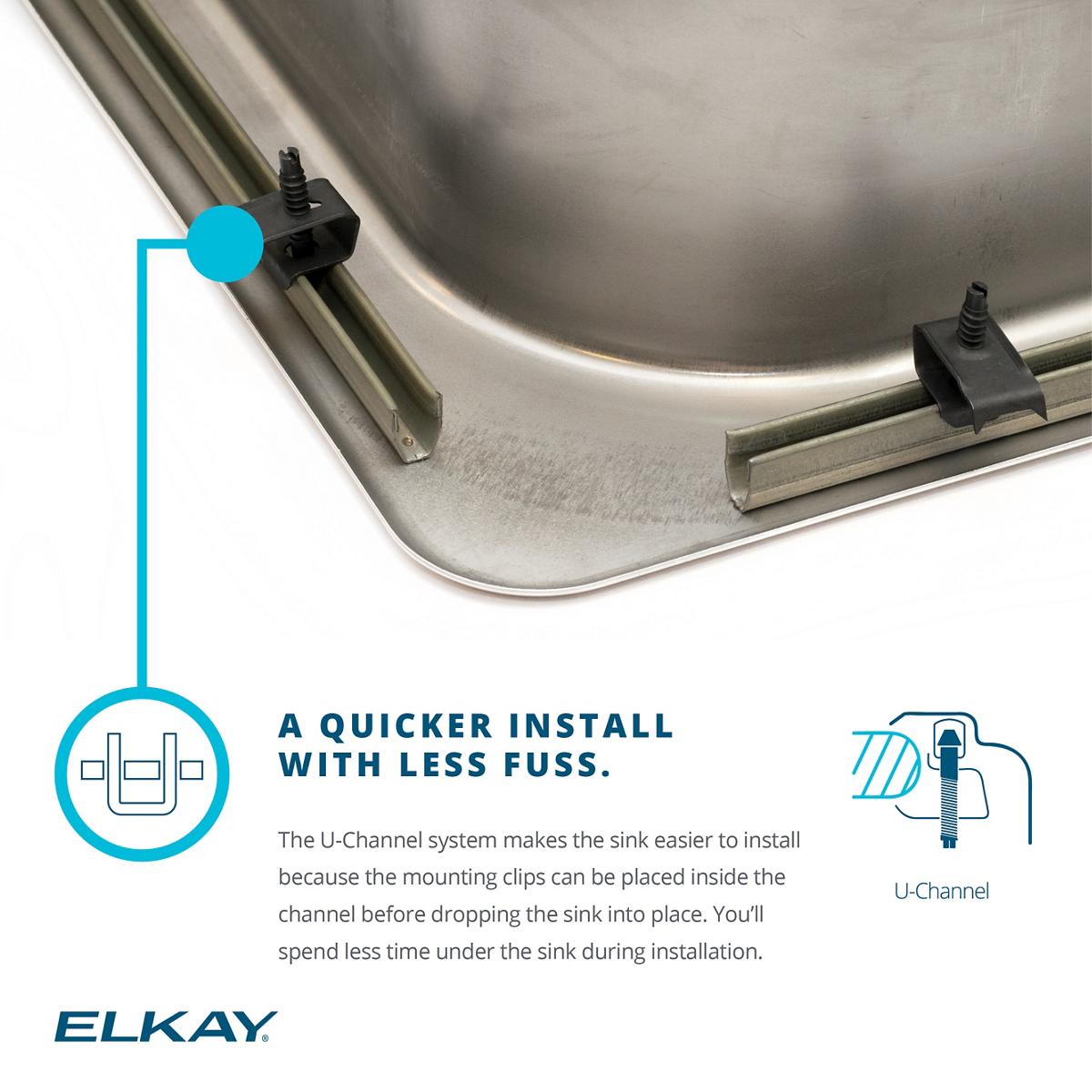

- U-CHANNEL INSTALLATION: Mounting clips placed inside the channel before installation mean less time under the sink for an easier install
- CABINET SIZE: Minimum cabinet size for this sink is 18".
- INCLUDES: One LKPD1 Perfect Drain and strainer
- California residents see Prop 65 Warnings.
Details
ADA Compliant?: | Yes |
---|---|
Basket Strainer Included?: | Yes |
Bowl Shape(s): | Square |
Bowl Split: | Single |
Box Height: | 10.51" |
Box Length: | 26.28" |
Box Weight: | 9.5 lb(s) |
Box Width: | 24.22" |
Code / Standard Compliance: | ASME A112.19.3; ASME A112.18.2, CSA B45.4; CSA B125.2, NPCC |
Collection: | Lustertone Classic,Perfect Drain |
Color: | Lustrous Satin |
Cutout Dimension: | 12-3/8" x 15-3/8" (314mm x 391mm) with 1-1/2" (38mm) corner radius |
Drain Included?: | Yes |
Drain Size: | 3.375 |
Finish: | Lustrous Satin |
Freight Class (LTL Only): | 250 |
Gallons to Overflow: | 12.9 |
Gauge: | 18 |
Harmonized System Code: | 7324100010 |
Included with Product: | One LKPD1 Perfect Drain and strainer |
Inner Depth: | 6.5" |
Inside Bowl Dimensions: | 10" x 10" x 6.375" |
Installation Type: | Drop In/Topmount |
Item Height: | 8" |
Item Length (Front to Back): | 16" |
Item Weight: | 7.75 lb(s) |
Item Width (Side to Side): | 13" |
Material: | Stainless Steel |
Minimum Cabinet Size: | 18" |
Mounting Hardware Included: | Part # 64090010 included for countertops up to 3/4" (19mm) thick (1 qty) |
Number of Bowls: | 1 |
Number of Faucet Holes: | 1 |
Room: | Kitchen |
SKU: | LRAD131665PD1 |
Shape: | Square |
Sound Deadening: | Bottom only pads |
Style: | Traditional |
cUPC Certified?: | Yes |
Warranty
Elkay Warranty Details (PDF)
Installation Instructions
Installation Instructions 1 (PDF)
Product Specifications (PDF)
Product Care
Elkay Product Care (PDF)
Video(s)
Product Video 1
Product Video 2
Product Video 3
Product Video 4
Product Video 5
Product Video 6
