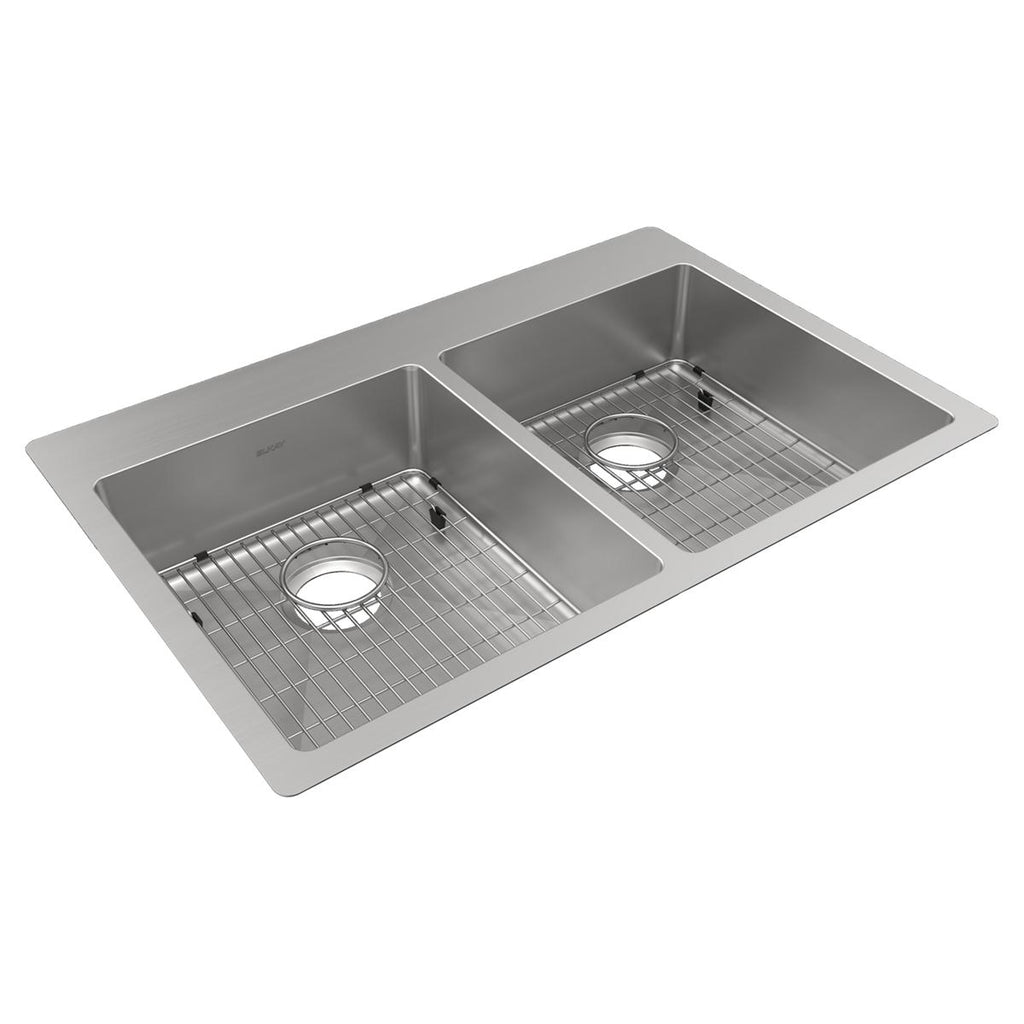

Elkay Crosstown 33" Dual Mount Stainless Steel ADA Kitchen Sink Kit, 50/50 Double Bowl, Polished Satin, No Faucet Hole, ECTSRAD33226TBG0
The Elkay Crosstown collection offers a fresh take on the classic stainless steel sink, combining beauty, function and contemporary design. Tight corners and a flat bottom provide more space inside the sink bowl for stacking and cleaning dishes. The striking geometric shape makes a statement in any home.
Please see our color disclaimer.
Features

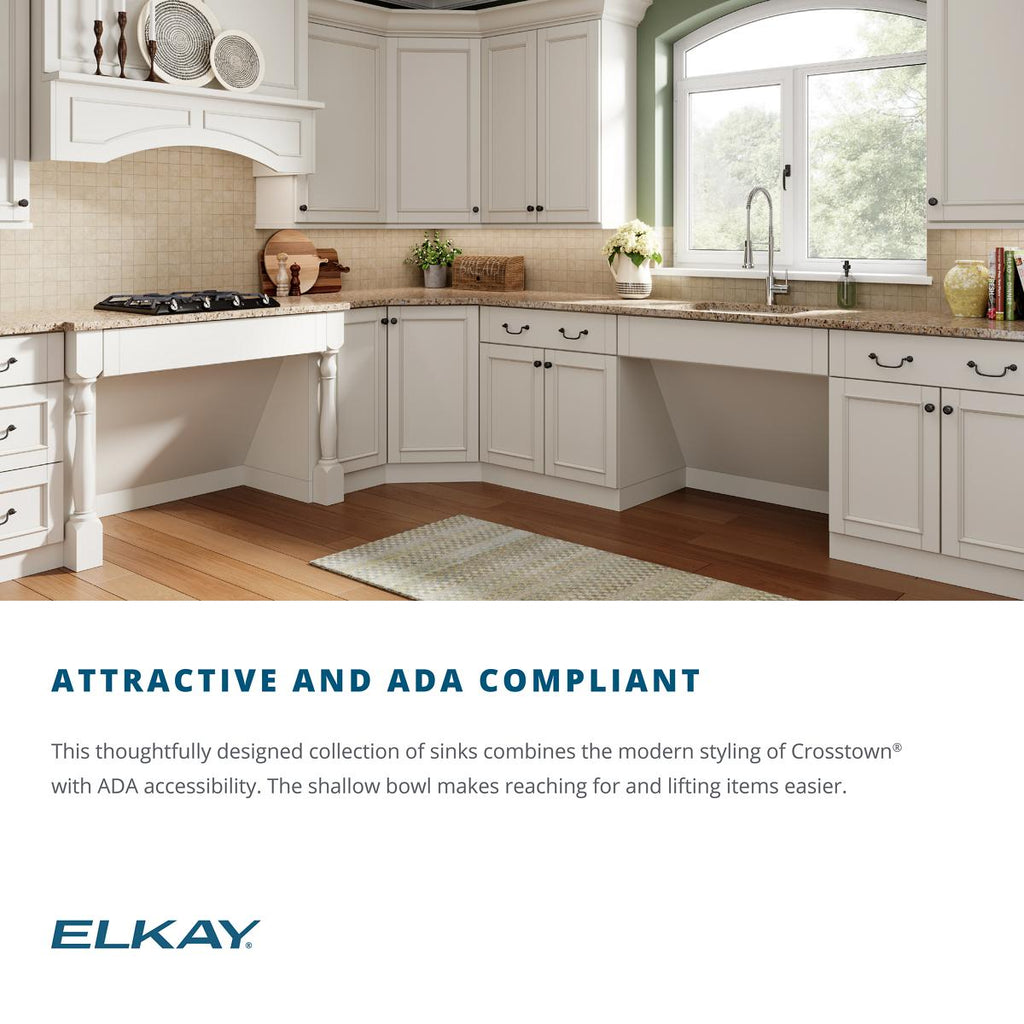

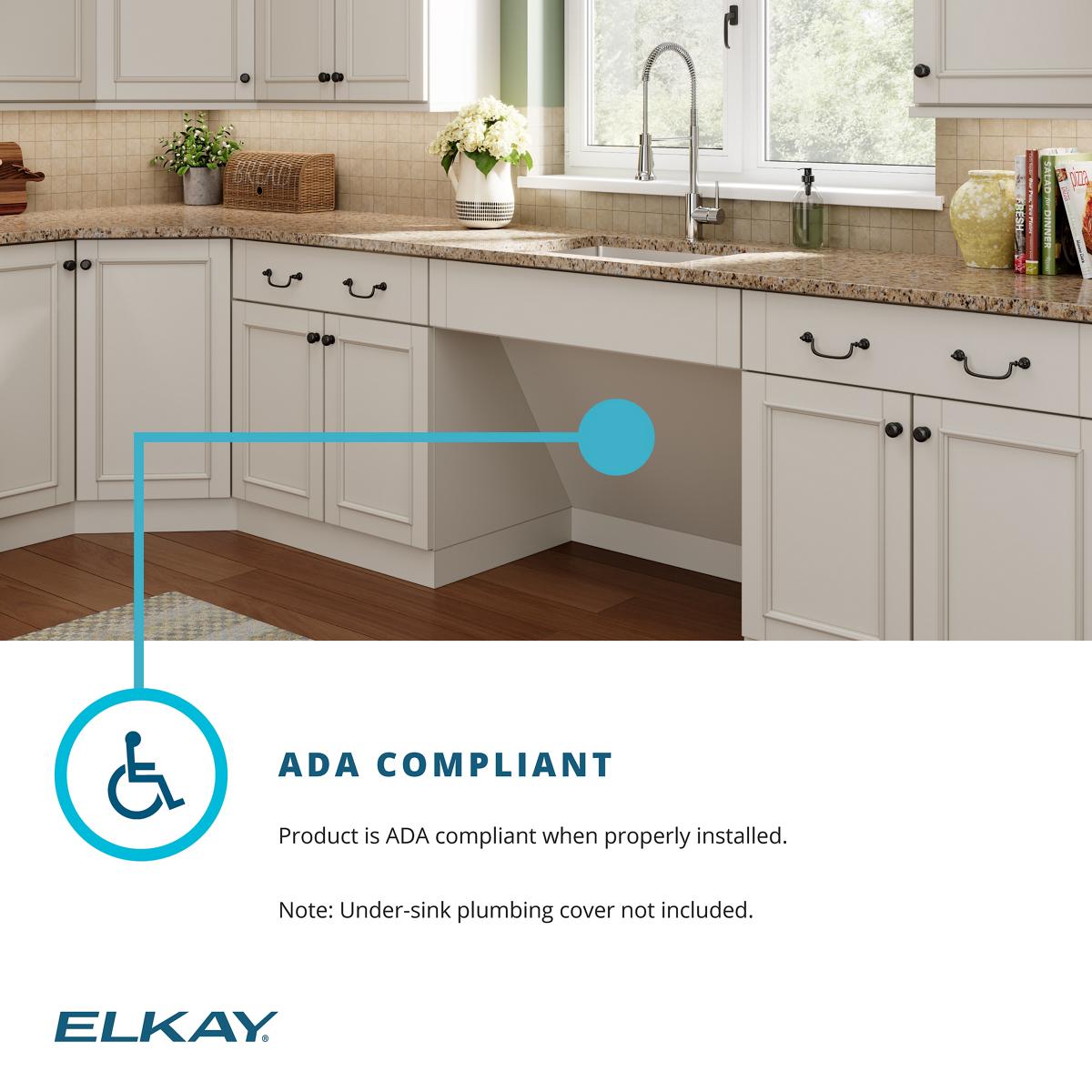

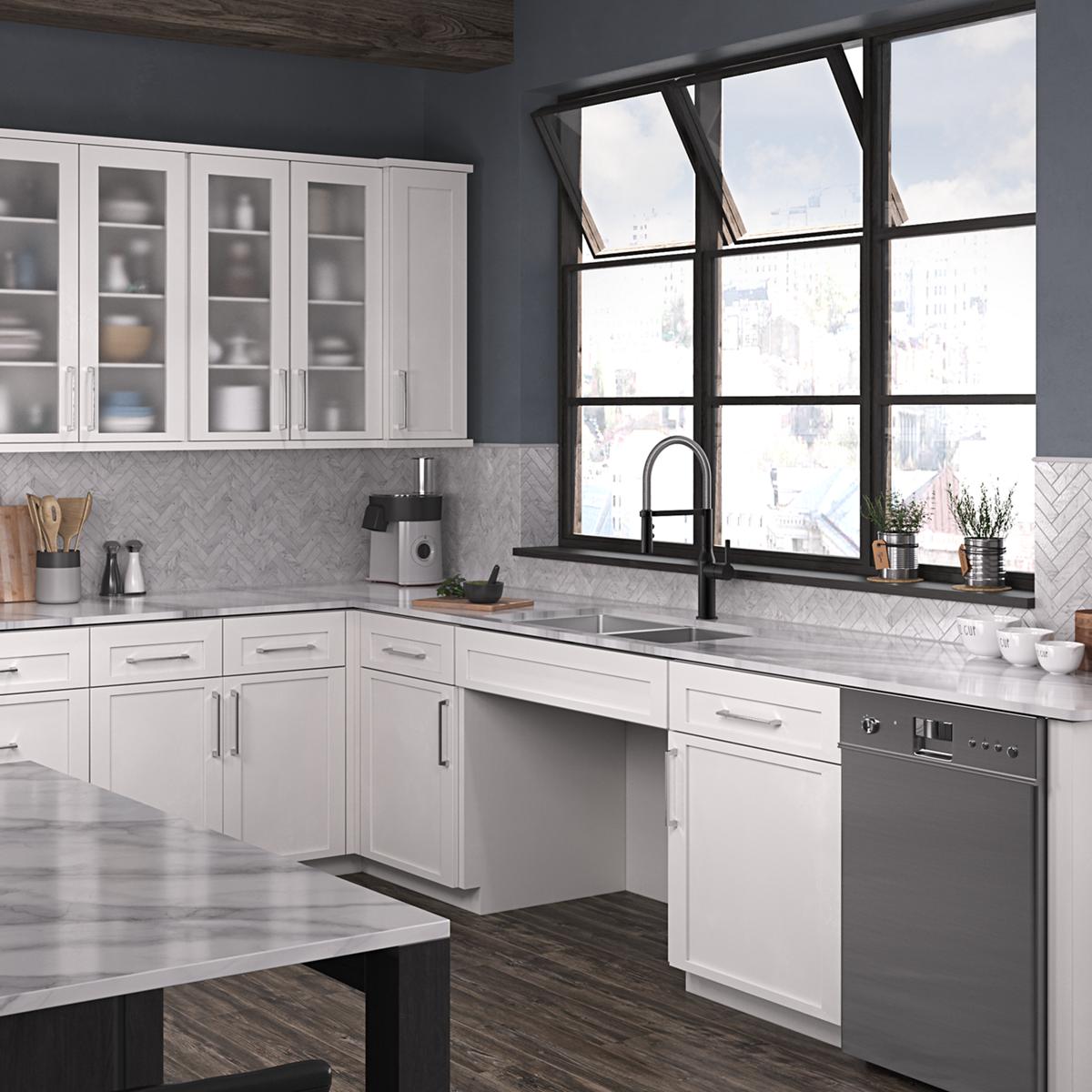

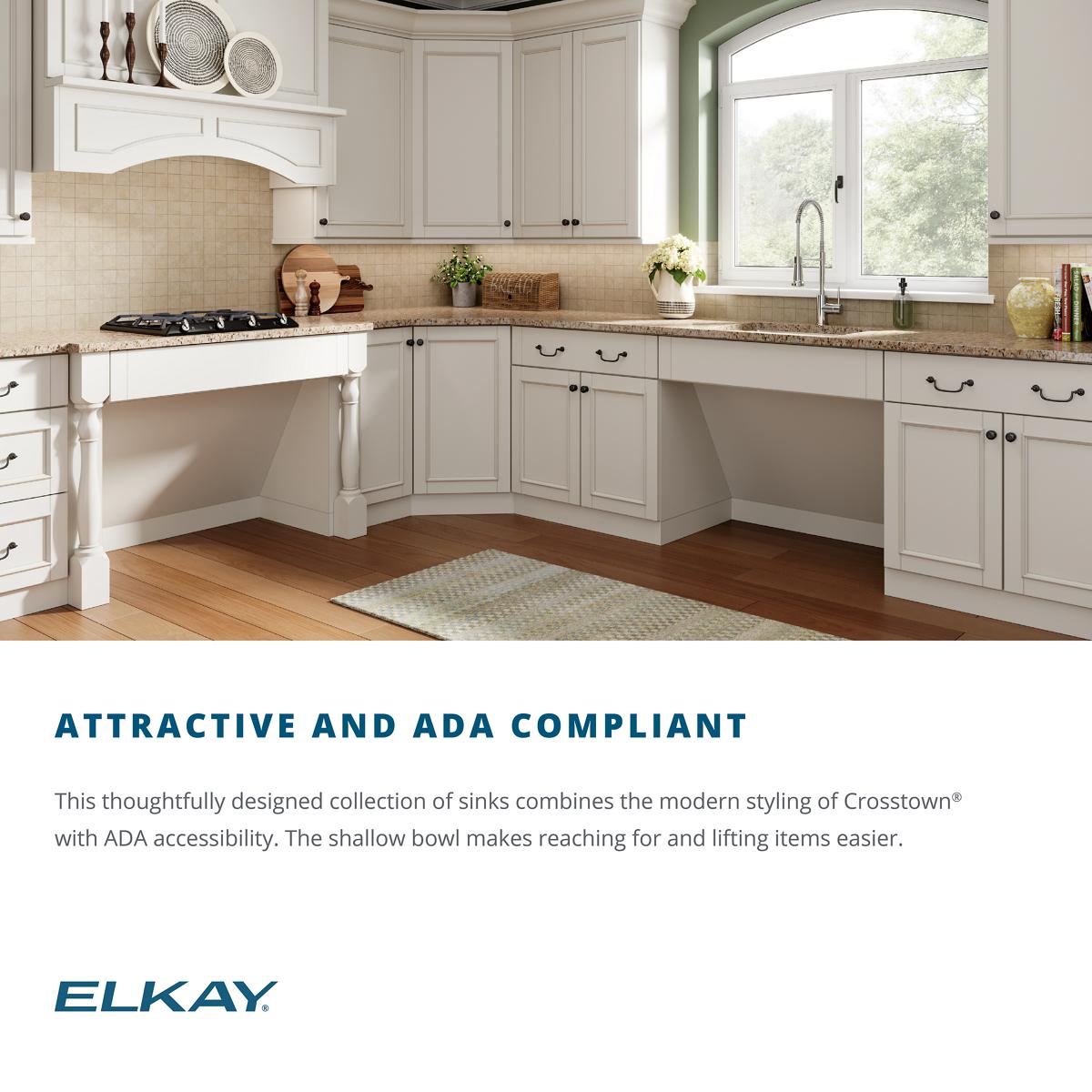

- ADA COMPLIANT: Product is ADA compliant when properly installed

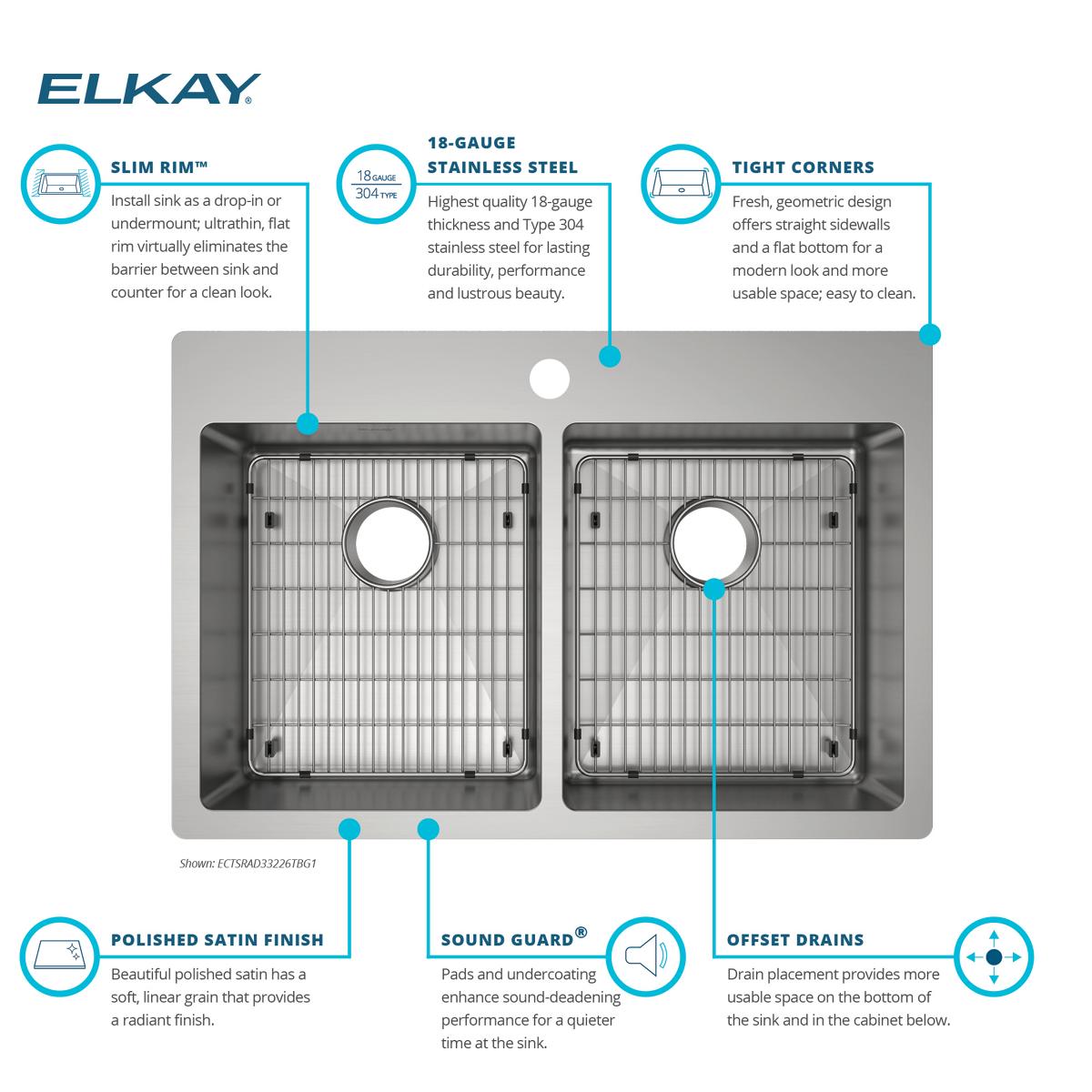

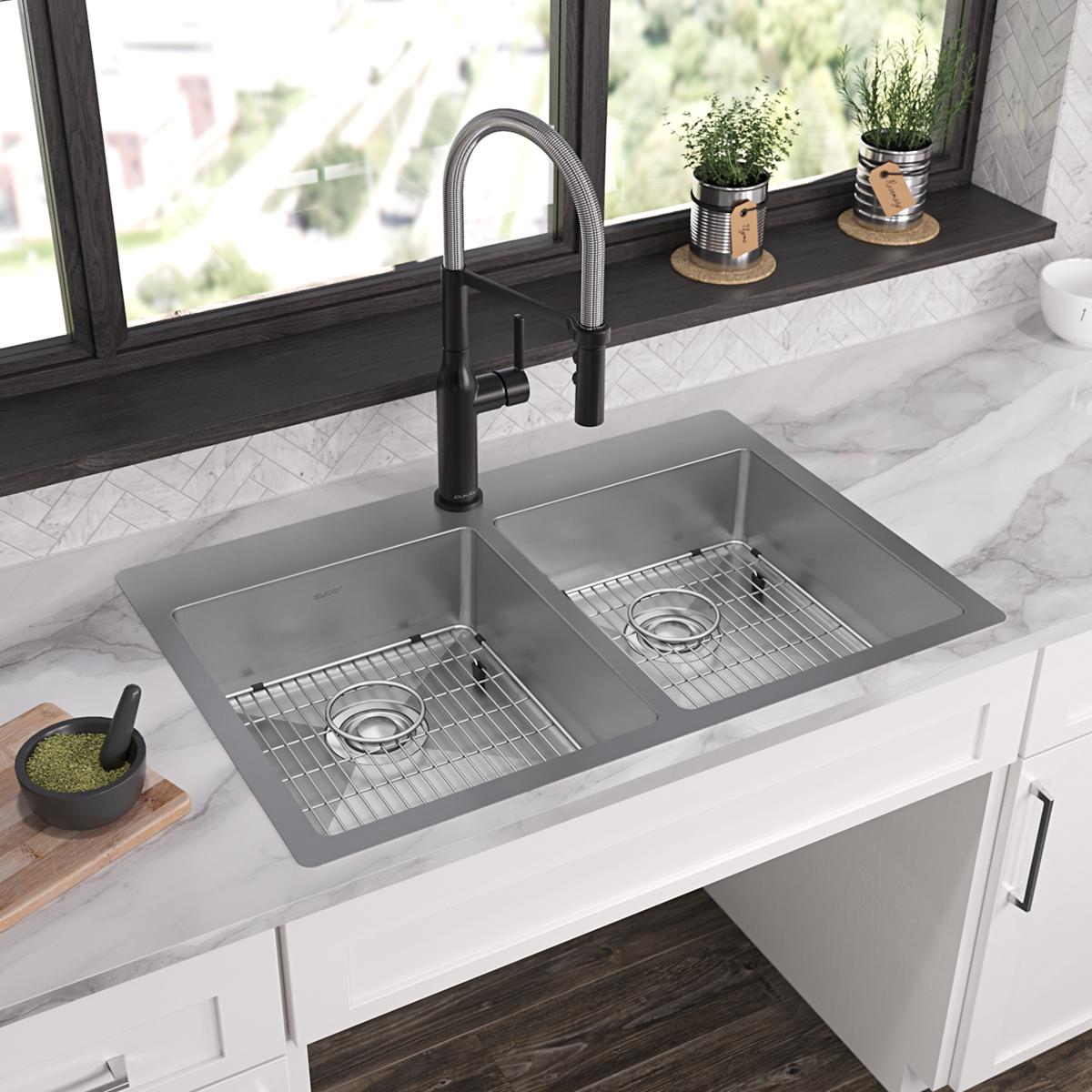

- Slim Rim: Install sink as a drop-in or undermount; ultrathin, flat rim virtually eliminates the barrier between sink and counter for a clean look

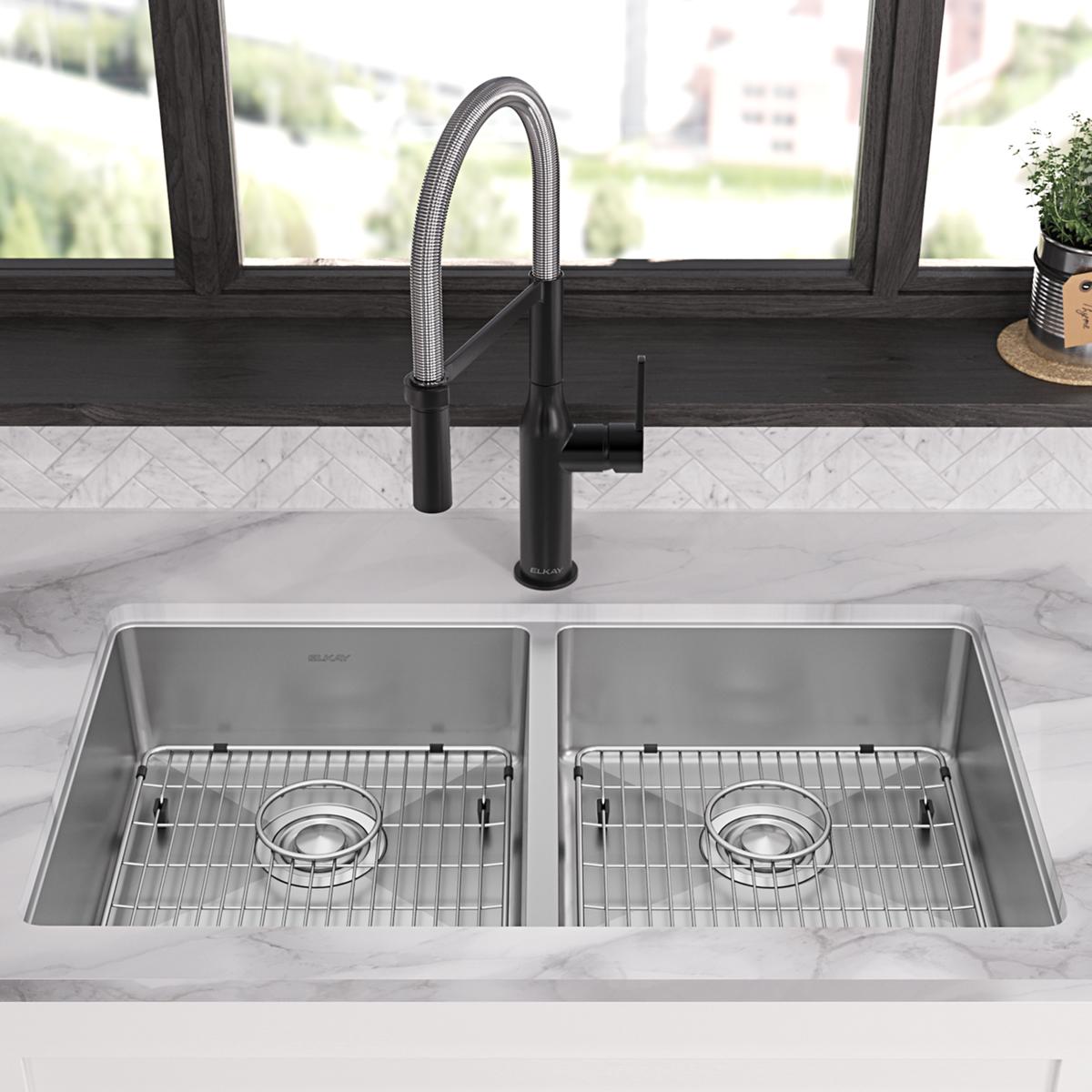

- DOUBLE BOWLS OF EQUAL SIZE: Conveniently use bowls independently for washing, soaking, rinsing, drying and other household tasks.

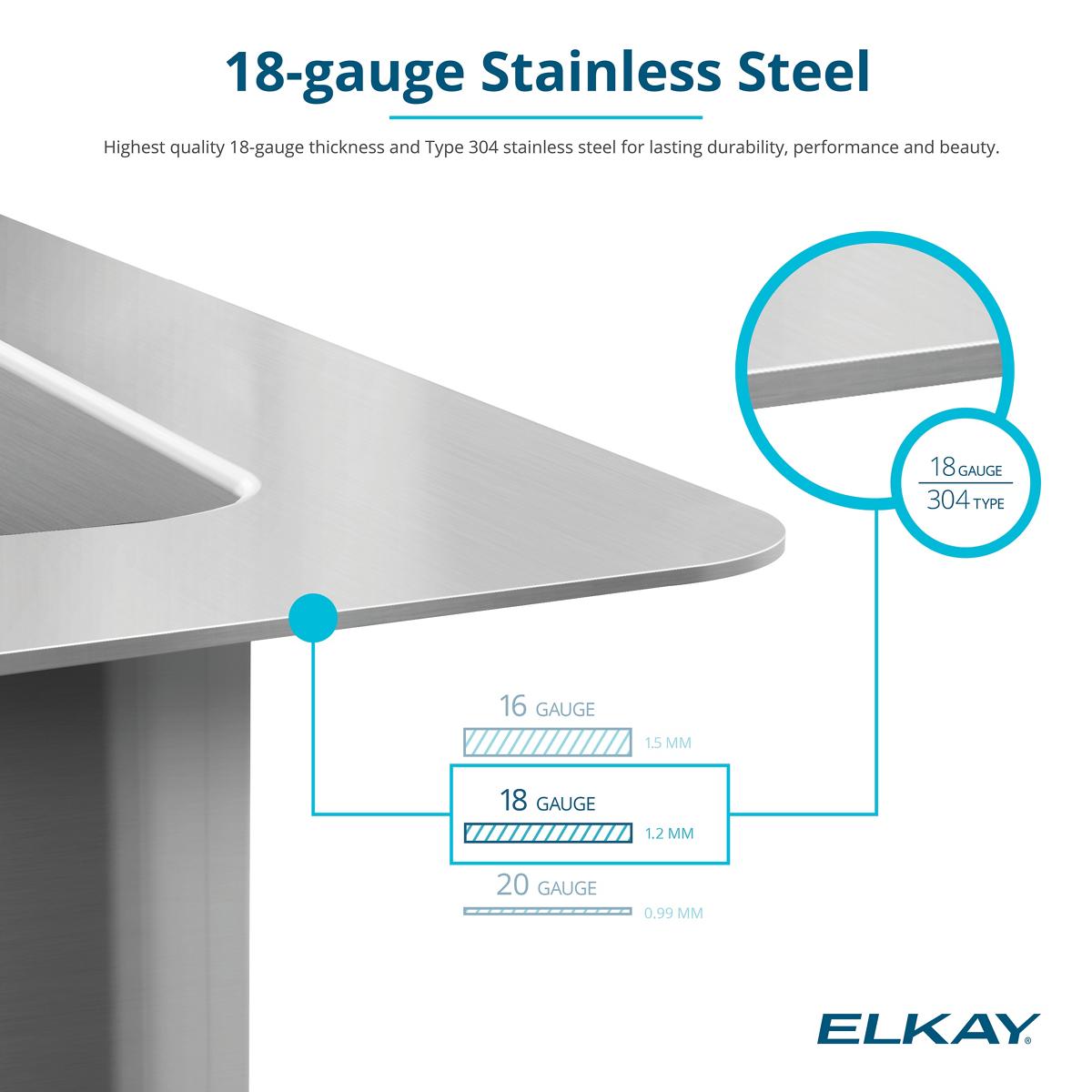

- 18-GAUGE STAINLESS STEEL: Highest quality 18-gauge thickness and Type 304 stainless steel for lasting durability, performance and lustrous beauty

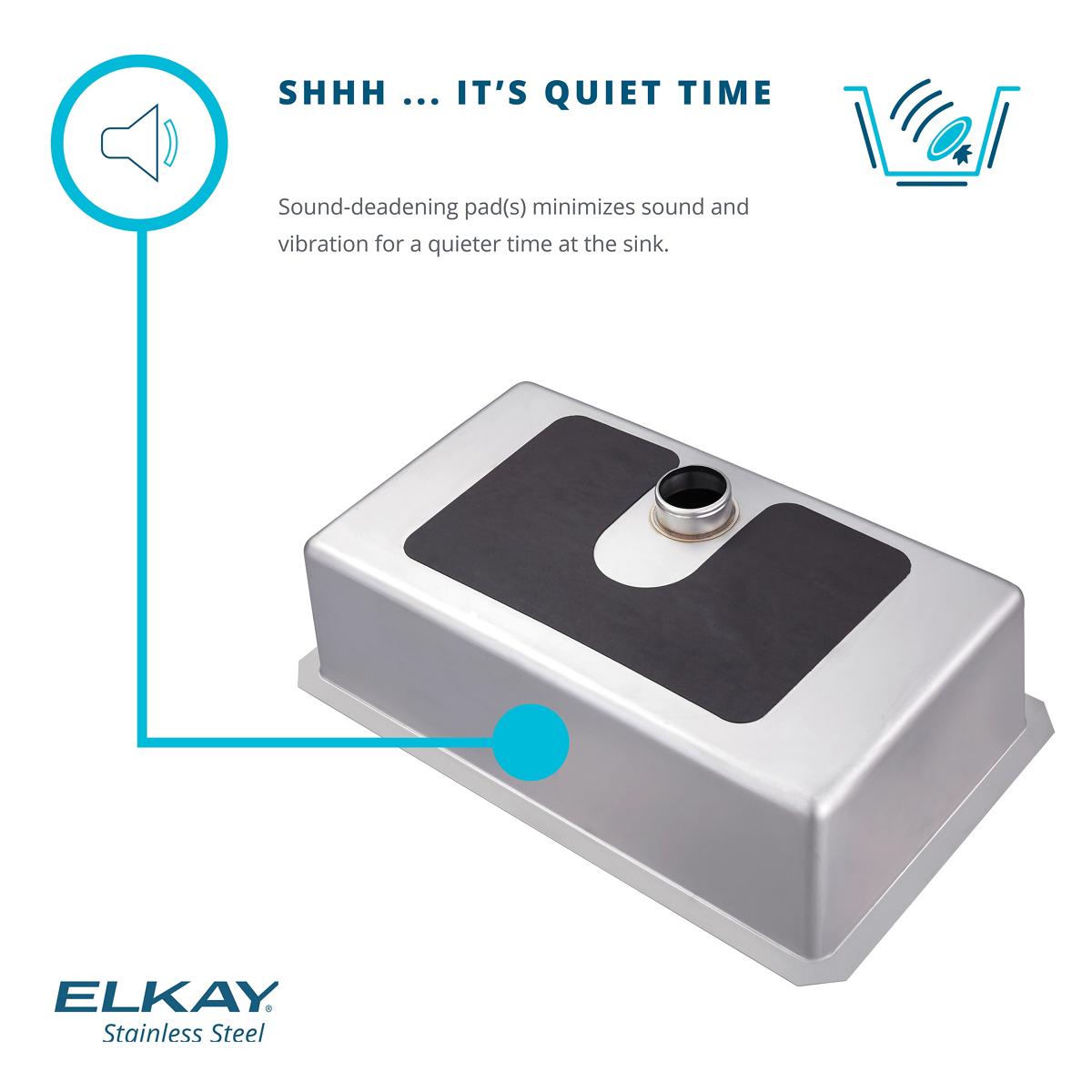

- Sound Guard: Pads and undercoating enhance sound-deadening performance for a quieter time at the sink

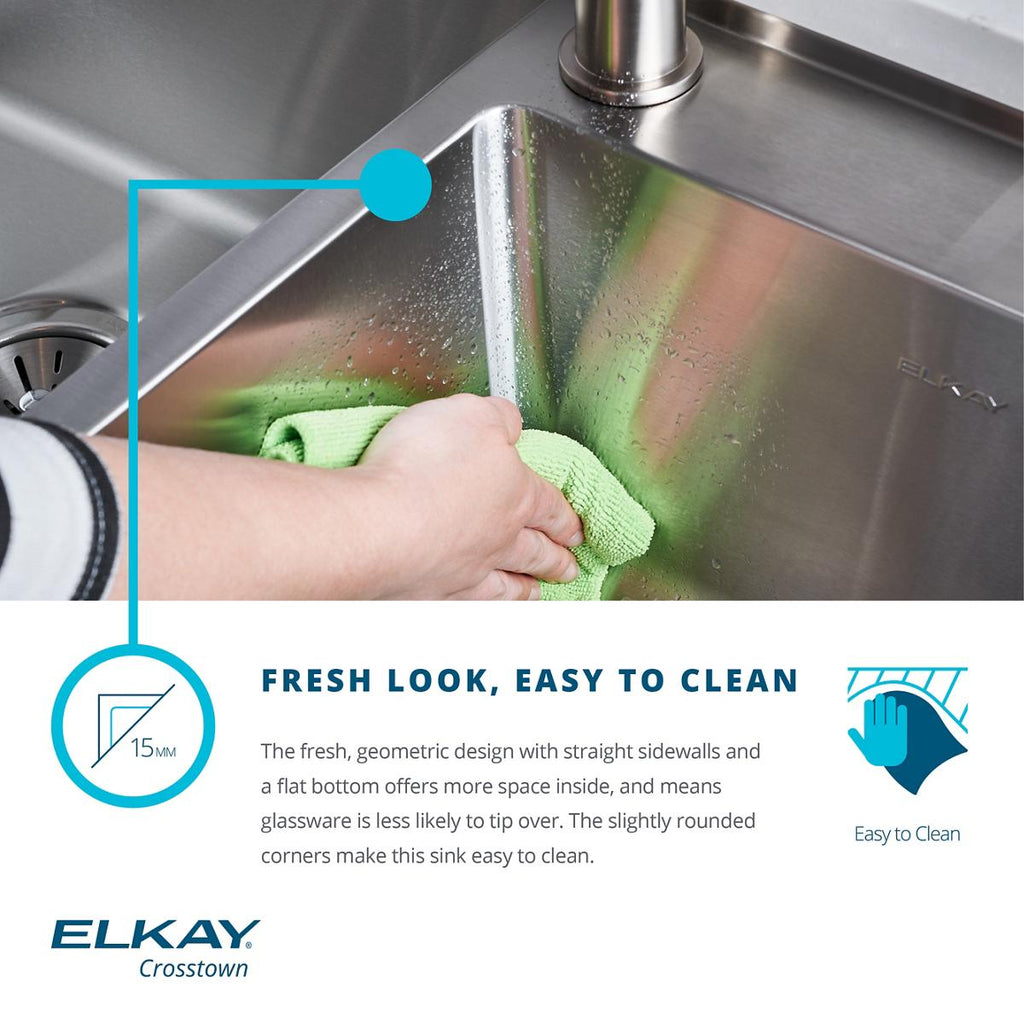

- TIGHT CORNERS: Fresh, geometric design offers straight sidewalls and a flat bottom for a modern look and more usable space; easy to clean.

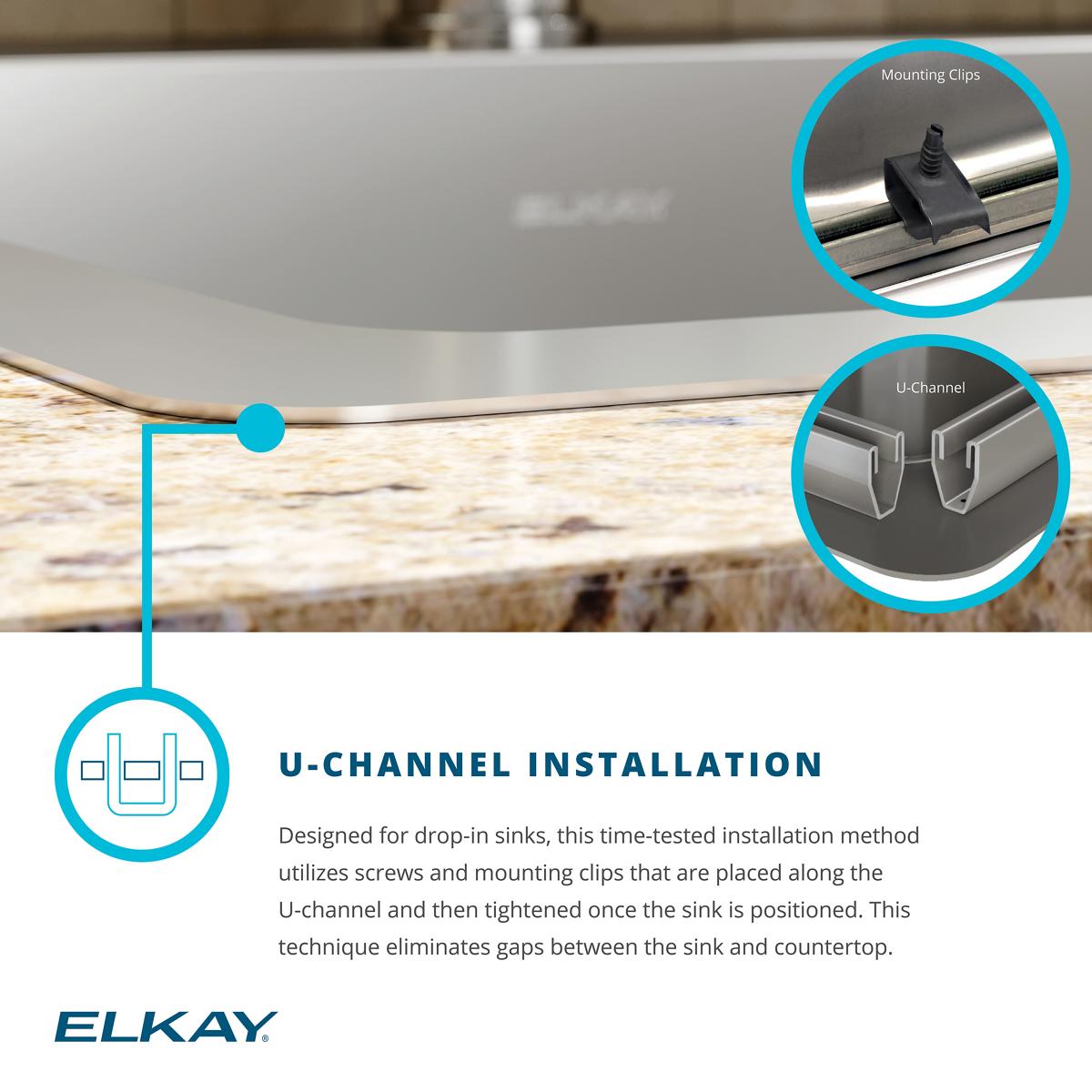

- U-CHANNEL INSTALLATION: Mounting clips placed inside the channel before installation mean less time under the sink for an easier install
- DRAIN OPENING: Sink drain opening measures 3-1/2"
- DISPOSAL READY: This sink has a drain that works with standard garbage disposals, if space allows

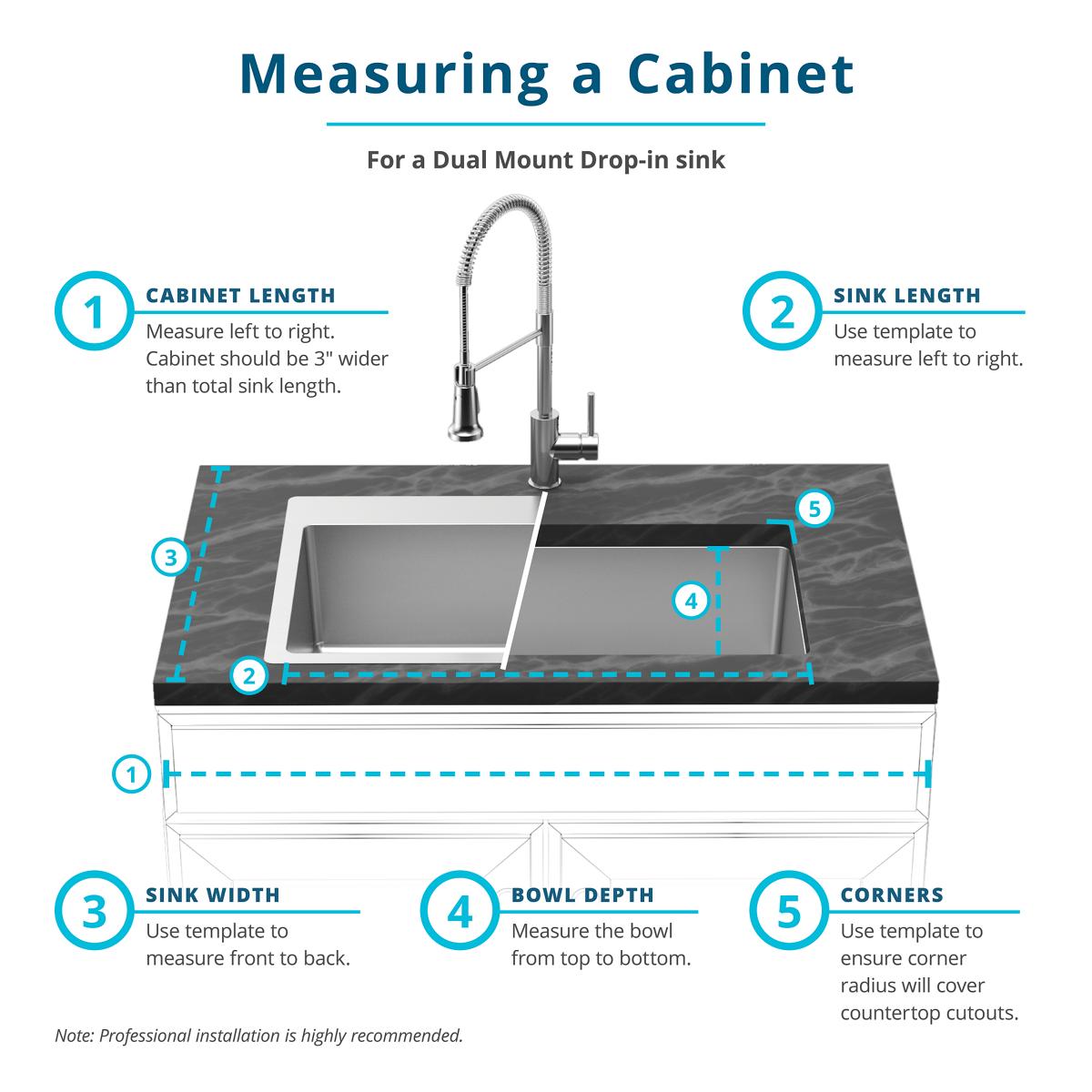

- CABINET SIZE: Minimum cabinet size for this sink is 36".

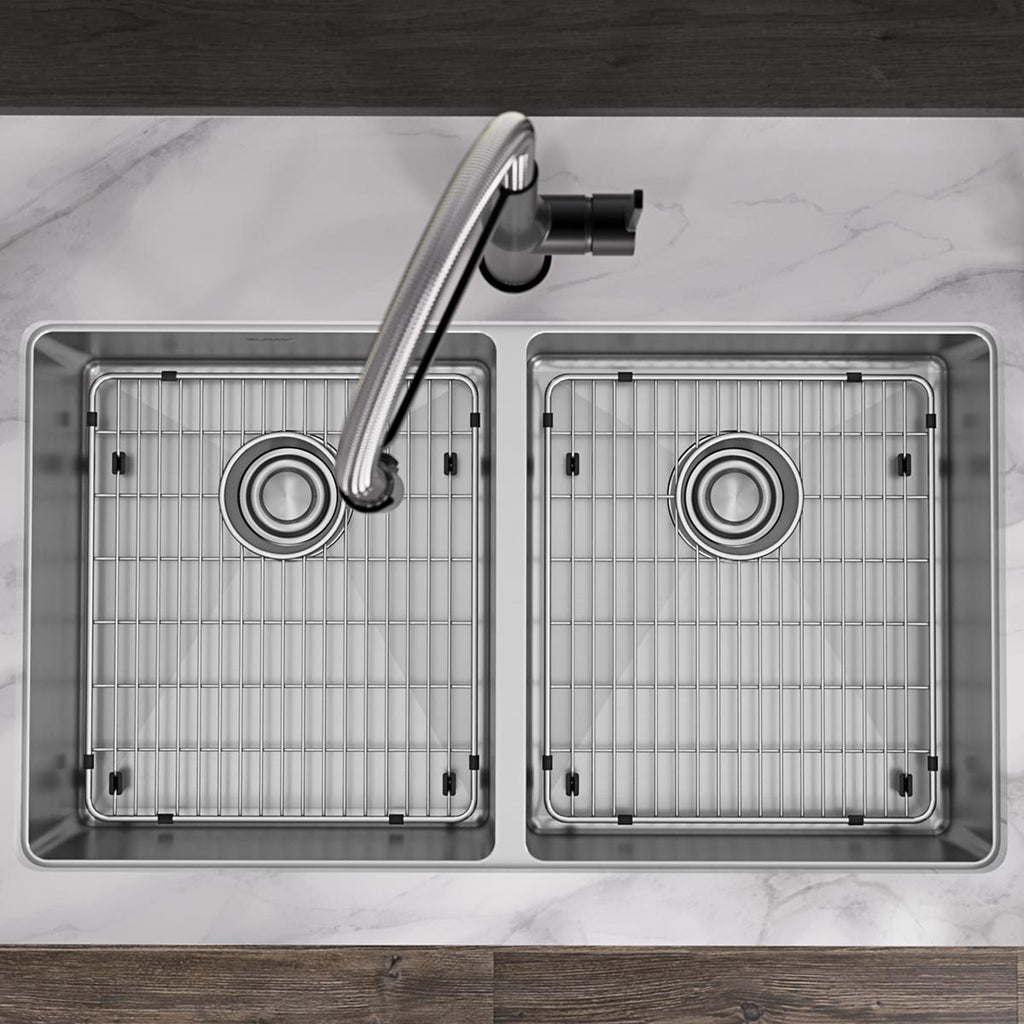

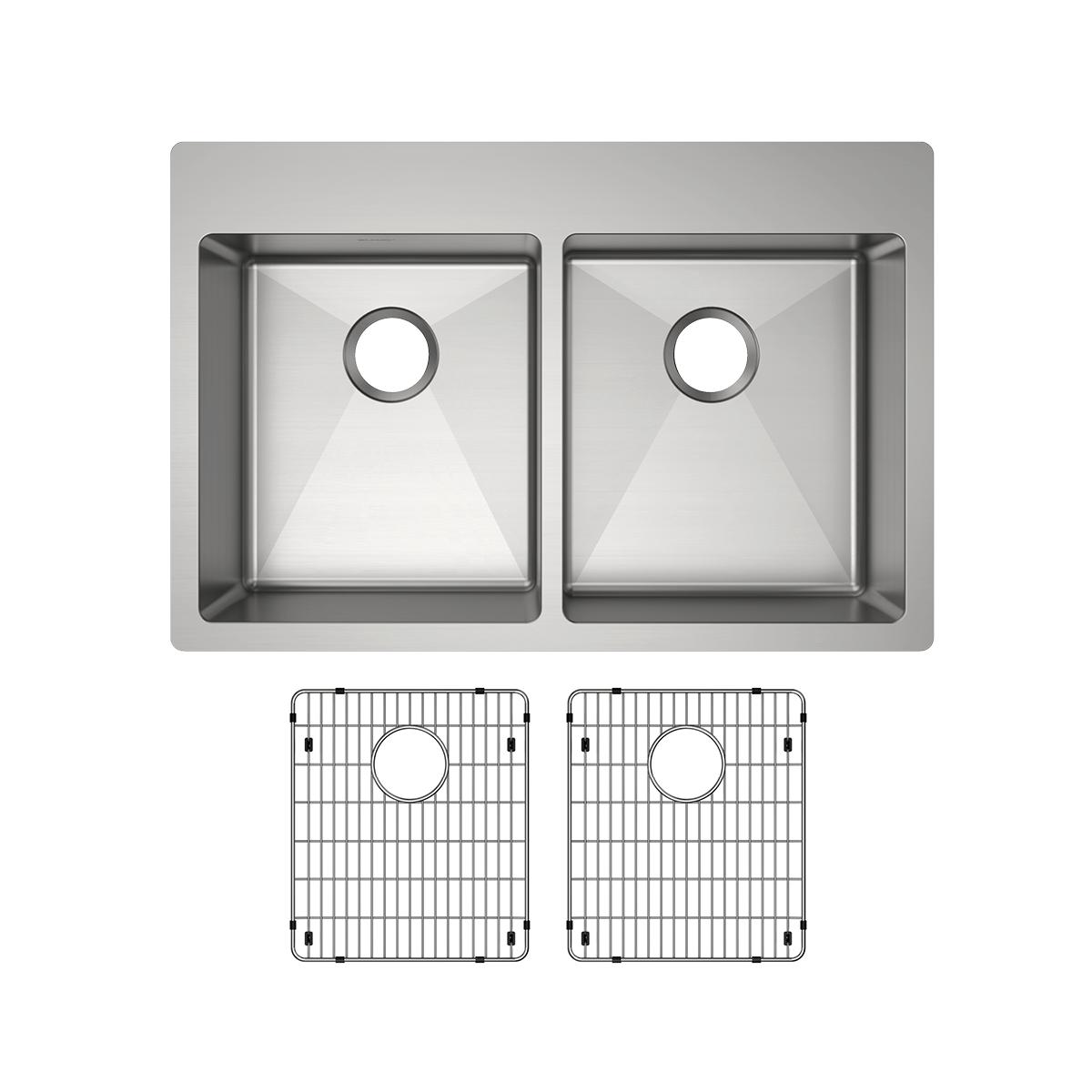

- KIT INCLUDES: ECTSRAD33226T sink, two CTXBG1315 bottom grids; conveniently packaged together to save you time.
- California residents see Prop 65 Warnings.
Details
ADA Compliant?: | Yes |
---|---|
Bowl Shape(s): | Bowl 1: Rectangular, Bowl 2: Rectangular |
Bowl Split: | 50/50 |
Box Height: | 13" |
Box Length: | 38" |
Box Weight: | 34 lb(s) |
Box Width: | 24.5" |
Code / Standard Compliance: | NPCC |
Collection: | Crosstown |
Color: | Polished Satin |
Country of Origin: | China |
Cutout Dimension: | 32-3/8" x 21-3/8" (822mm x 543mm) with 1/2" (12mm) corner radius |
Drain Size: | Bowl 1: 3.5", Bowl 2: 3.5" |
Finish: | Polished Satin |
Freight Class (LTL Only): | 125 |
Gallons to Overflow: | 8.1 |
Gauge: | 18 |
Grid Included?: | Yes |
Harmonized System Code: | 7324100050 |
Included with Product: | two CTXBG1315 Bottom Grids |
Inner Depth: | 6" |
Inside Bowl Dimensions: | Bowl 1: 16.75" x 14.75" x 6", Bowl 2: 16.75" x 14.75" x 6" |
Installation Type: | Dual Mount |
Item Height: | 6" |
Item Length (Front to Back): | 22" |
Item Weight: | 27 lb(s) |

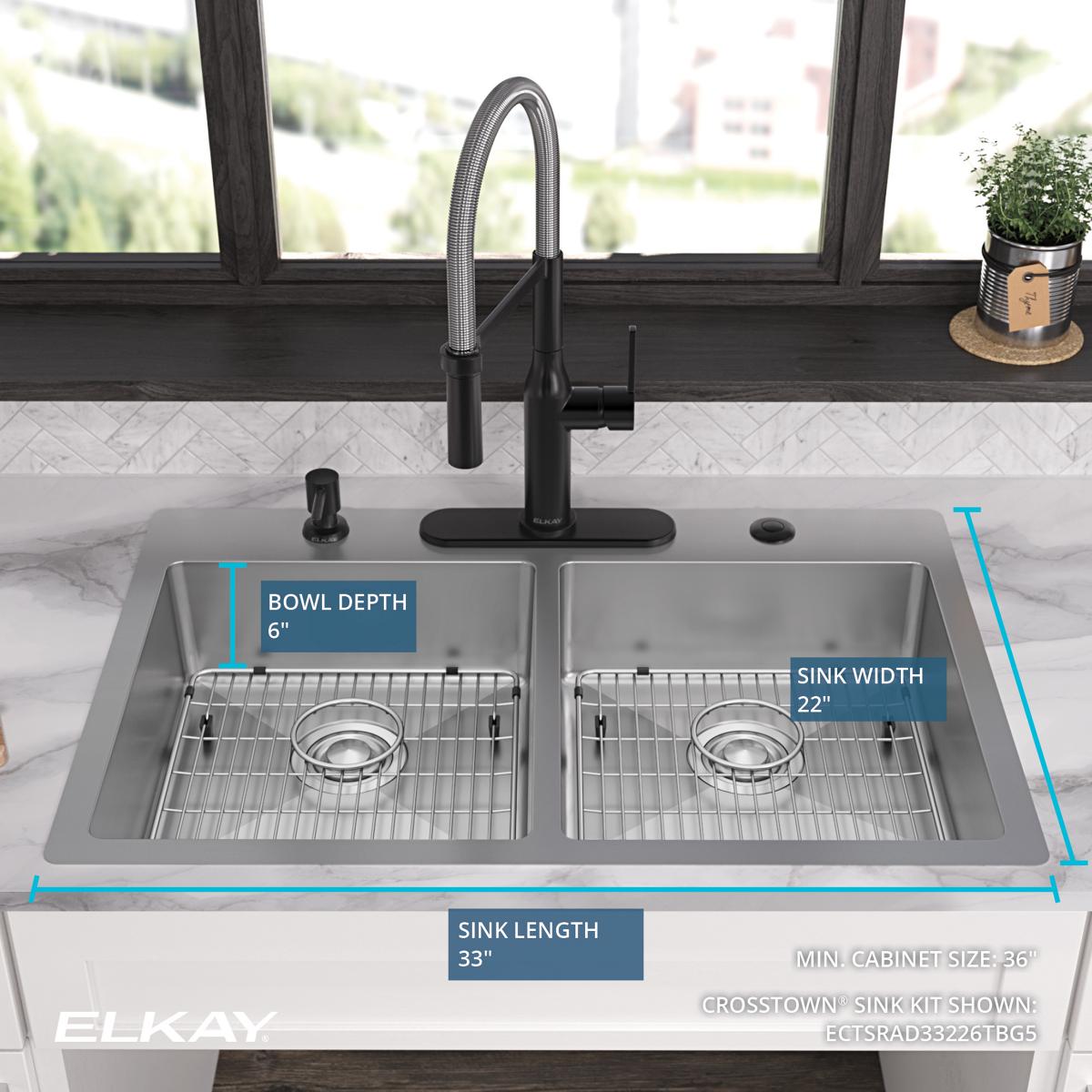

Item Width (Side to Side): | 33" |
Material: | Stainless Steel |
Minimum Cabinet Size: | 36" |
Mounting Hardware Included: | Part # 64090022 included for drop-in installation for countertops thicker than 3/4" (19mm) up to 1-1/2" (38.1mm) thick. (1 qty) |
Number of Bowls: | 2 |
Room: | Kitchen |
SKU: | ECTSRAD33226TBG0 |
Shape: | Rectangular |
Sound Deadening: | Full spray sides and bottom with Sides and Bottom pads |
Style: | Transitional |
cUPC Certified?: | Yes |
