Description

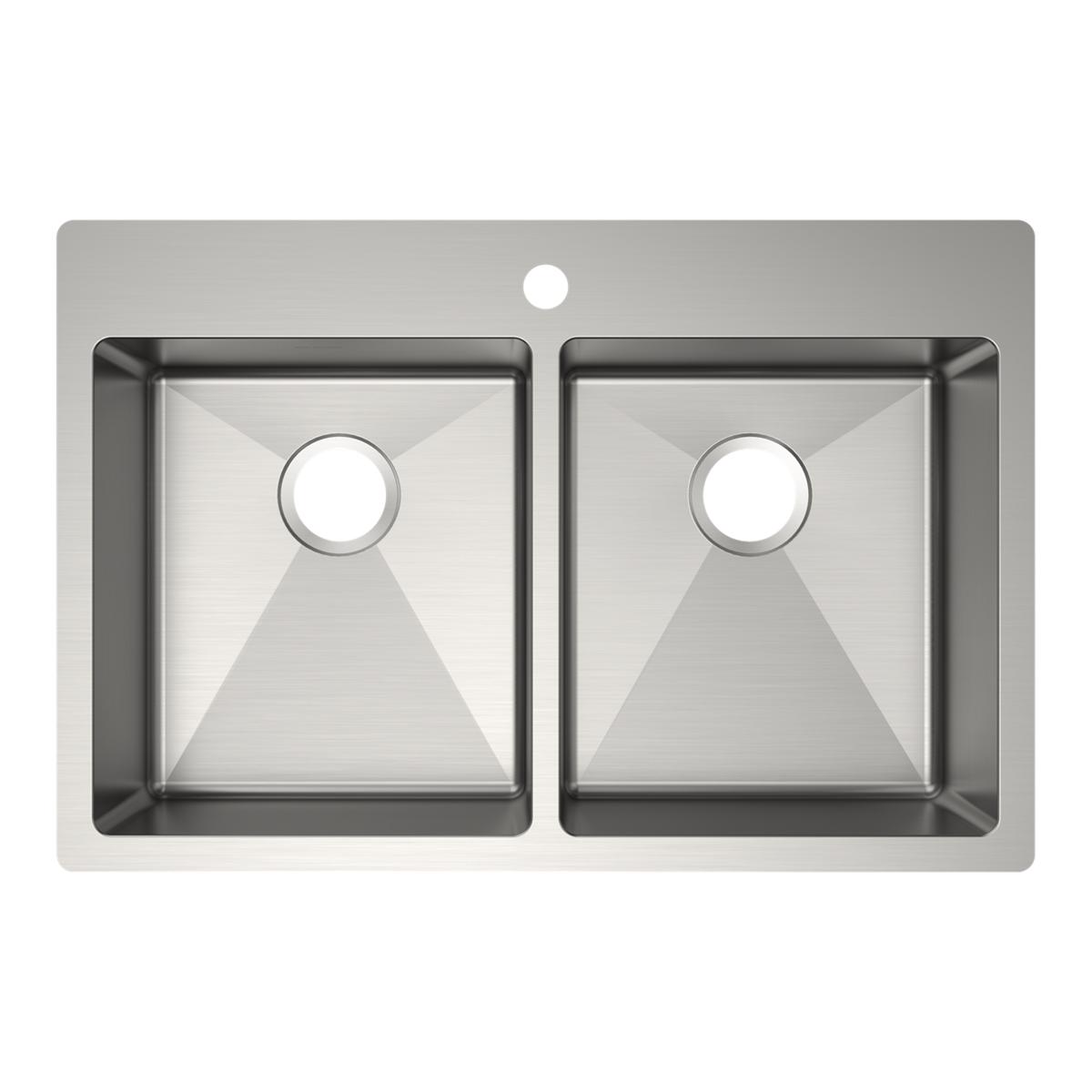

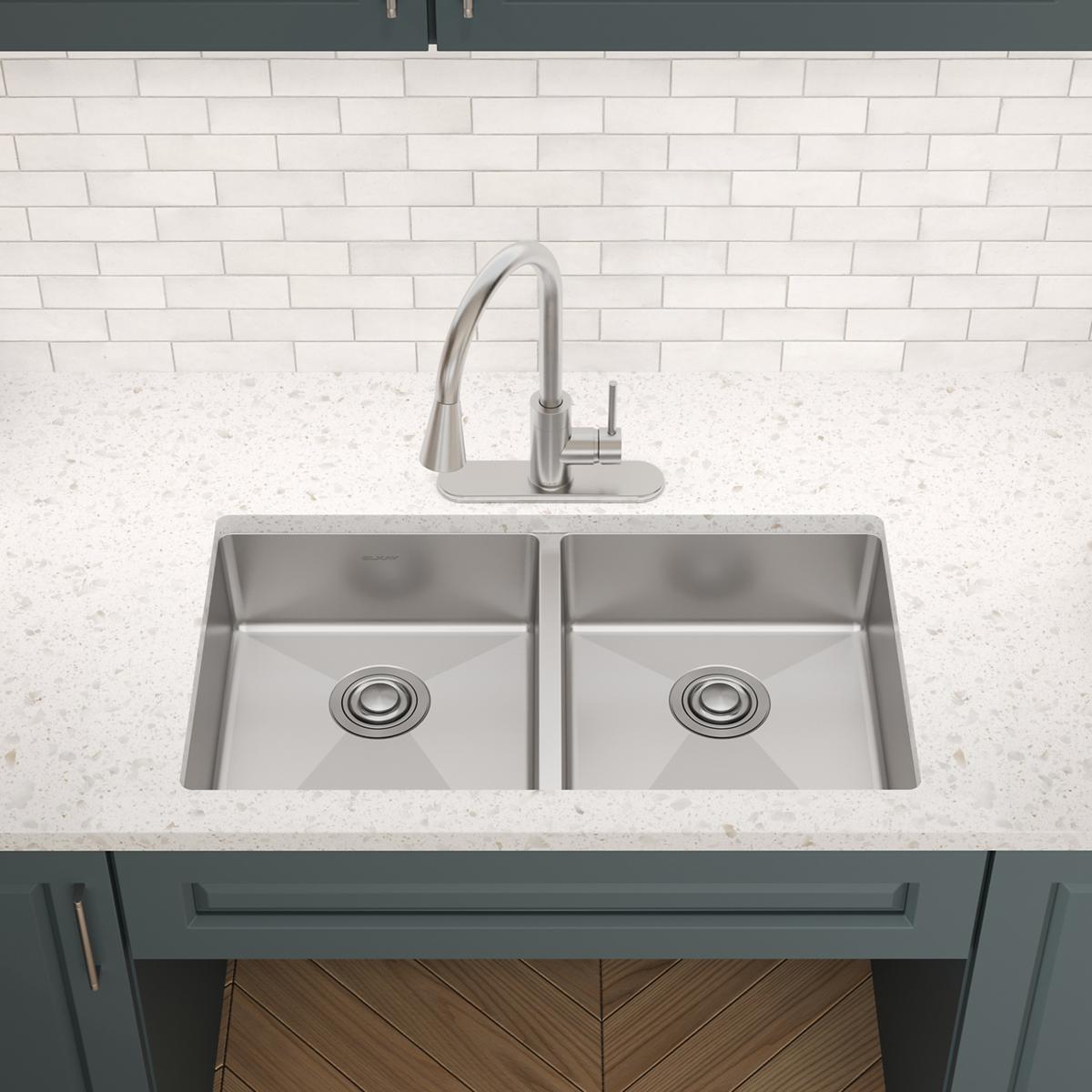

Elkay Crosstown 33" Dual Mount Stainless Steel ADA Kitchen Sink, 50/50 Double Bowl, Polished Satin, 1 Faucet Hole, ECTSRAD3322601
The Elkay Crosstown collection offers a fresh take on the classic stainless steel sink, combining beauty, function and contemporary design. Tight corners and a flat bottom provide more space inside the sink bowl for stacking and cleaning dishes. The striking geometric shape makes a statement in any home.
Available In:
Please see our color disclaimer.

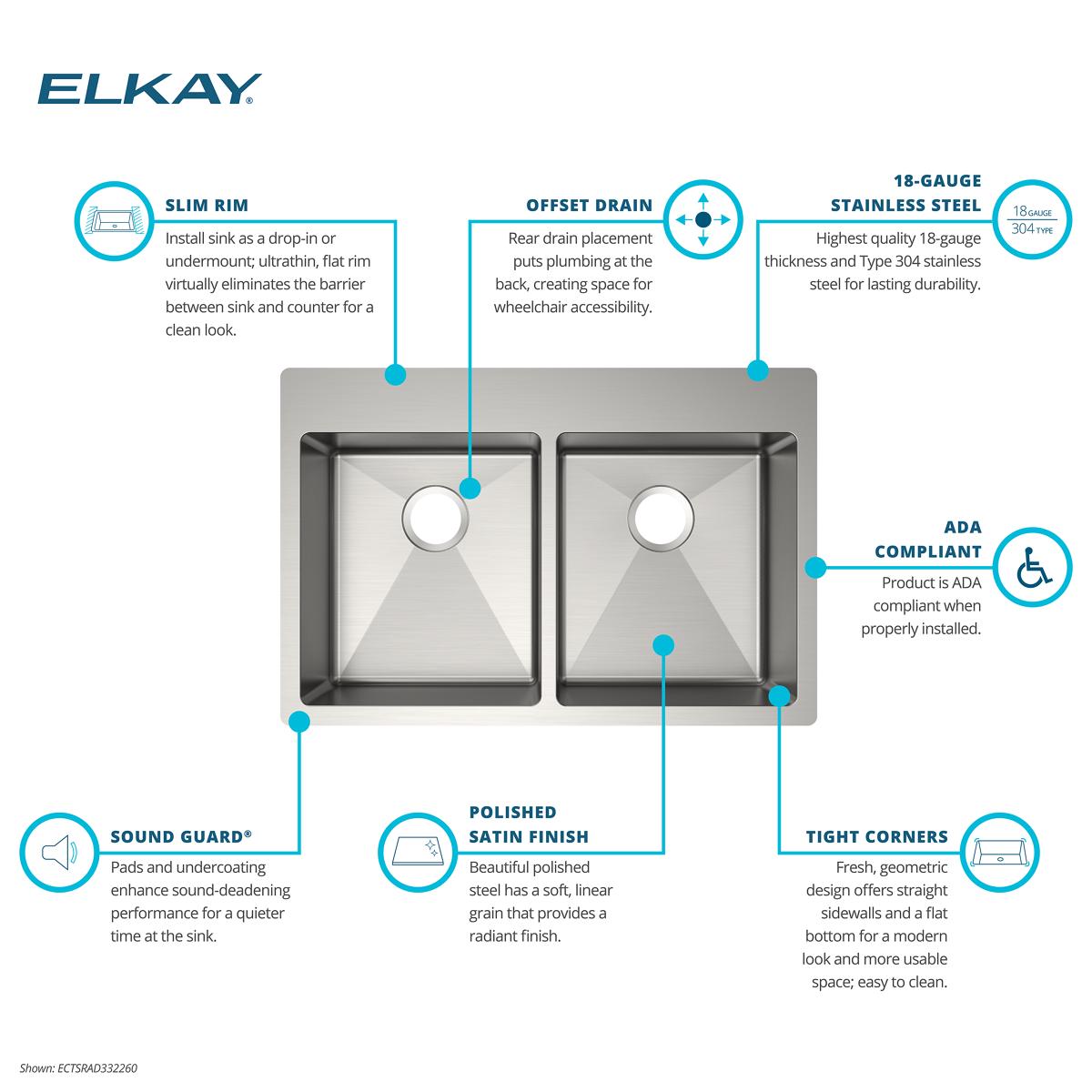

Features

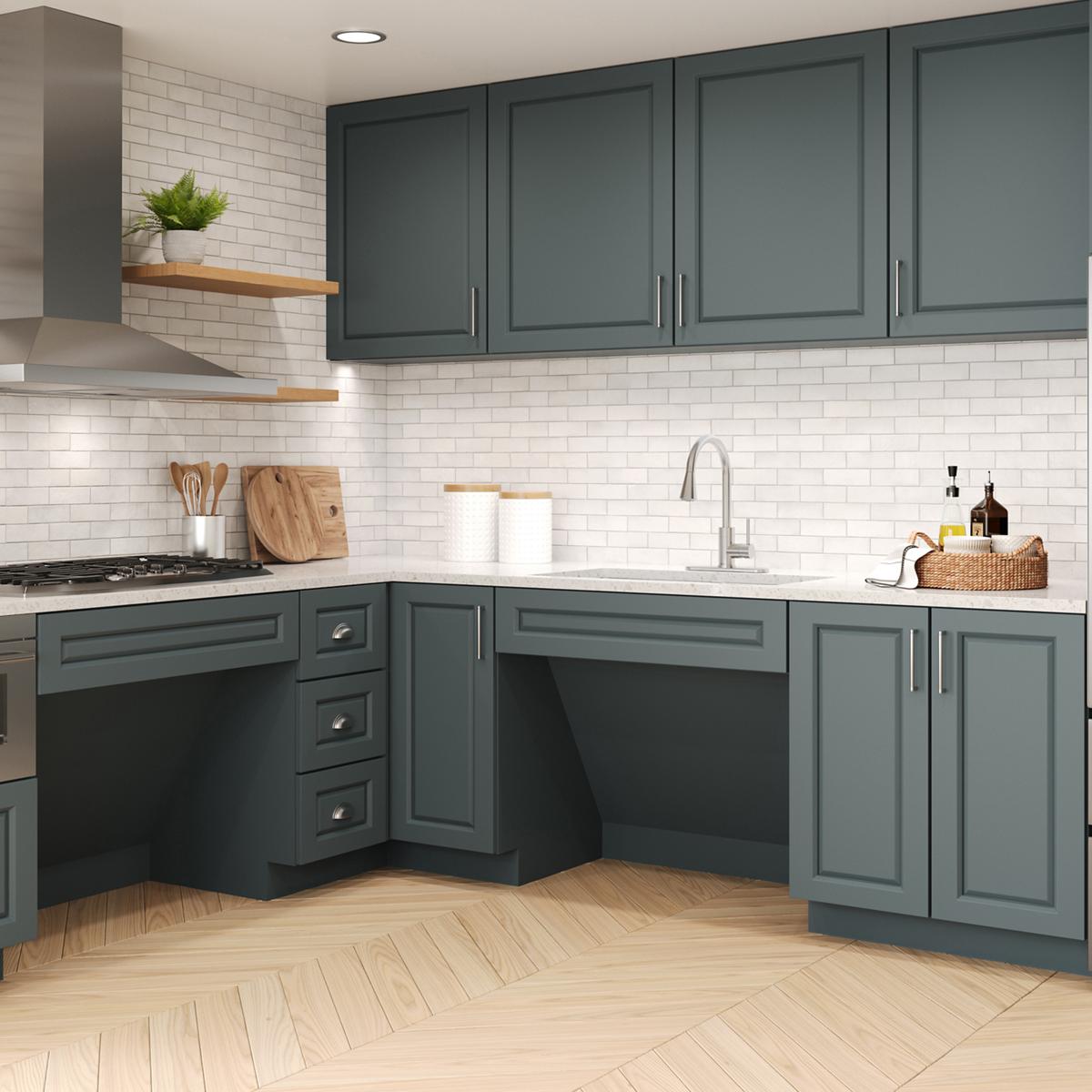

- ADA COMPLIANT: Product is ADA compliant when properly installed

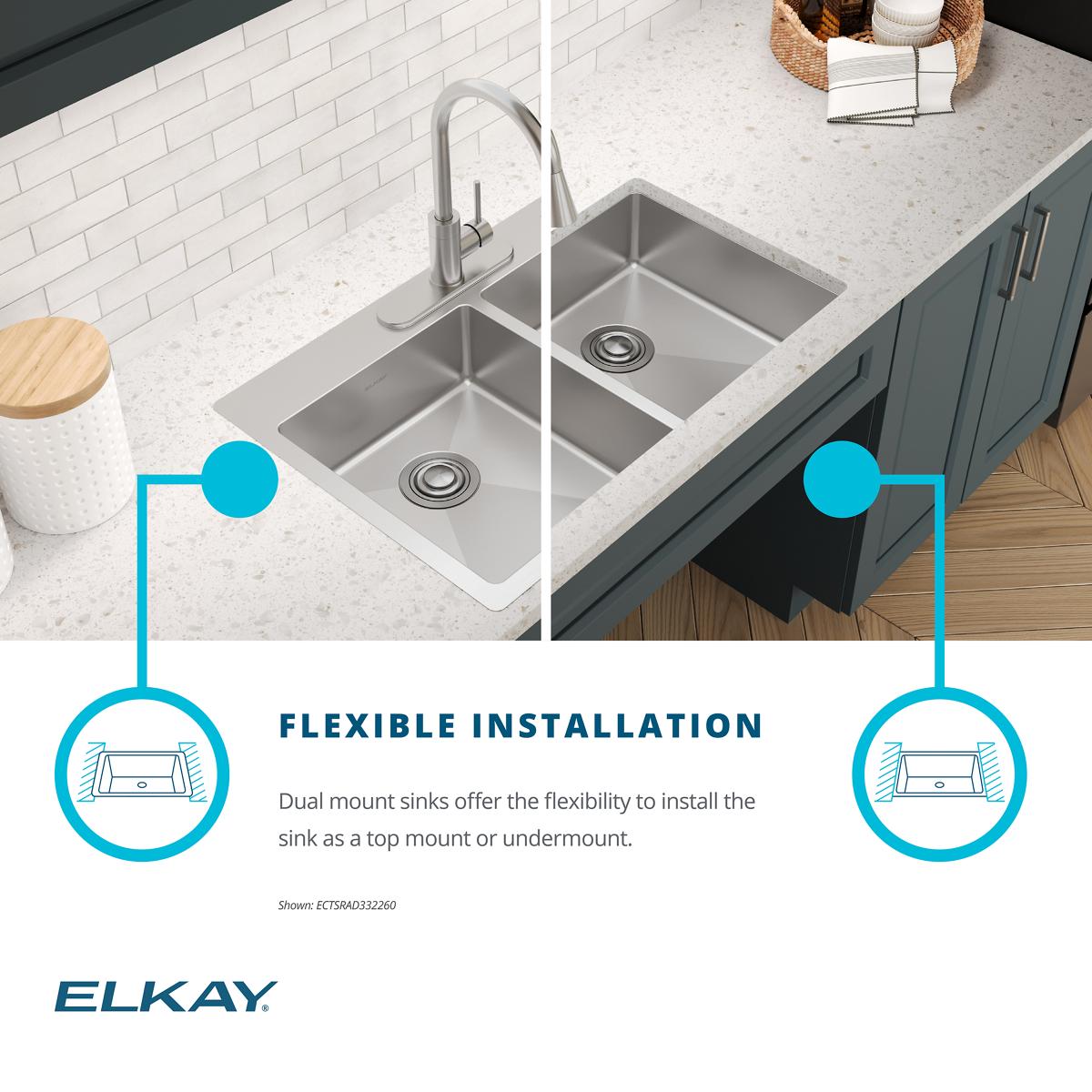

- Slim Rim: Install sink as a drop-in or undermount; ultrathin, flat rim virtually eliminates the barrier between sink and counter for a clean look

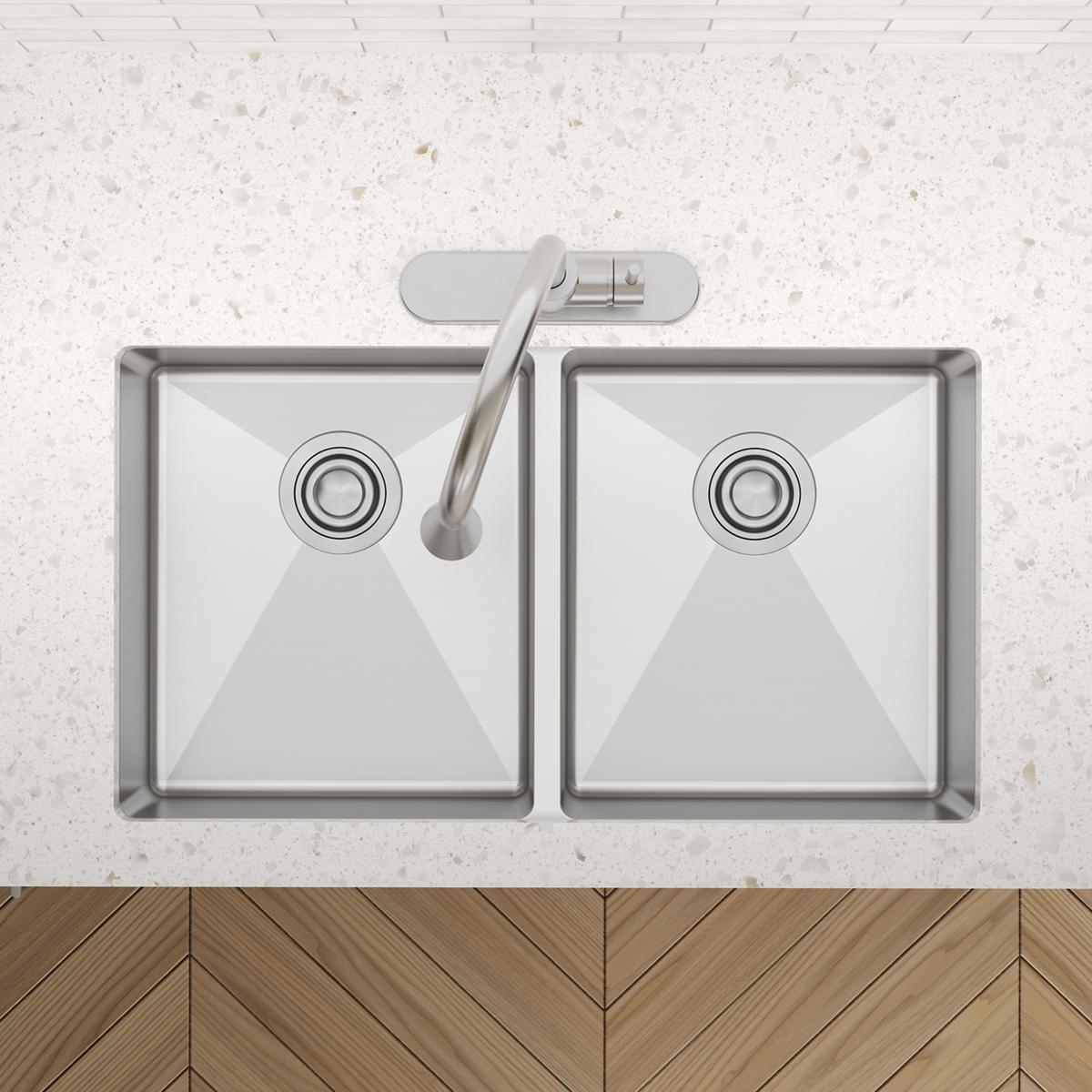

- DOUBLE BOWLS OF EQUAL SIZE: Conveniently use bowls independently for washing, soaking, rinsing, drying and other household tasks
- 18-GAUGE STAINLESS STEEL: Highest quality 18-gauge thickness and Type 304 stainless steel for lasting durability, performance and lustrous beauty

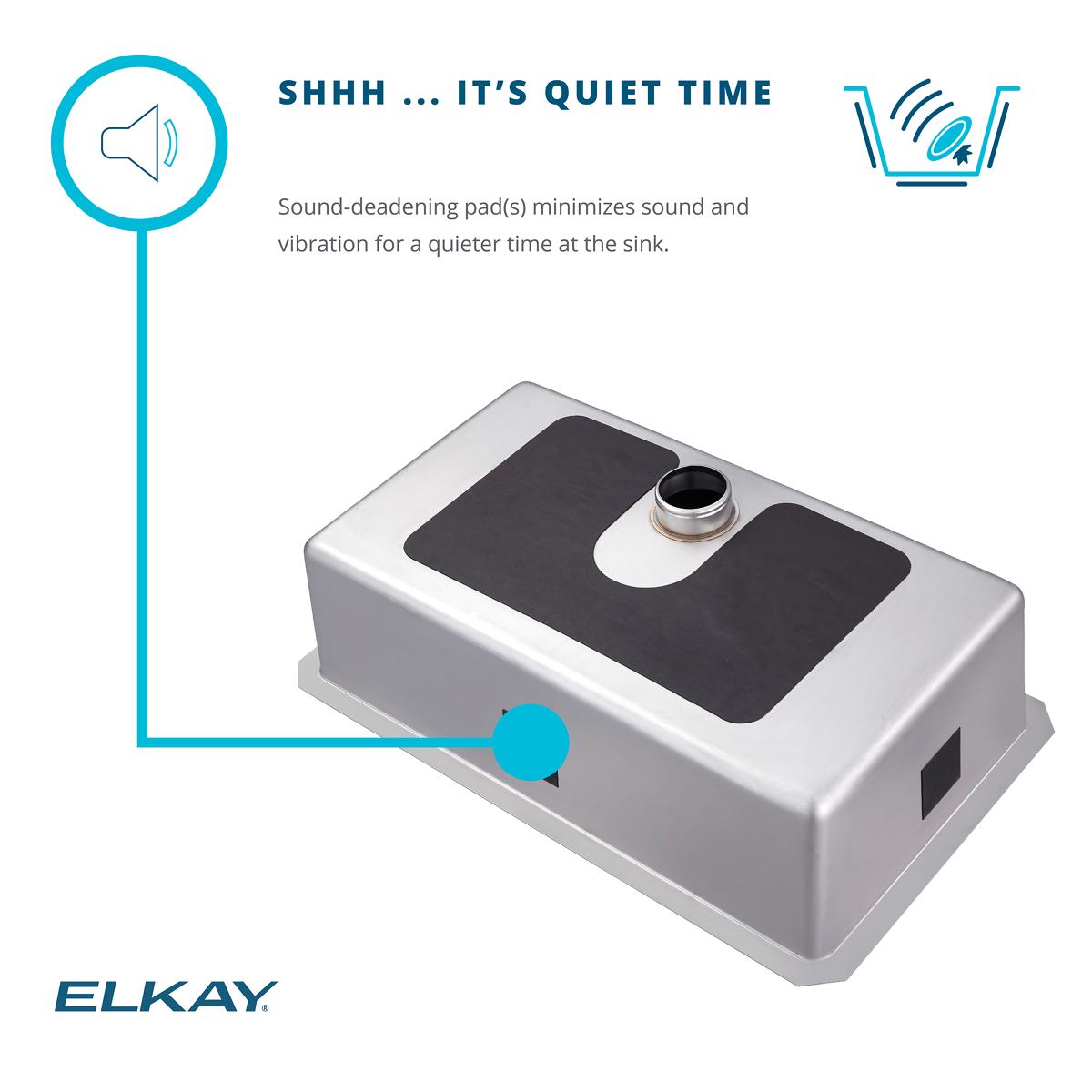

- Sound Guard: Pads and undercoating enhance sound-deadening performance for a quieter time at the sink
- TIGHT CORNERS: Fresh, geometric design offers straight sidewalls and a flat bottom for a modern look and more usable space; easy to clean
- U-CHANNEL INSTALLATION: Mounting clips placed inside the channel before installation mean less time under the sink for an easier install
- DRAIN OPENING: Sink drain opening measures 3-1/2"
- DISPOSAL READY: This sink has a drain that works with standard garbage disposals, if space allows
- CABINET SIZE: Minimum cabinet size for this sink is 36"
- California residents see Prop 65 Warnings.
Details
| ADA Compliant?: | Yes |
|---|---|
| Bowl Shape(s): | Bowl 1: Rectangular, Bowl 2: Rectangular |
| Bowl Split: | 50/50 |
| Box Height: | 8.4375" |
| Box Length: | 37.1875" |
| Box Weight: | 21 lb(s) |
| Box Width: | 25.75" |
| Code / Standard Compliance: | ASME A112.19.3, CSA B45.4, NPCC |
| Collection: | Crosstown |
| Color: | Polished Satin |
| Country of Origin: | China |
| Drain Size: | Bowl 1: 3.5", Bowl 2: 3.5" |
| Finish: | Polished Satin |
| Freight Class (LTL Only): | 125 |
| Gauge: | 18 |
| Inner Depth: | 6" |

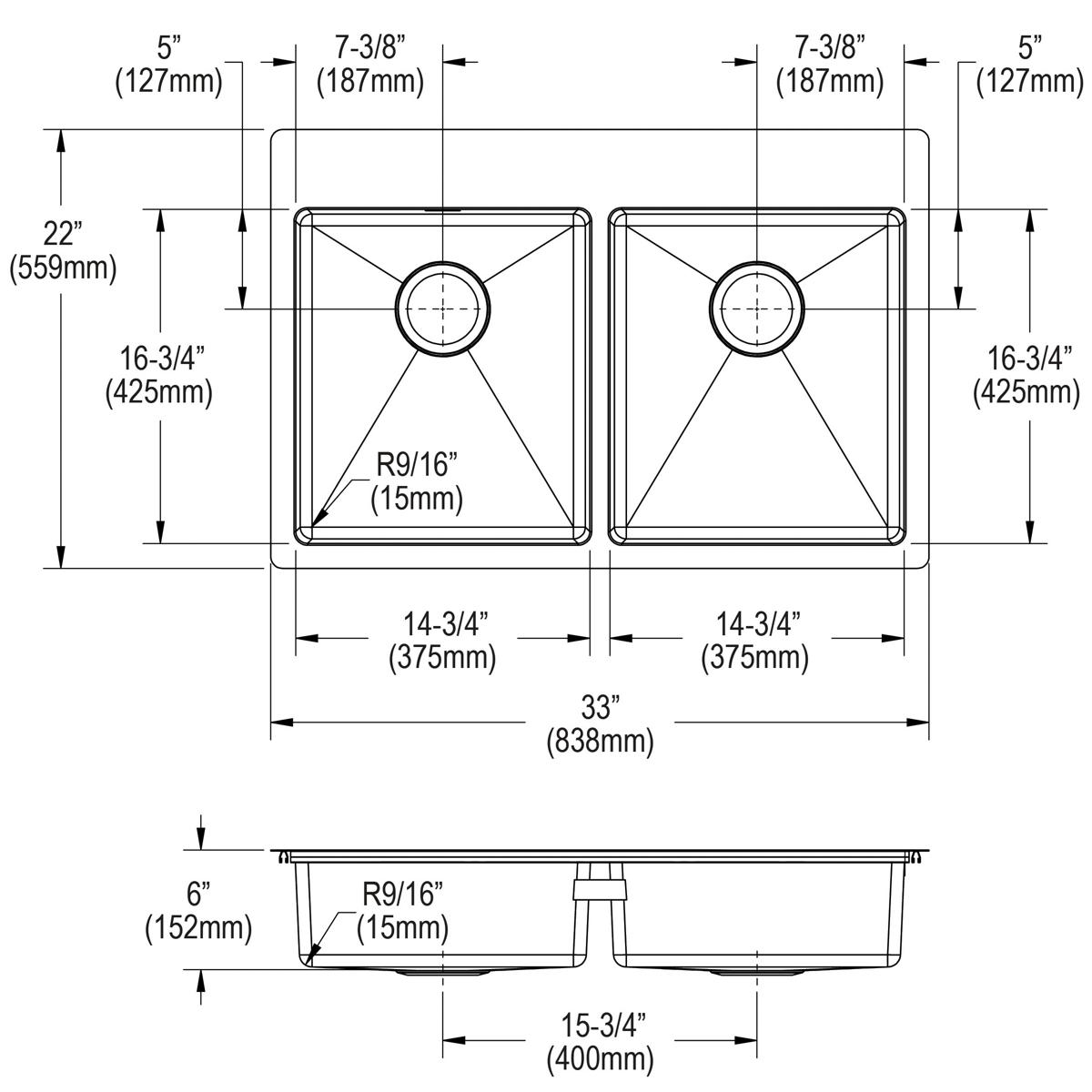

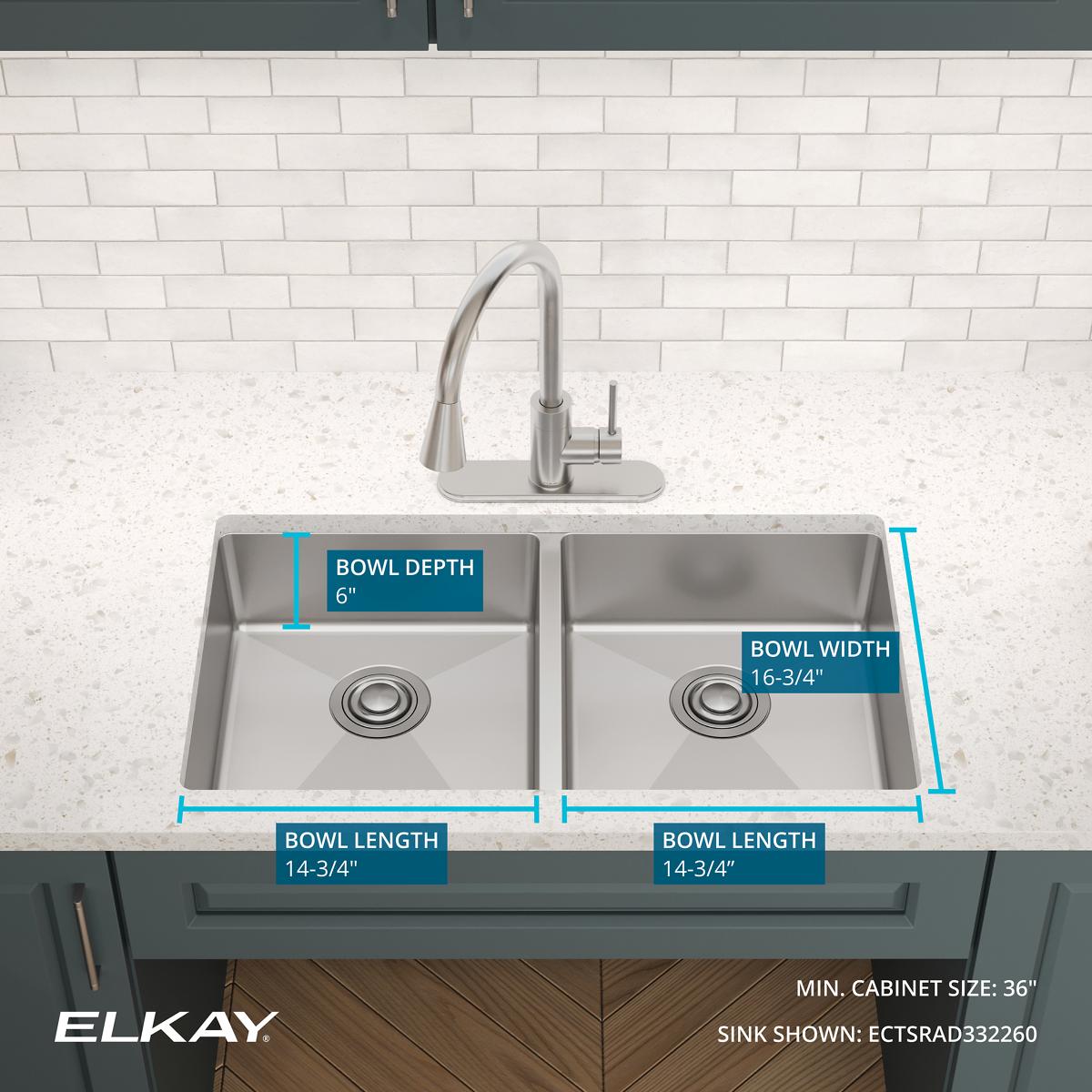

| Inside Bowl Dimensions: | Bowl 1: 16.75" x 14.75" x 6", Bowl 2: 16.75" x 14.75" x 6" |
| Installation Type: | Dual Mount |
| Item Height: | 6" |
| Item Length (Front to Back): | 22" |
| Item Weight: | 18 lb(s) |
| Item Width (Side to Side): | 33" |
| Material: | Stainless Steel |
| Minimum Cabinet Size: | 36" |
| Mounting Hardware Included: | Part # 54300008 included |
| Number of Bowls: | 2 |
| Number of Faucet Holes: | 1 |
| Room: | Kitchen |
| SKU: | ECTSRAD3322601 |
| Shape: | Rectangle |
| Sound Deadening: | Full spray sides and bottom with Sides and Bottom pads |
| Style: | Transitional |
| cUPC Certified?: | Yes |
Warranty
Elkay Warranty Details (PDF)
Installation Instructions
Installation Instructions 1 (PDF)
Product Specifications (PDF)
Product Care
Elkay Product Care (PDF)
Video(s)
Product Video 1
Product Video 2
keywords, Crosstown, 3322, 33 x 22, 33x22, rear drain, offset drain, off set drain
