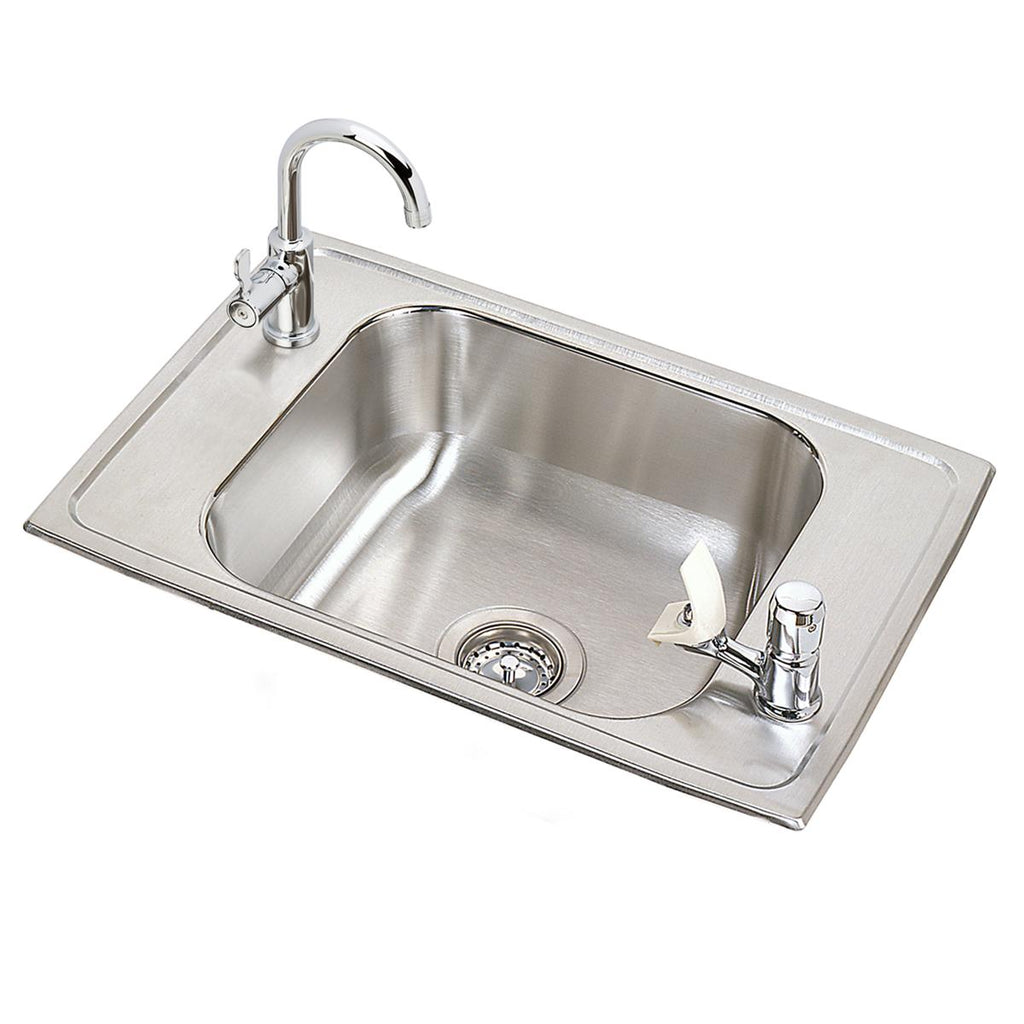

Elkay Celebrity 25" Drop In/Topmount Stainless Steel Classroom Sink Kit with Faucet, Brushed Satin, 2 Faucet Holes, CDKRC2517C
Elkay has been a trusted name in stainless steel since 1920. We are proud to be America's No. 1 selling kitchen sink company. In addition, we offer prep, bar, bath and laundry sinks. Elkay commercial sinks can be found in public spaces such as classrooms, office buildings, health care facilities, parks and recreation areas and more. Available in ADA depths.
Please see our color disclaimer.
Features
- DROP-IN INSTALLATION: Sink is designed for drop-in installation to make the sink a focal point of your room

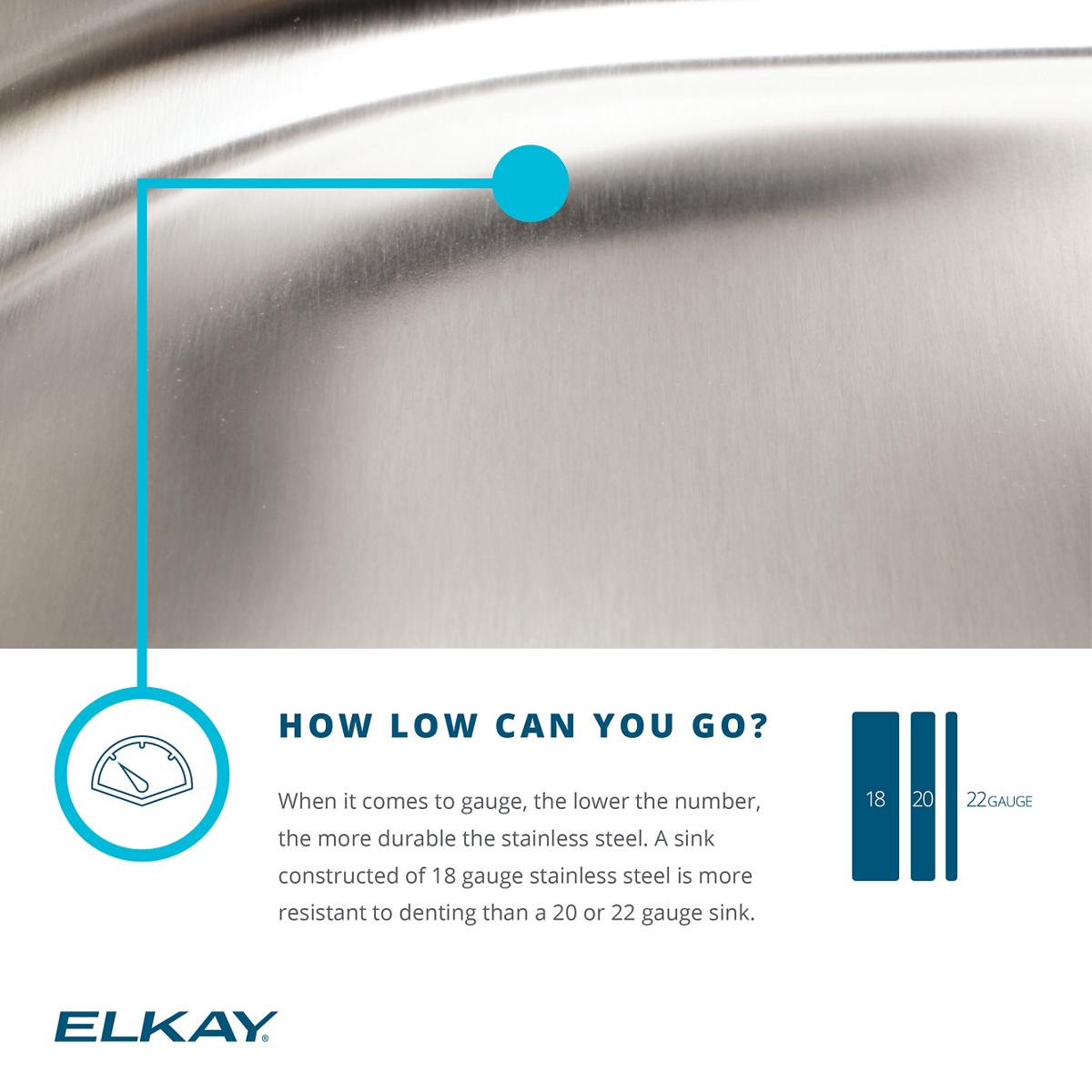

- 20-GAUGE STAINLESS STEEL: Highest grade 20-gauge thickness and Type 304 stainless steel for everyday lasting durability, performance and finish.
- QUIET: Sound-deadening pad(s) minimizes sound and vibration for a quieter time at the sink

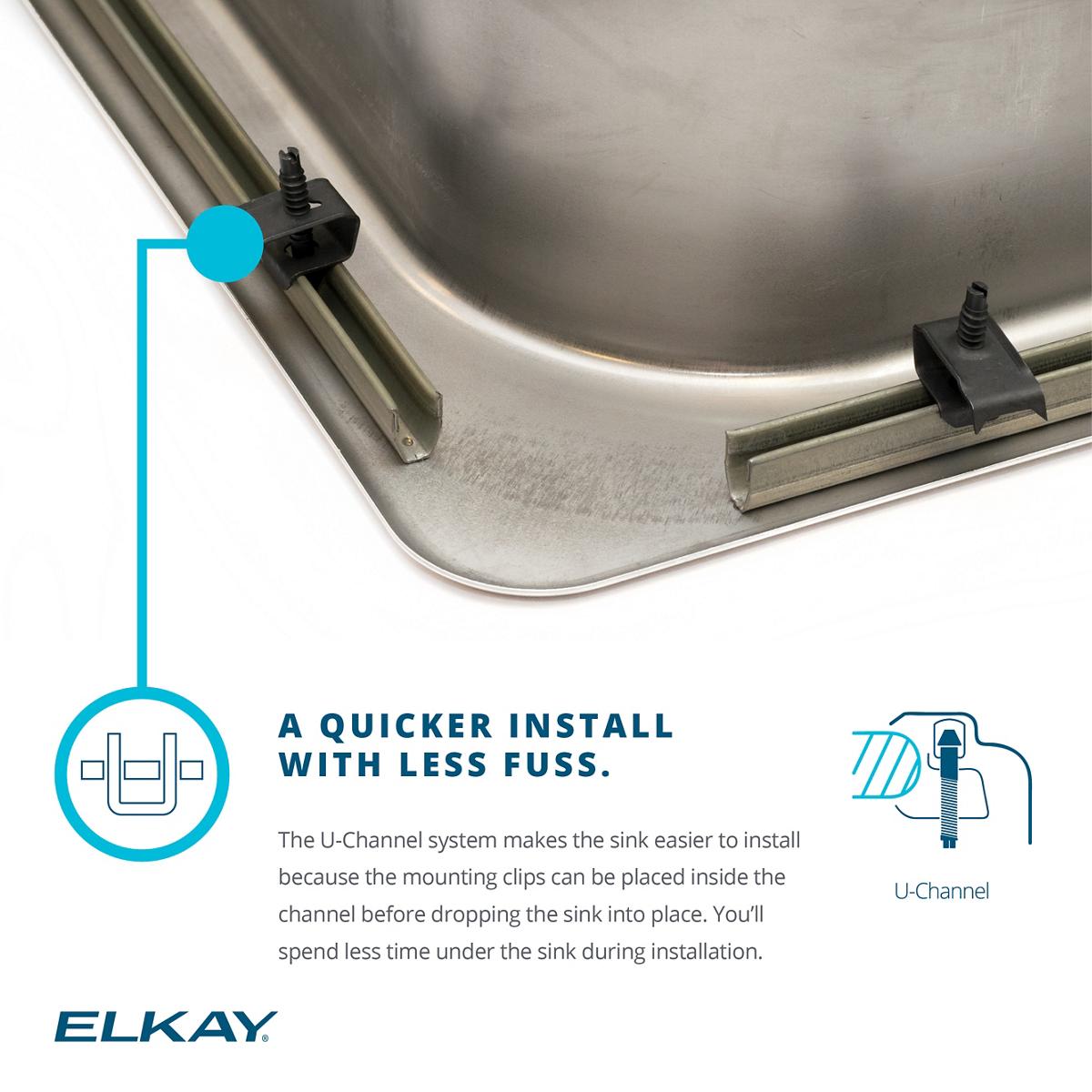

- U-CHANNEL INSTALLATION: Mounting clips placed inside the channel before installation mean less time under the sink for an easier install
- CENTER DRAIN: Drain is conveniently placed in the center of the sink.
- DRAIN OPENING: Sink drain opening measures 3-1/2"
- DISPOSAL READY: This sink has a drain that works with standard garbage disposals, if space allows
- CABINET SIZE: Minimum cabinet size for this sink is 30".

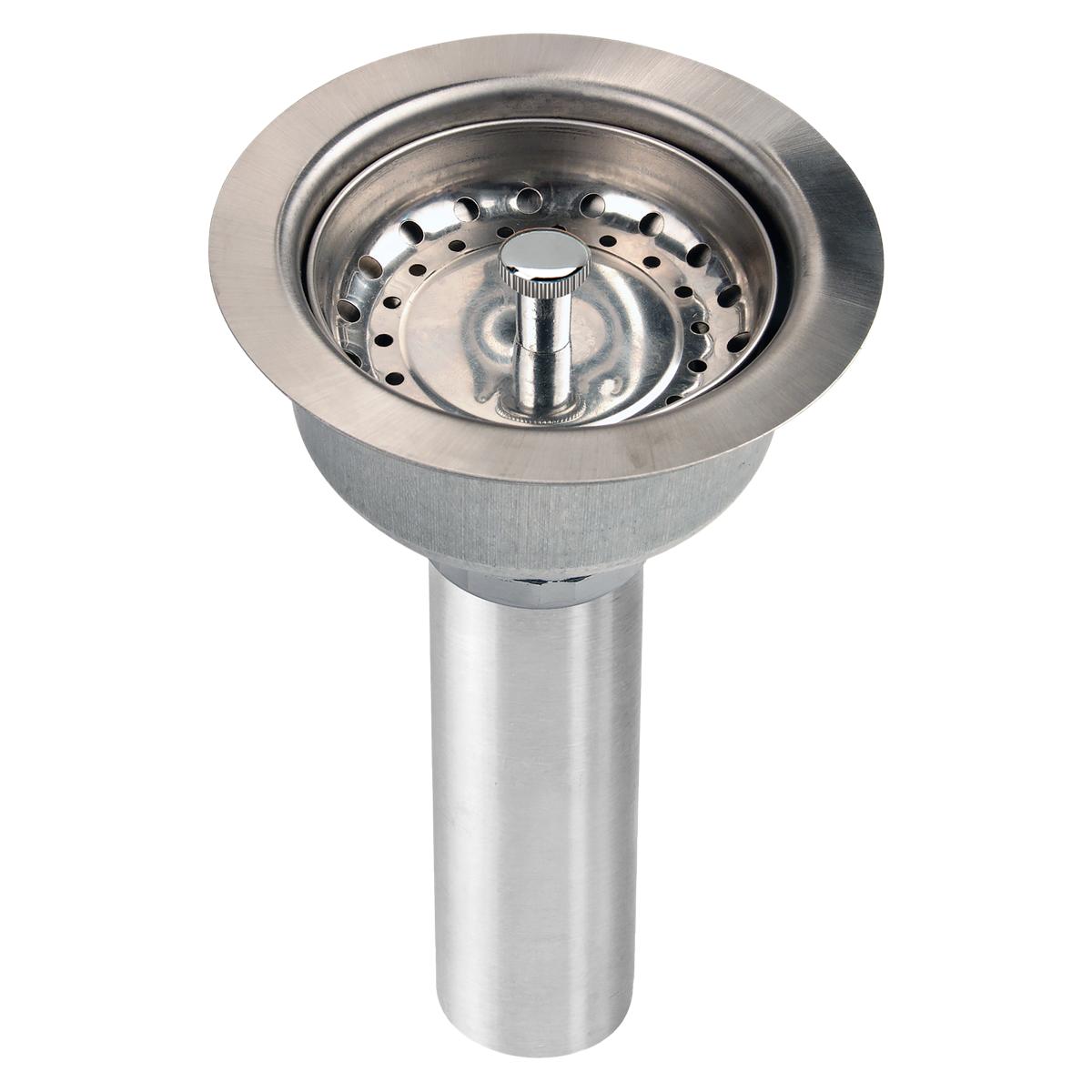

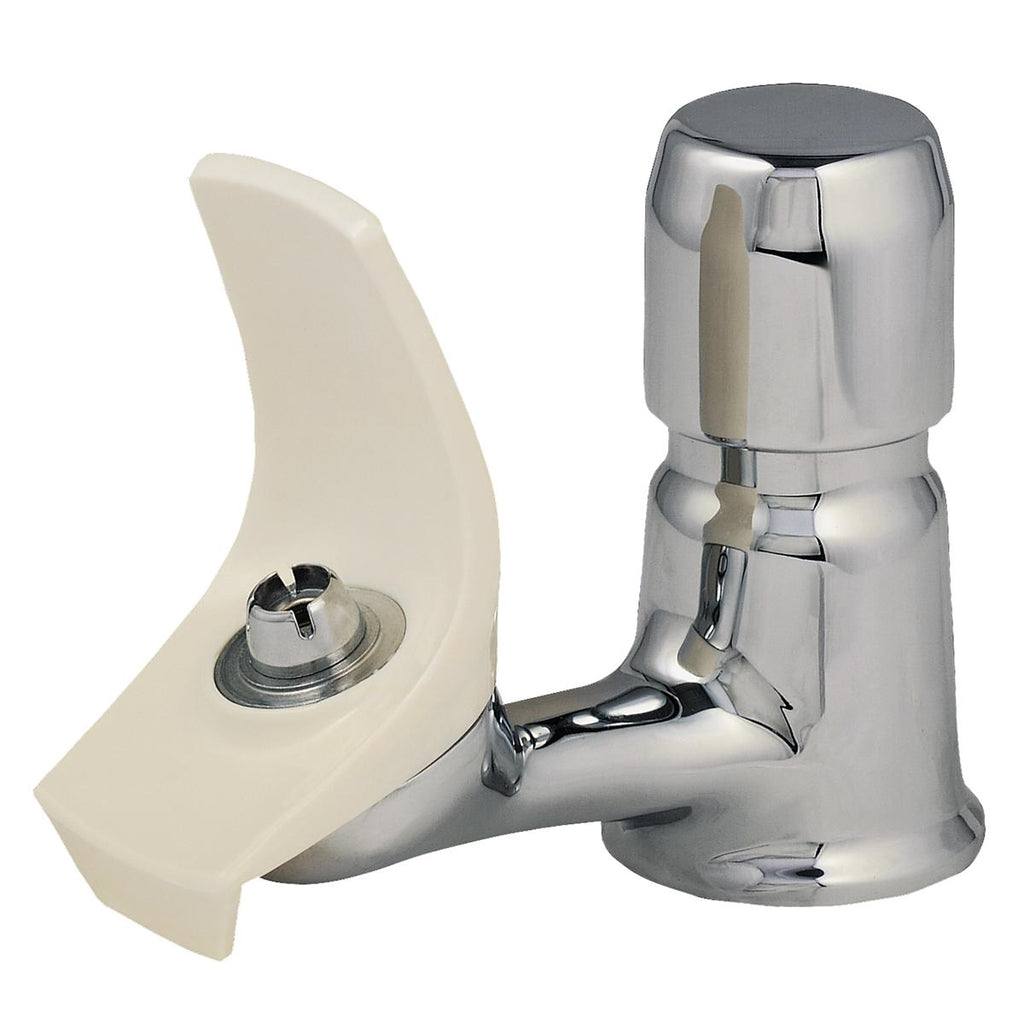

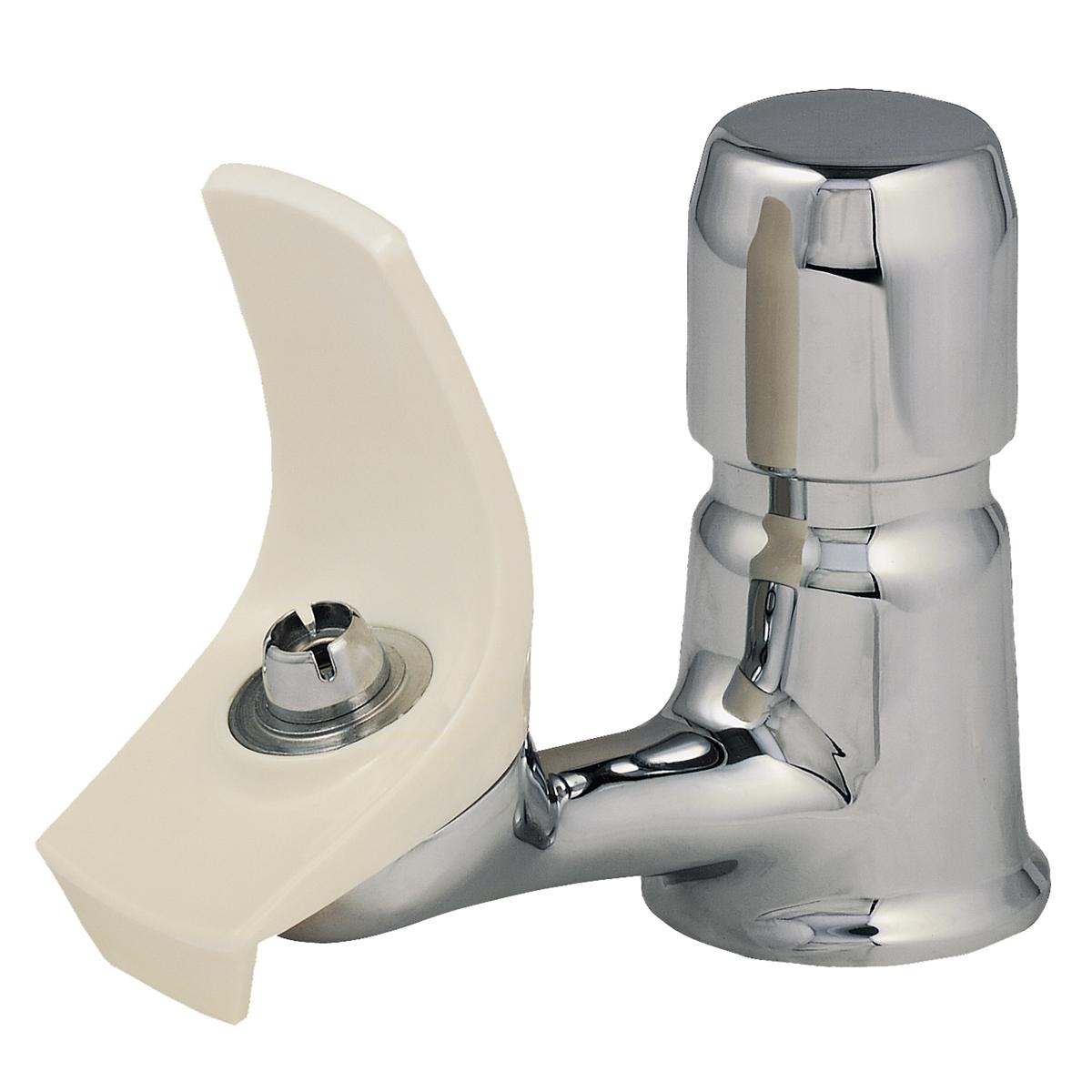

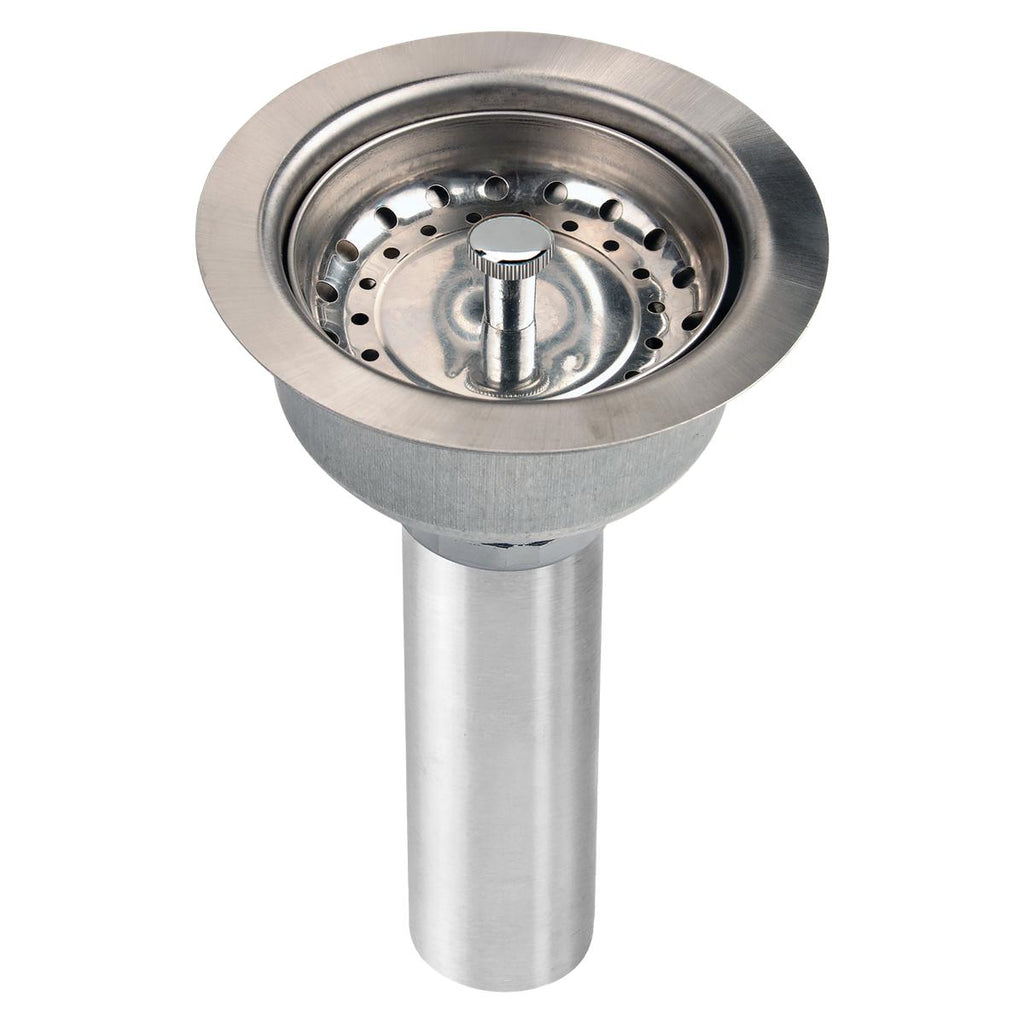

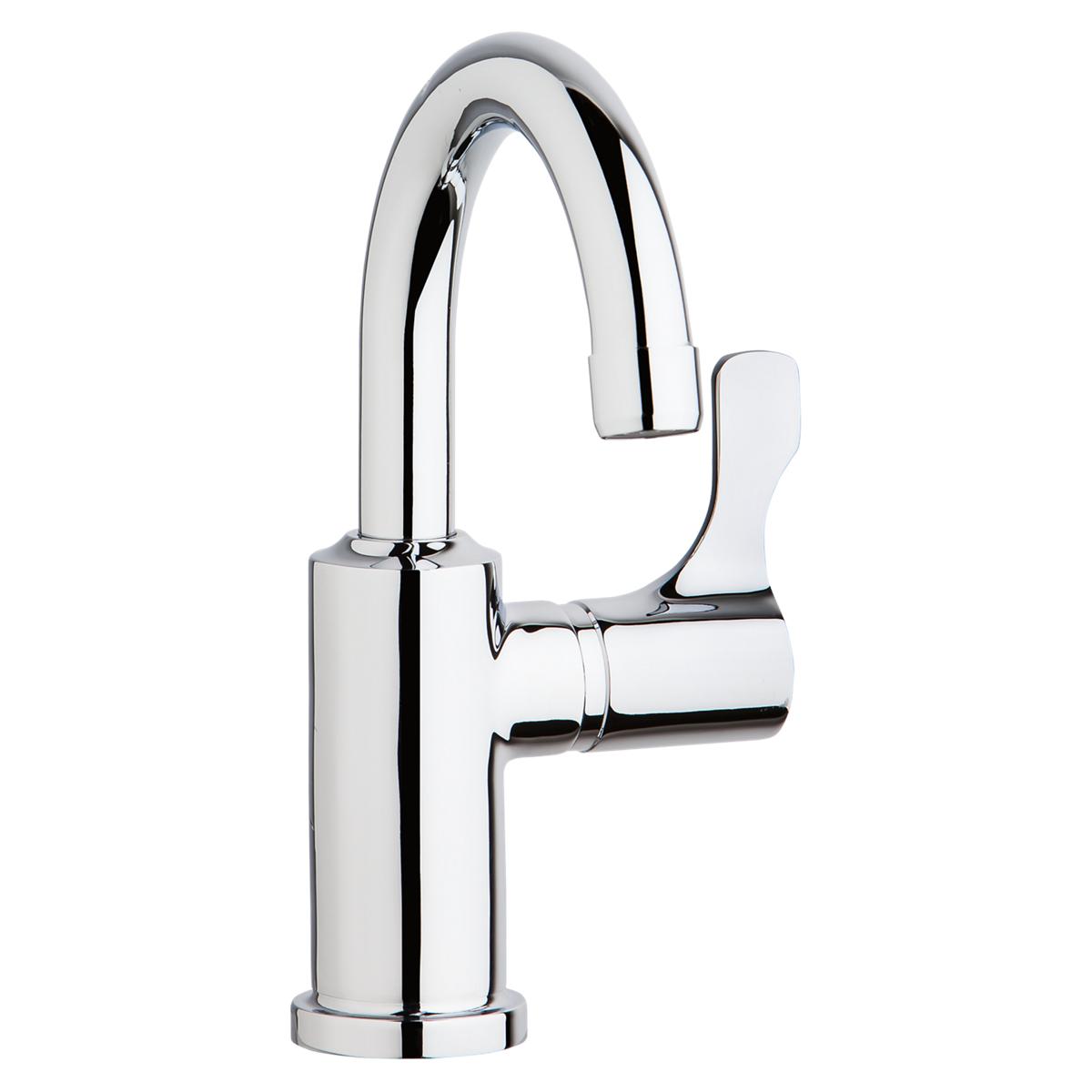

- KIT INCLUDES: LKD20858C faucet, LKJ35 drain, LK1141A bubblers; conveniently packaged together to save you time.
- California residents see Prop 65 Warnings.
Details
Application: | Classroom |
---|---|
Bowl Shape(s): | Rectangular |
Bowl Split: | Single |
Box Height: | 10.51" |
Box Length: | 37.72" |
Box Weight: | 22.25 lb(s) |
Box Width: | 26.28" |
Code / Standard Compliance: | CEC Listed, ASME A112.19.3; ASME A112.18.1; ASME A112.18.2, CSA B45.4; CSA B125.1; CSA B125.2, NSF Standard 61, NSF Standard 372, NPCC, Lead Law Compliant, Lead Leaching NSF61/AB100 Compliant |
Collection: | Celebrity |
Color: | Brushed Satin |

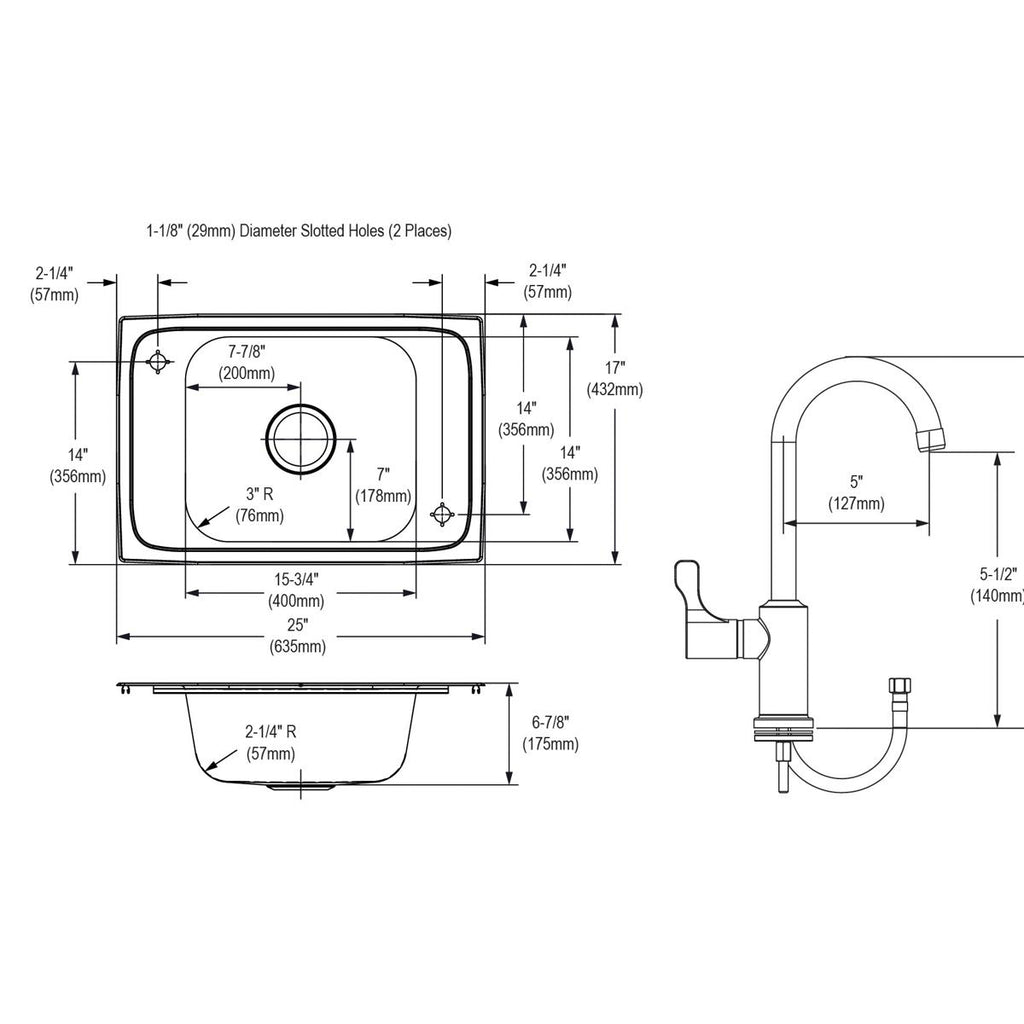

Cutout Dimension: | 24-3/8" x 16-3/8" (619mm x 416mm) with 1-1/2" (38mm) corner radius |
Drain Included?: | Yes |
Drain Size: | 3.5 |
Finish: | Brushed Satin |
Freight Class (LTL Only): | 250 |
Gauge: | 20 |
Harmonized System Code: | 7324100010 |
Included with Product: | LKD208513LC faucet, LKJ35 drain, LK1141A bubblers |
Inner Depth: | 6.875" |
Inside Bowl Dimensions: | 14" x 15.75" x 6.75" |
Installation Type: | Drop In/Topmount |
Item Height: | 6.875" |
Item Length (Front to Back): | 17" |
Item Weight: | 15 lb(s) |
Item Width (Side to Side): | 25" |
Material: | Stainless Steel |
Minimum Cabinet Size: | 30" |
Mounting Hardware Included: | Part # 64090012 included for countertops up to 3/4" (19mm) thick (1 qty) |
NSF ANSI61 Certified?: | Yes |
Number of Bowls: | 1 |
Number of Faucet Holes: | 2 |
SKU: | CDKRC2517C |
Shape: | Rectangular |
Sound Deadening: | Bottom only pads |
cUPC Certified?: | Yes |
Warranty
Elkay Warranty Details (PDF)
Installation Instructions
Installation Instructions 1 (PDF)
Product Specifications (PDF)
Product Care
Elkay Product Care (PDF)
Video(s)
Product Video
