Description

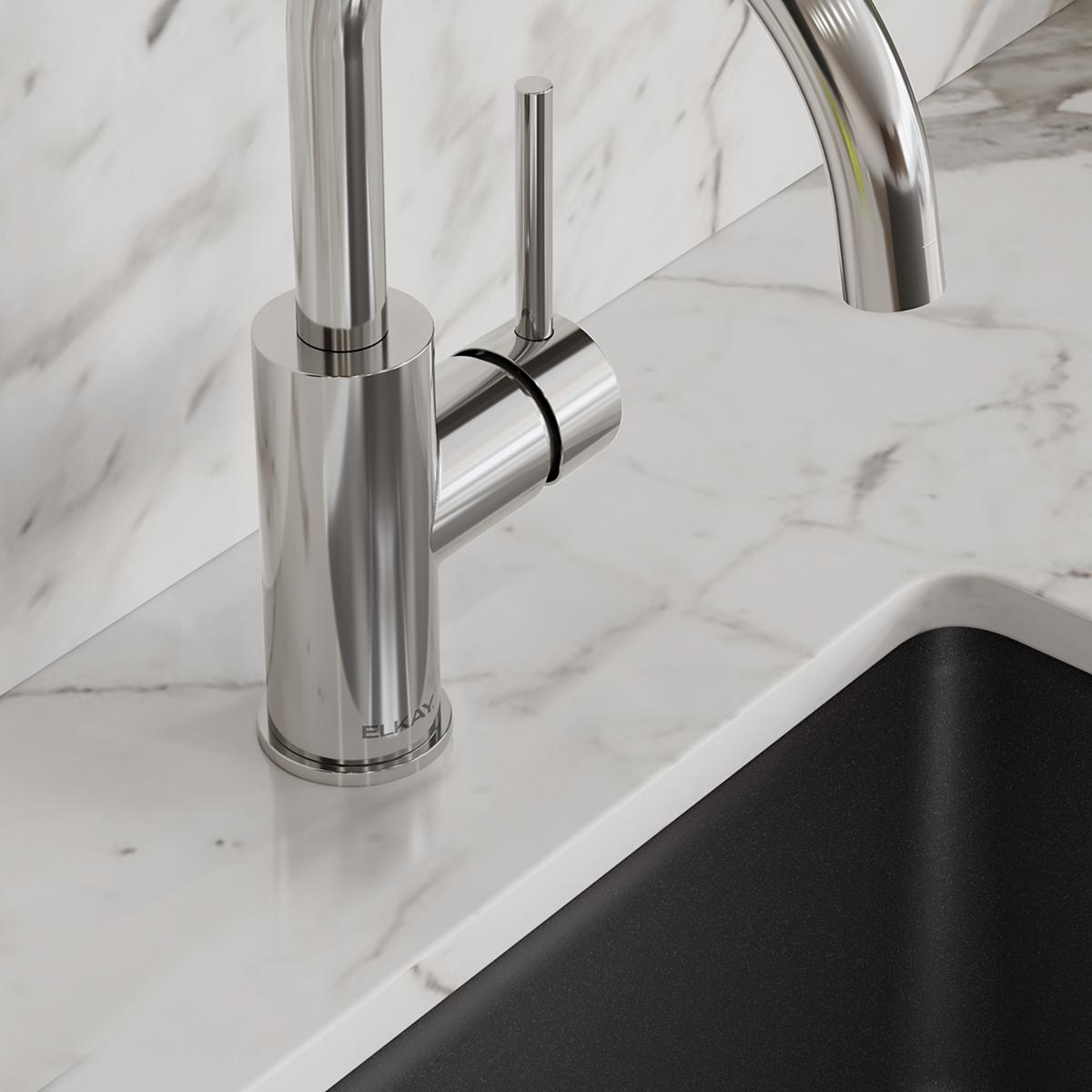

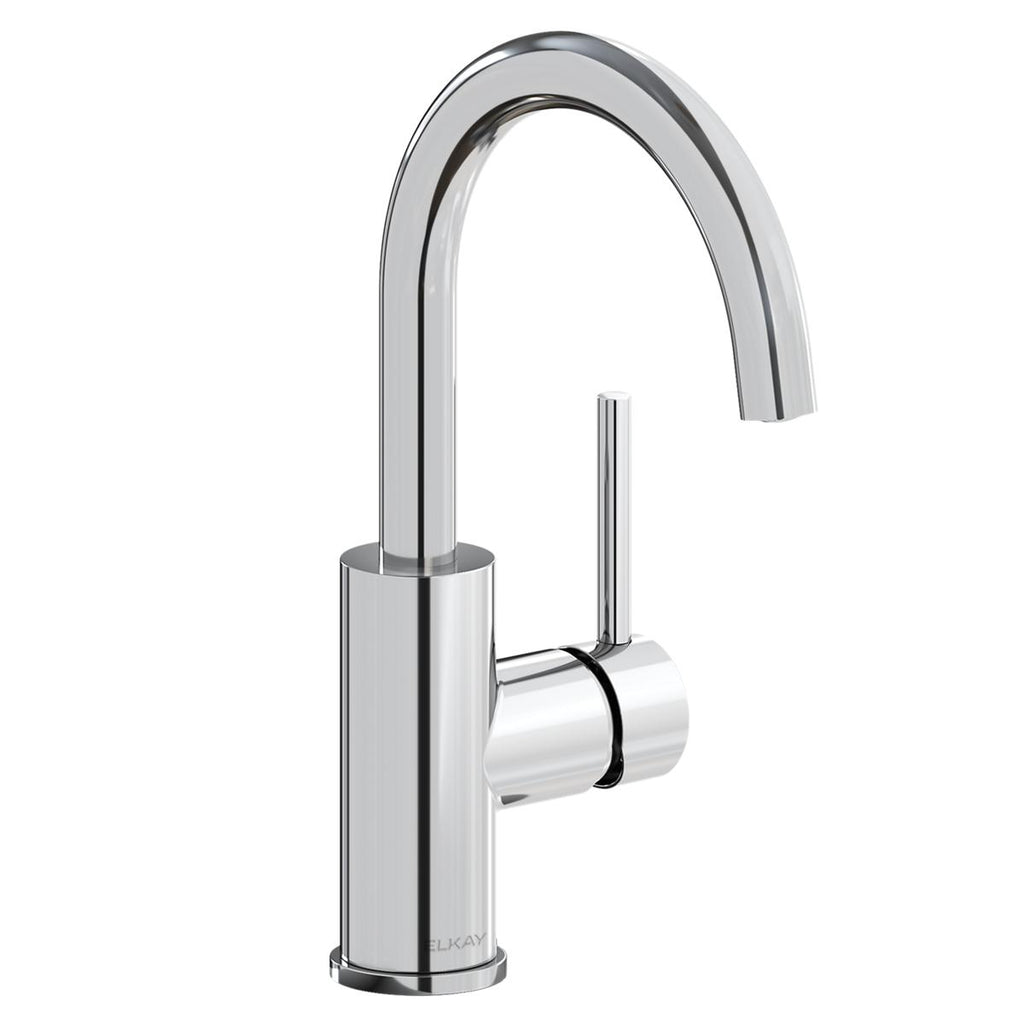

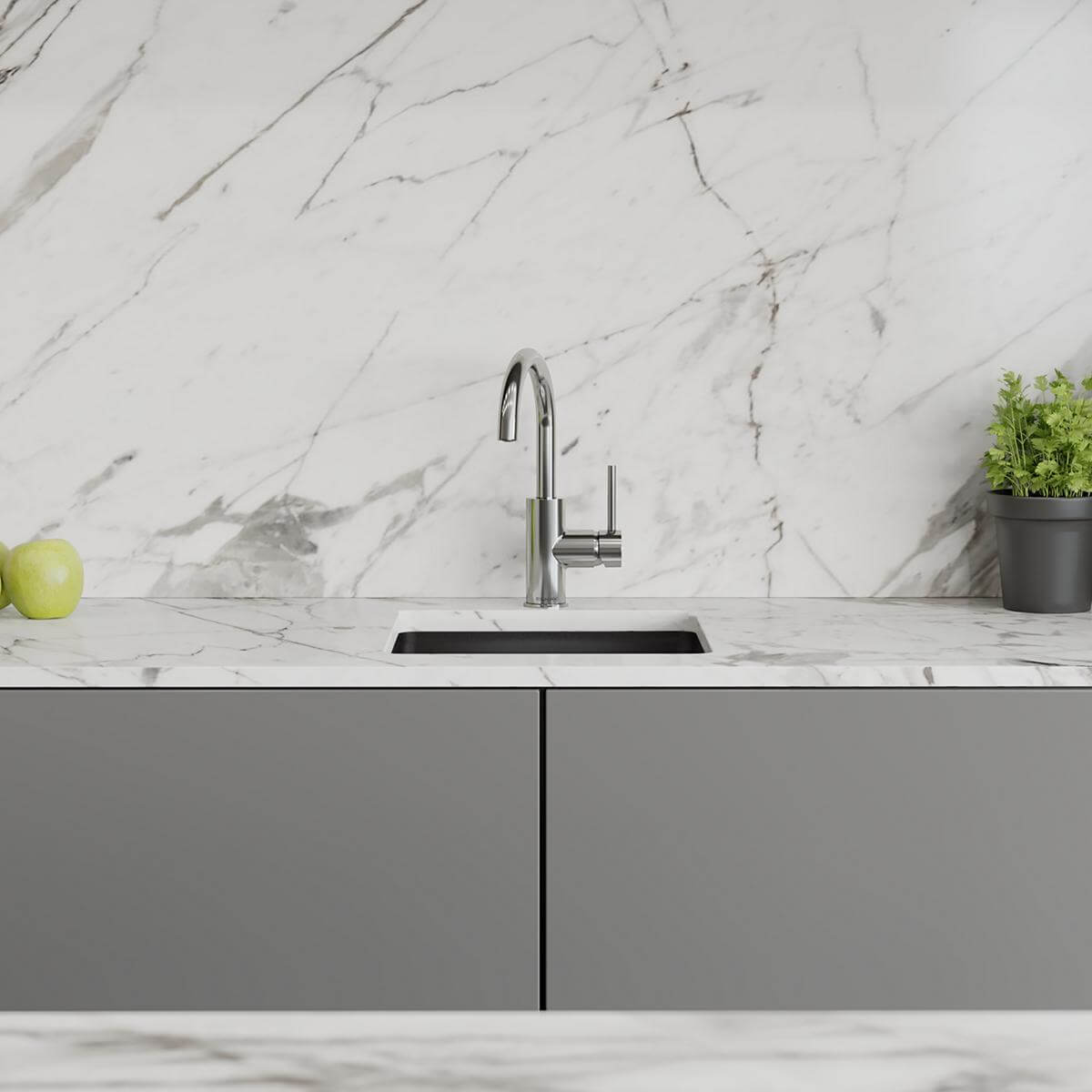

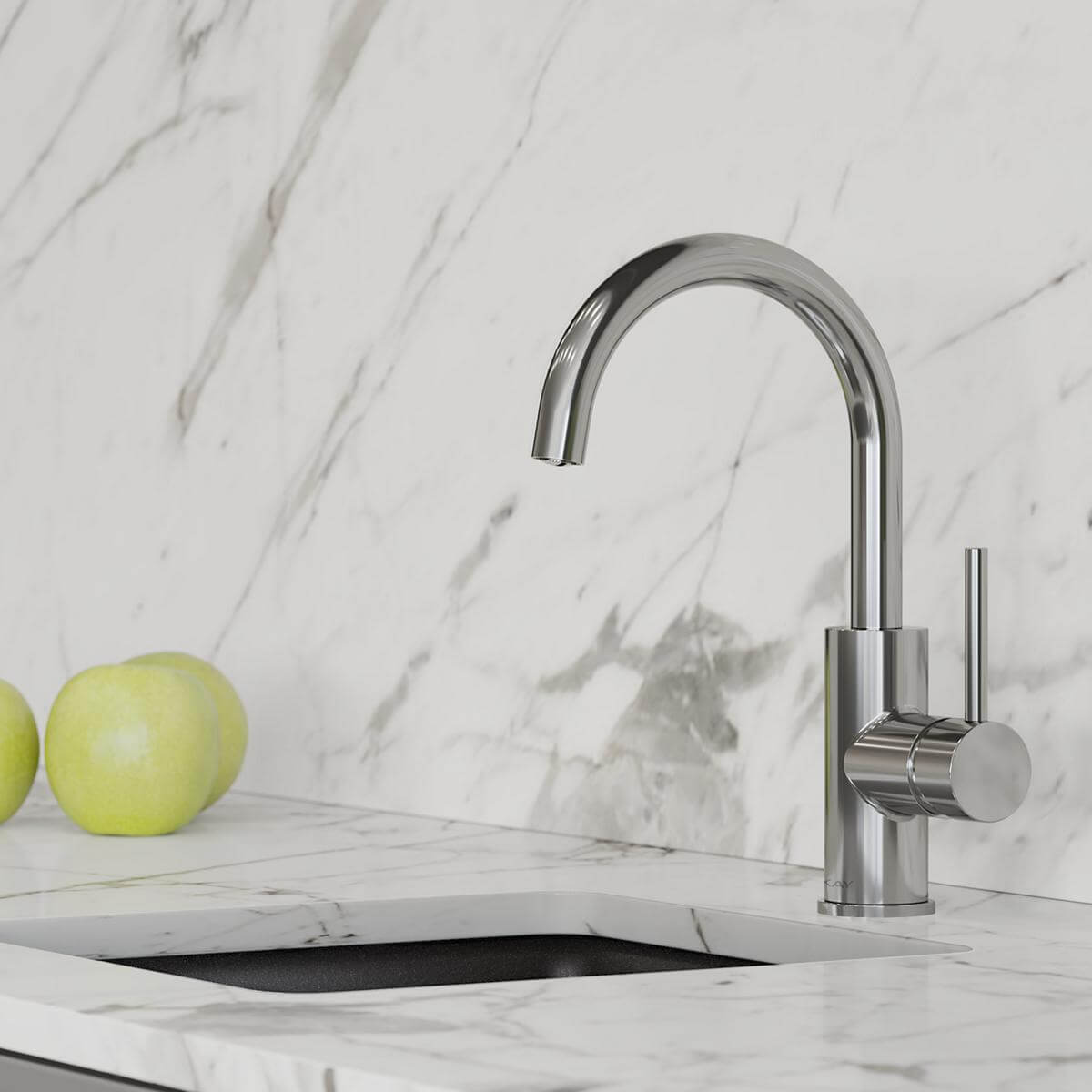

Elkay Avado Lever Handle Gooseneck Spout Brass ADA Bar Faucet, Chrome, LKAV3021CR
Whether you're looking for a faucet for your home or for commercial use, there's an Elkay faucet to meet your needs. From the kitchen and bath, to the laundry, we have stylish designs to complement every decor. Our commercial faucets are ideal for offices, classrooms, health care facilities, foodservice applications and more.

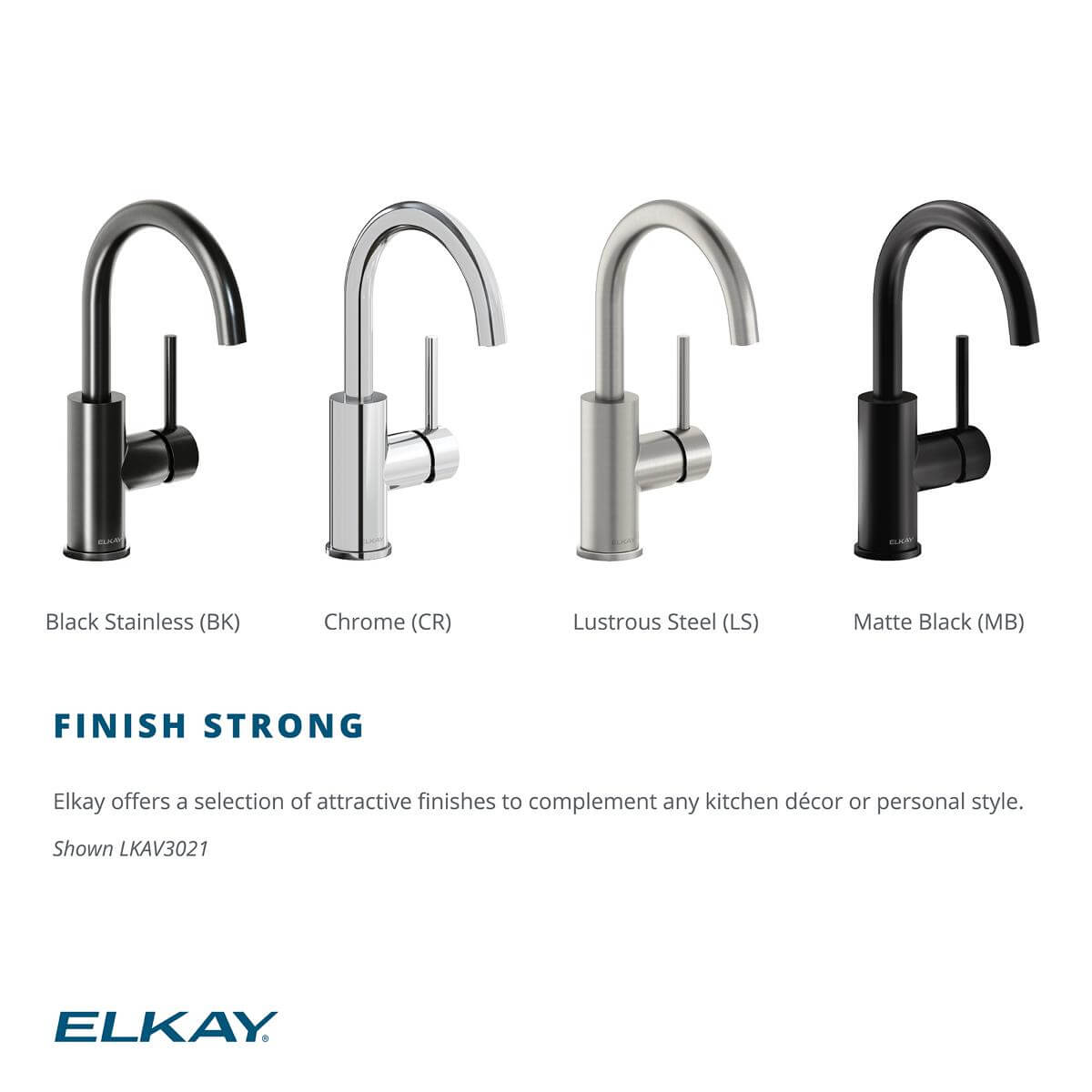

Available In:
Please see our color disclaimer.
Features

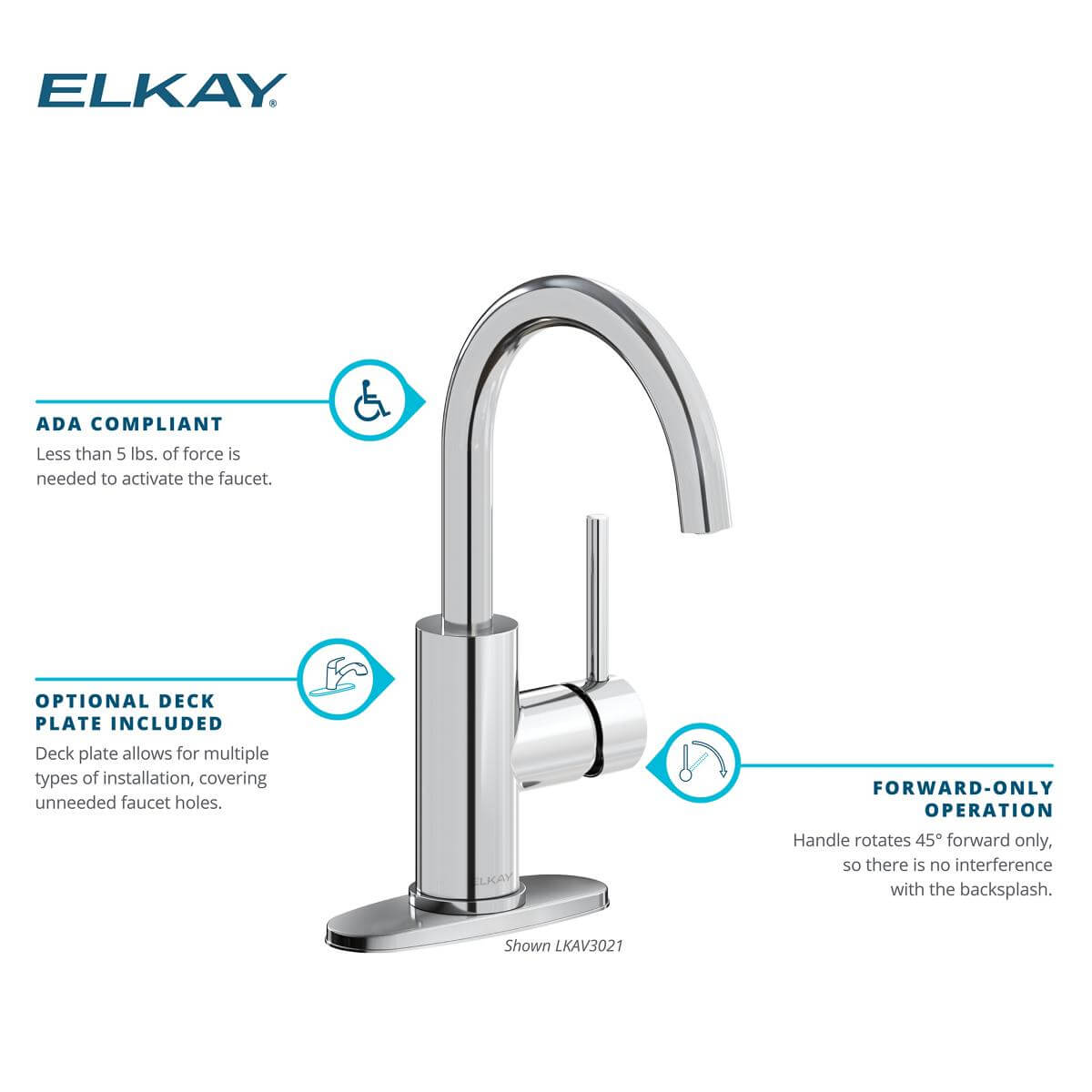

- SINGLE-HANDLE OPERATION: Handle rotates 45° forward and backward.
- CERAMIC DISC CARTRIDGE: Provides durable and reliable performance; removable for easy replacement.
- ONE FAUCET HOLE: Faucet designed to be installed using one faucet hole.
- OPTIONAL ESCUTCHEON INCLUDED: Cover plate allows for multiple types of installations.
- LEAD-FREE COMPLIANT: Certified to NSF/ANSI 61 and 372 to meet all federal and state regulations for low or no-lead products.
- ADA COMPLIANT: Faucet is ADA compliant.
- California residents see Prop 65 Warnings.
Details
| ADA Compliant?: | Yes |
|---|---|
| Application: | Residential/MultiFamily |
| Box Height: | 3" |
| Box Length: | 21" |
| Box Weight: | 4.57 lb(s) |
| Box Width: | 9" |
| Cartridge Type: | Ceramic Disc |
| Code / Standard Compliance: | CEC Listed, ASME A112.18.1, CSA B125.1, NSF Standard 61, NSF Standard 372, NPCC, Lead Law Compliant, Lead Leaching NSF61/AB100 Compliant |
| Collection: | Avado |
| Color: | Chrome |
| Country of Origin: | China |
| Deck Clearance (in.): | 8.22 |
| End Connection: | 3/8" Female Compression Hose Assembly |
| Faucet Hole Size (in.): | 1.5 |
| Faucet Hole Spread: | 0 |
| Finish: | Chrome |
| Freight Class (LTL Only): | 77.5 |
| Handle Type: | Lever Handle |
| Harmonized System Code: | 8481801030 |
| Installation Type: | Deck Mounted |
| Item Height: | 12.19" |
| Item Length (Front to Back): | 6.38" |
| Item Weight: | 1.3 lb(s) |
| Item Width (Side to Side): | 8.05" |
| Material: | Brass |
| Max. Deck Thickness (in.): | 3 |
| Mount: | Deck Mount |
| Flow Rate: | 1.8 GPM |
| NSF ANSI61 Certified?: | Yes |
| Number of Handles: | 1 |
| Required Holes: | 1 |
| SKU: | LKAV3021CR |
| Spout Height: | 12.19" |
| Spout Reach: | 6.51" |
| Spout Style: | Gooseneck |
| Spray Type: | Standard |
| cUPC Certified?: | Yes |
Warranty
Installation Instructions
Installation Instructions 1 (PDF)
Installation Instructions 2 (PDF)
Product Specifications (PDF)
Product Care
Video(s)
Product Video 1
Product Video 2
