Description

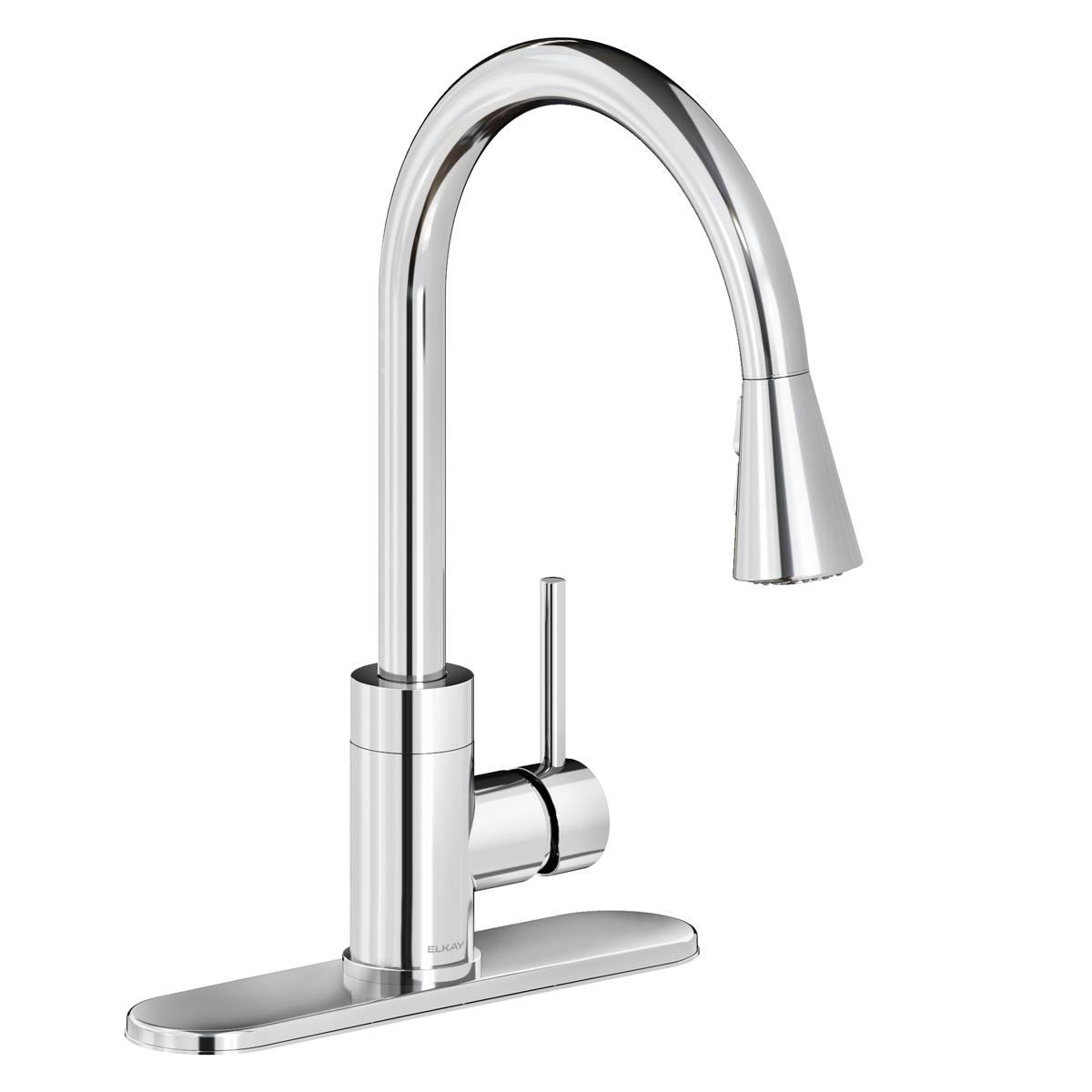

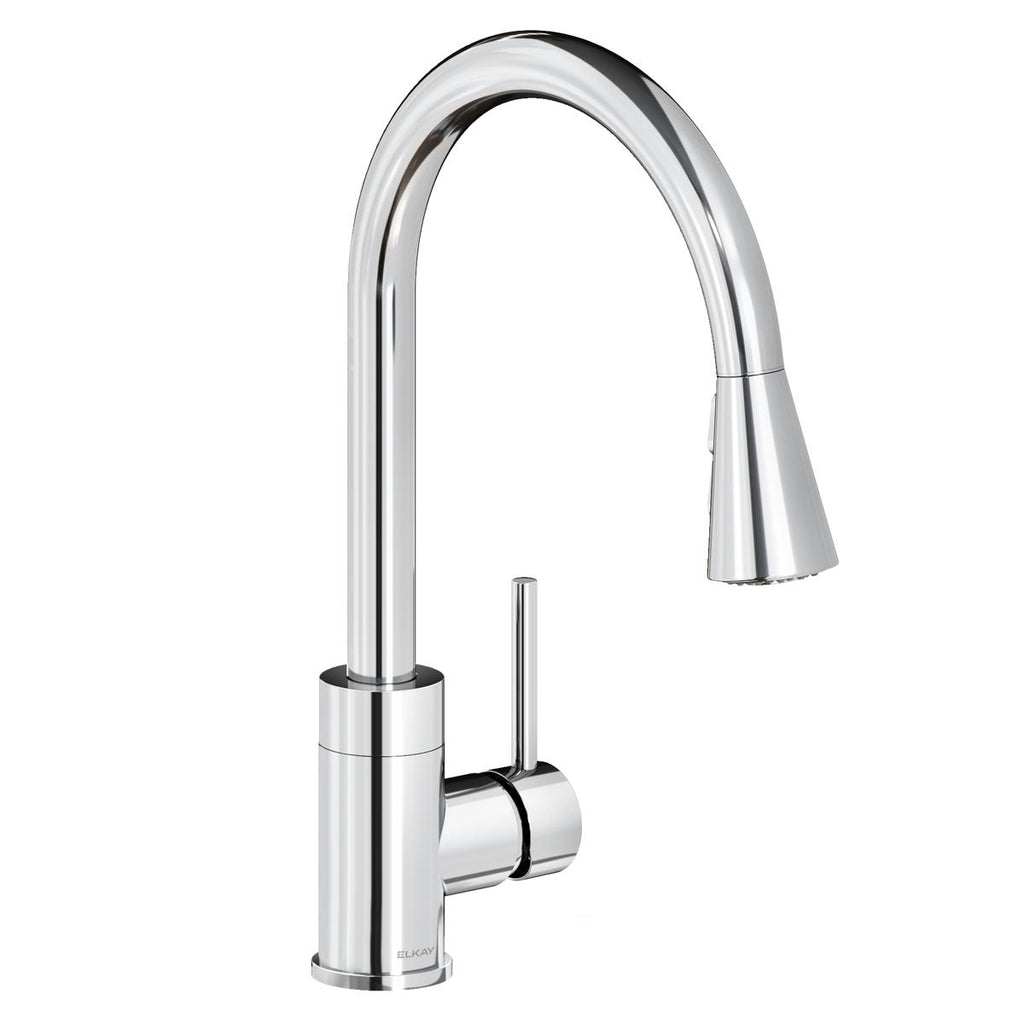

Elkay Avado Forward Only Lever Handle Pull-down Spray Spout Brass ADA Kitchen Faucet, Chrome, LKAV3031CR
Whether you're looking for a faucet for your home or for commercial use, there's an Elkay faucet to meet your needs. From the kitchen and bath, to the laundry, we have stylish designs to complement every decor. Our commercial faucets are ideal for offices, classrooms, health care facilities, foodservice applications and more.

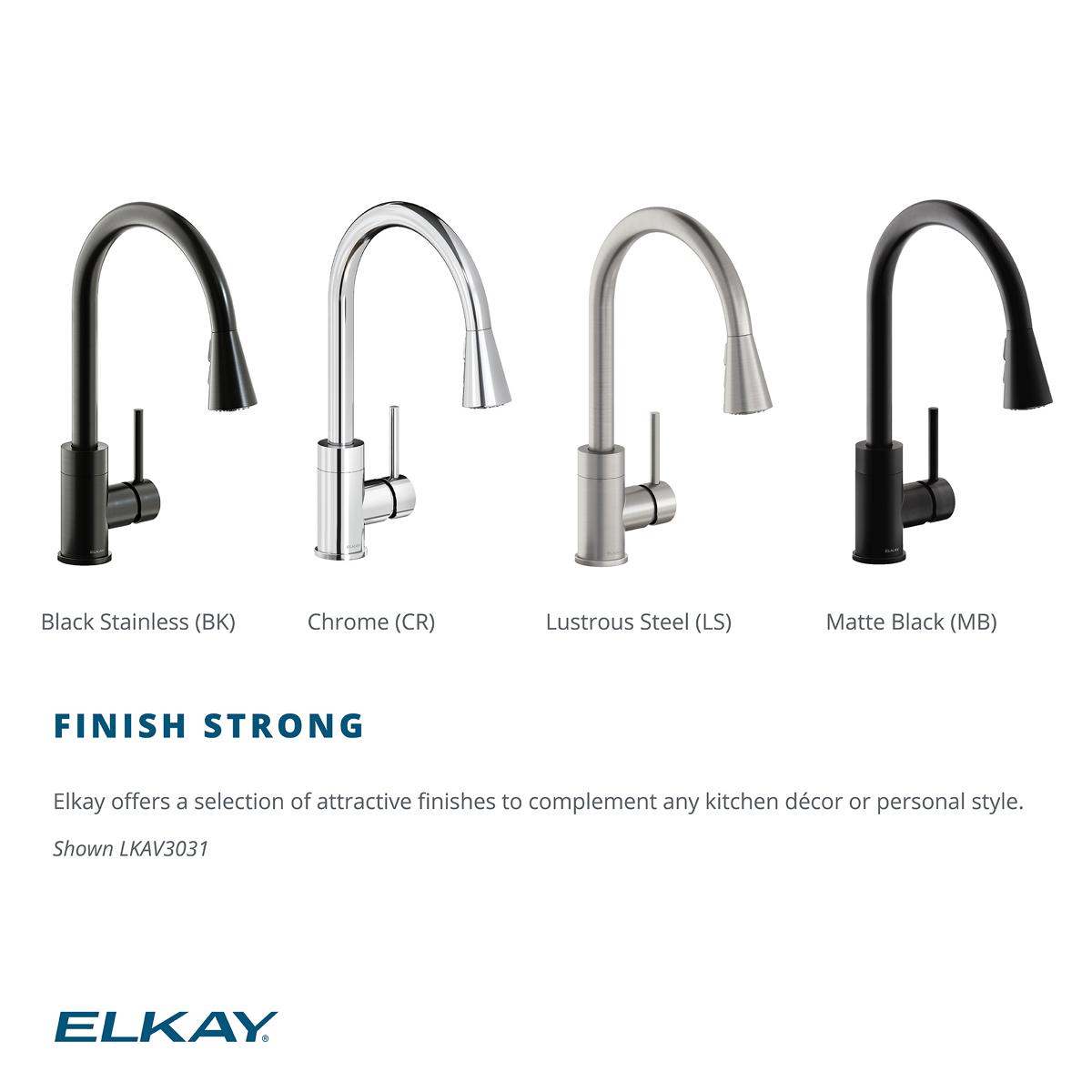

Available In:
Please see our color disclaimer.
Features

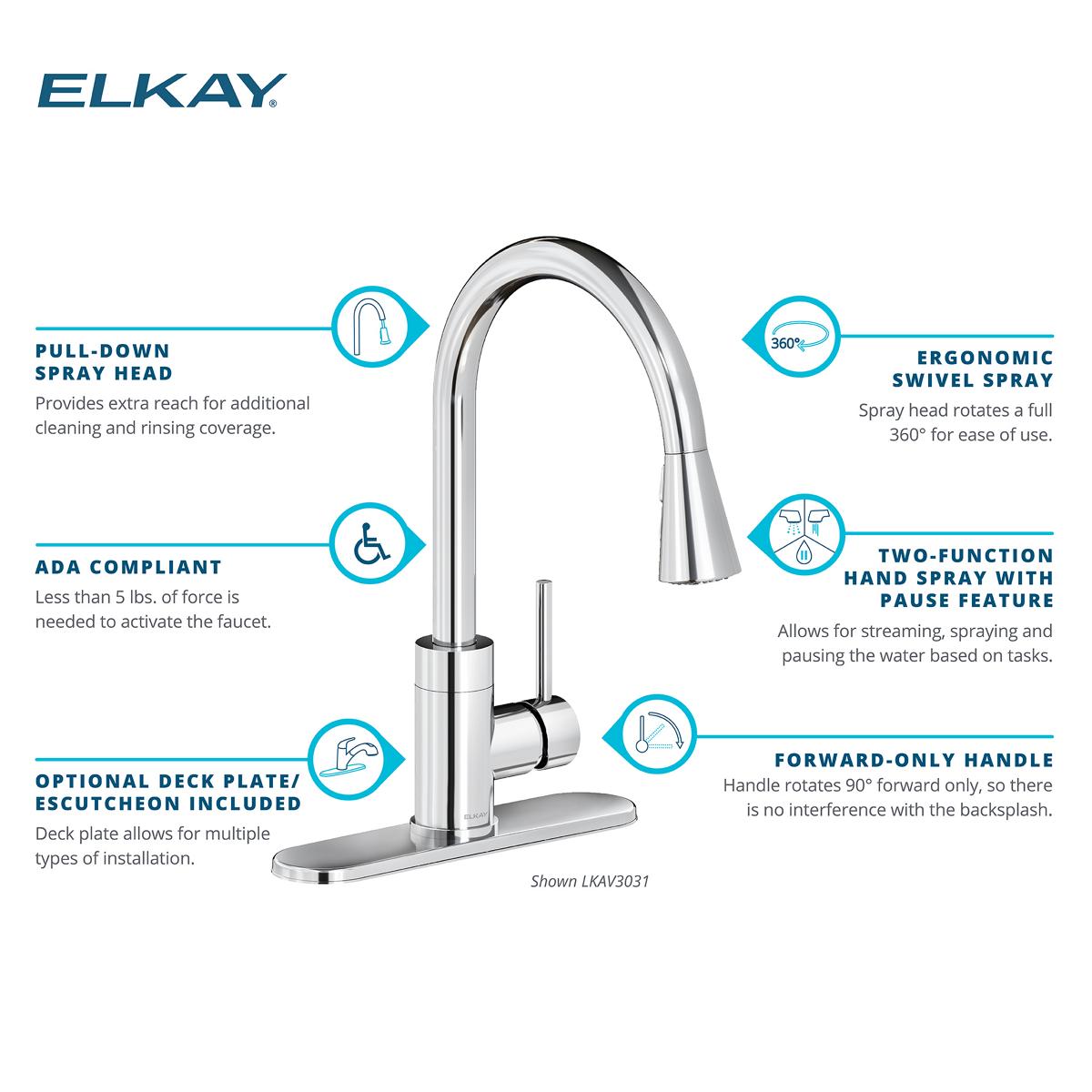

- PULL-DOWN SPRAY HEAD: Provides extra reach for additional cleaning and rinsing coverage.
- ERGONOMIC SWIVEL SPRAY: Spray head rotates a full 360° for ease of use.
- DURABLE AND FLEXIBLE NYLON-BRAIDED HOSE: Premium material provides smooth operation when extending and retracting spray head.
- TWO-FUNCTION WATER DELIVERY: Steady stream for everyday use; powerful spray for heavy-duty cleaning.

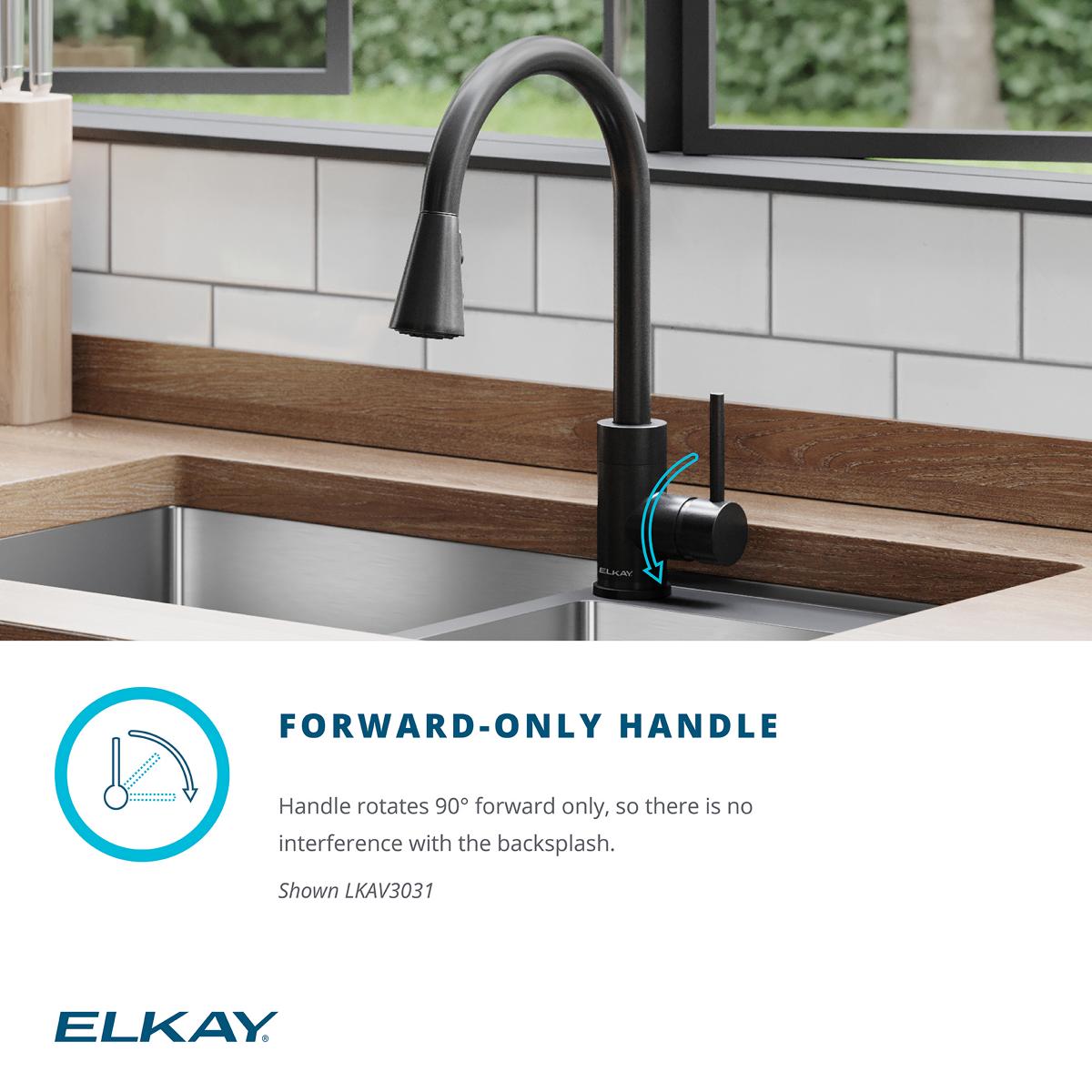

- SINGLE-HANDLE OPERATION: Handle rotates 90° forward only, so there is no interference with the backsplash.
- CERAMIC DISC CARTRIDGE: Provides durable and reliable performance; removable for easy replacement.
- ONE FAUCET HOLE: Faucet designed to be installed using one faucet hole.
- OPTIONAL ESCUTCHEON INCLUDED: Cover plate allows for multiple types of installations.
- LEAD-FREE COMPLIANT: Certified to NSF/ANSI 61 and 372 to meet all federal and state regulations for low or no-lead products.
- ADA COMPLIANT: Faucet is ADA compliant.
- California residents see Prop 65 Warnings.
Details
| ADA Compliant?: | Yes |
|---|---|
| Application: | Residential/MultiFamily |
| Box Height: | 3" |
| Box Length: | 25" |
| Box Weight: | 6.19 lb(s) |
| Box Width: | 11" |
| Cartridge Type: | Ceramic Disc |
| Code / Standard Compliance: | CEC Listed, ASME A112.18.1, CSA B125.1, NSF Standard 61, NSF Standard 372, NPCC, Lead Law Compliant, Lead Leaching NSF61/AB100 Compliant |
| Collection: | Avado |
| Color: | Chrome |
| Country of Origin: | China |
| Deck Clearance (in.): | 8.13 |
| End Connection: | 3/8" Female Compression Hose Assembly |
| Faucet Hole Size (in.): | 1.5 |
| Faucet Hole Spread: | 0 |
| Finish: | Chrome |
| Freight Class (LTL Only): | 77.5 |
| Handle Type: | Forward Only Lever Handle |
| Harmonized System Code: | 8481801030 |
| Installation Type: | Deck Mounted |
| Flow Rate: | 1.8 GPM |
| Item Height: | 15.69" |
| Item Length (Front to Back): | 10.6" |
| Item Weight: | 2.07 lb(s) |
| Item Width (Side to Side): | 11.39" |
| Material: | Brass |
| Max. Deck Thickness (in.): | 3 |
| Mount: | Deck Mount |
| NSF ANSI61 Certified?: | Yes |
| Number of Handles: | 1 |
| Required Holes: | 1 |
| Room: | Kitchen |
| SKU: | LKAV3031CR |
| Spout Height: | 15.69" |
| Spout Reach: | 9.14" |
| Spout Style: | Pull-down Spray |
| Spray Features: | Aerated,Nylon Hand Spray Hose,Spray |
| Spray Type: | Pull Down |
| cUPC Certified?: | Yes |
Warranty
Installation Instructions
Installation Instructions 1 (PDF)
Installation Instructions 2 (PDF)
Product Specifications (PDF)
Product Care
Video(s)
Product Video 1
Product Video 2
