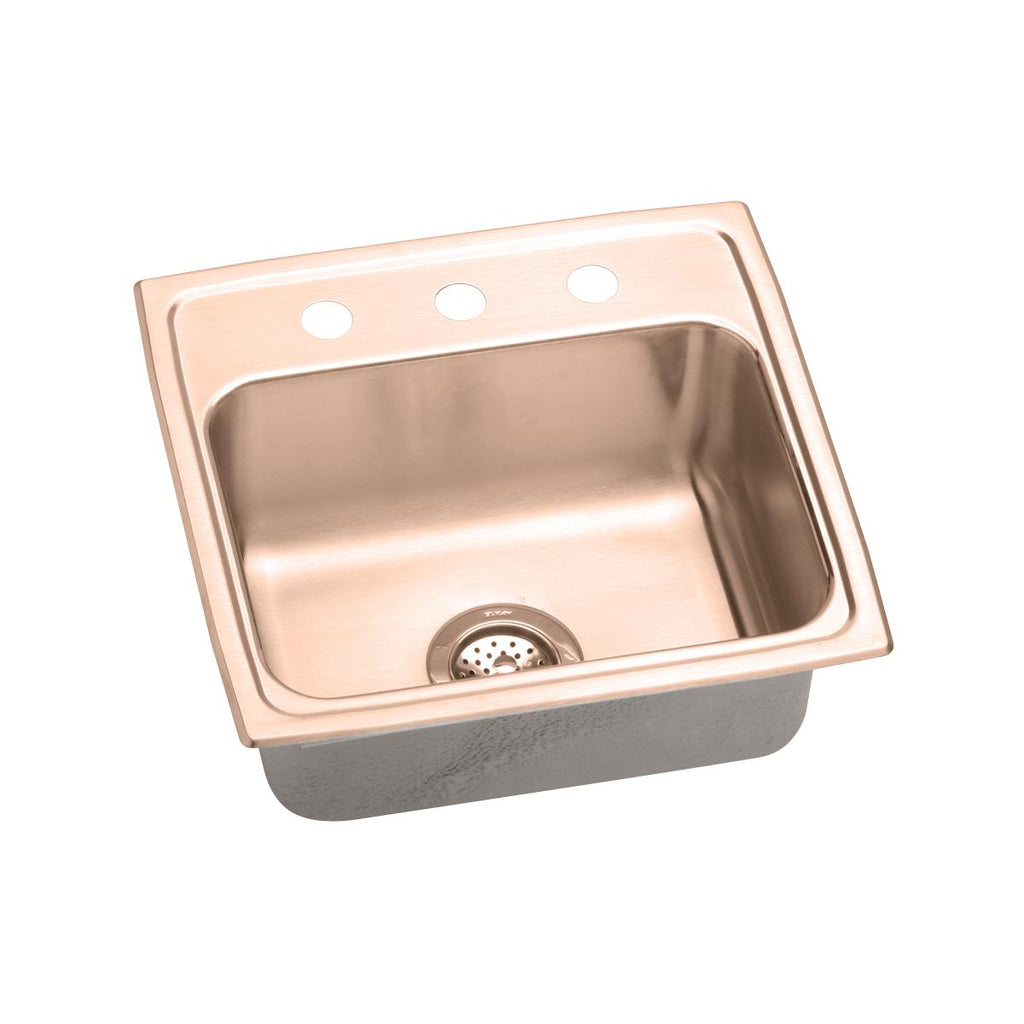

Elkay 20" Drop In/Topmount CuVerro Antimicrobial Copper ADA Kitchen Sink, Lustrous Satin, 1 Faucet Hole, LRAD1919651-CU
Founded in 1920, Elkay offers high-quality plumbing products for home and commercial applications. From kitchen sinks and faucets to bottle filling stations, our products are right where you are, right when you need us. We are powered by practical ingenuity, combining the style you want with the function you need. Elkay is proud to be America's No. 1 selling kitchen sink company.
Available In:
Please see our color disclaimer.
Features

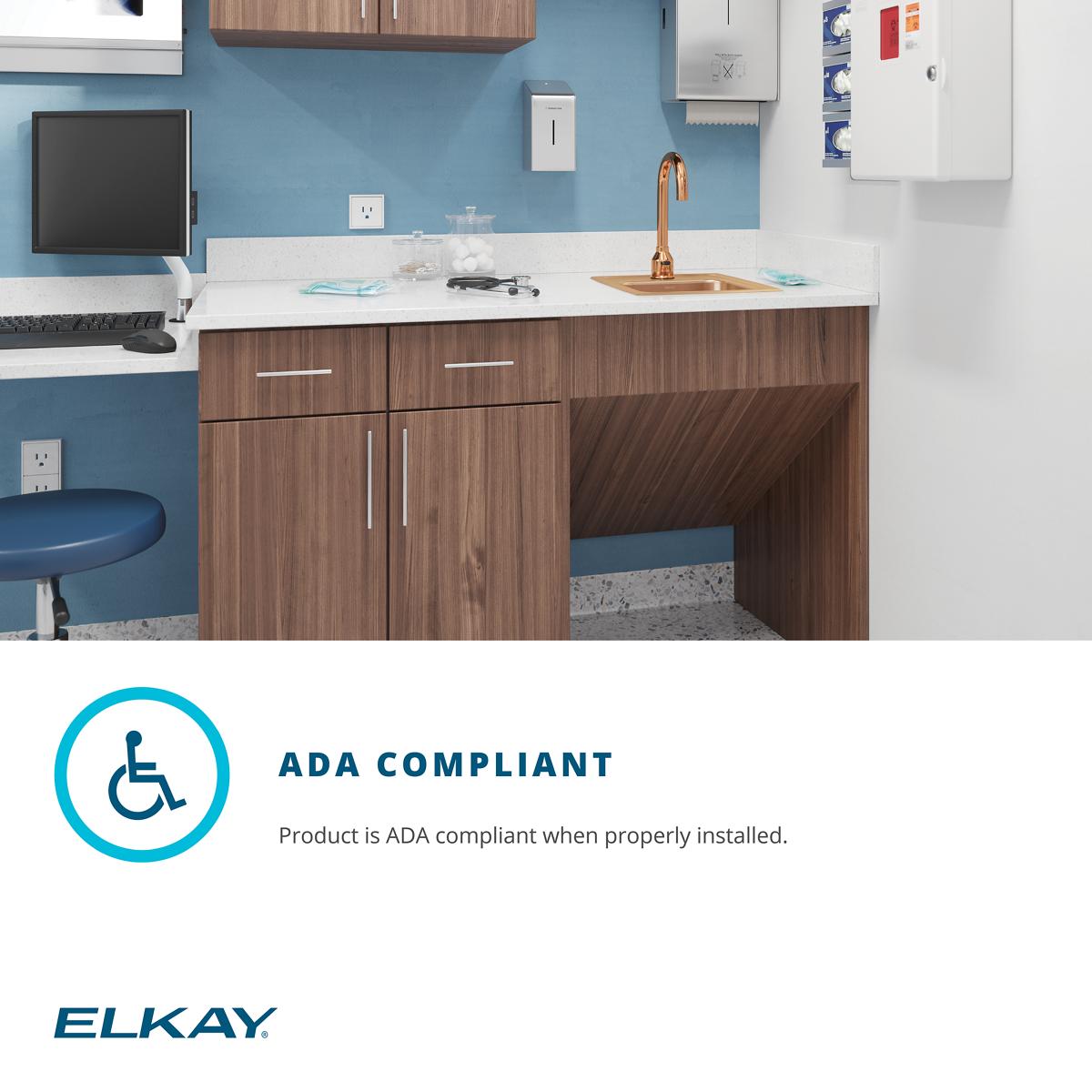

- ADA COMPLIANT: Product is ADA compliant when properly installed

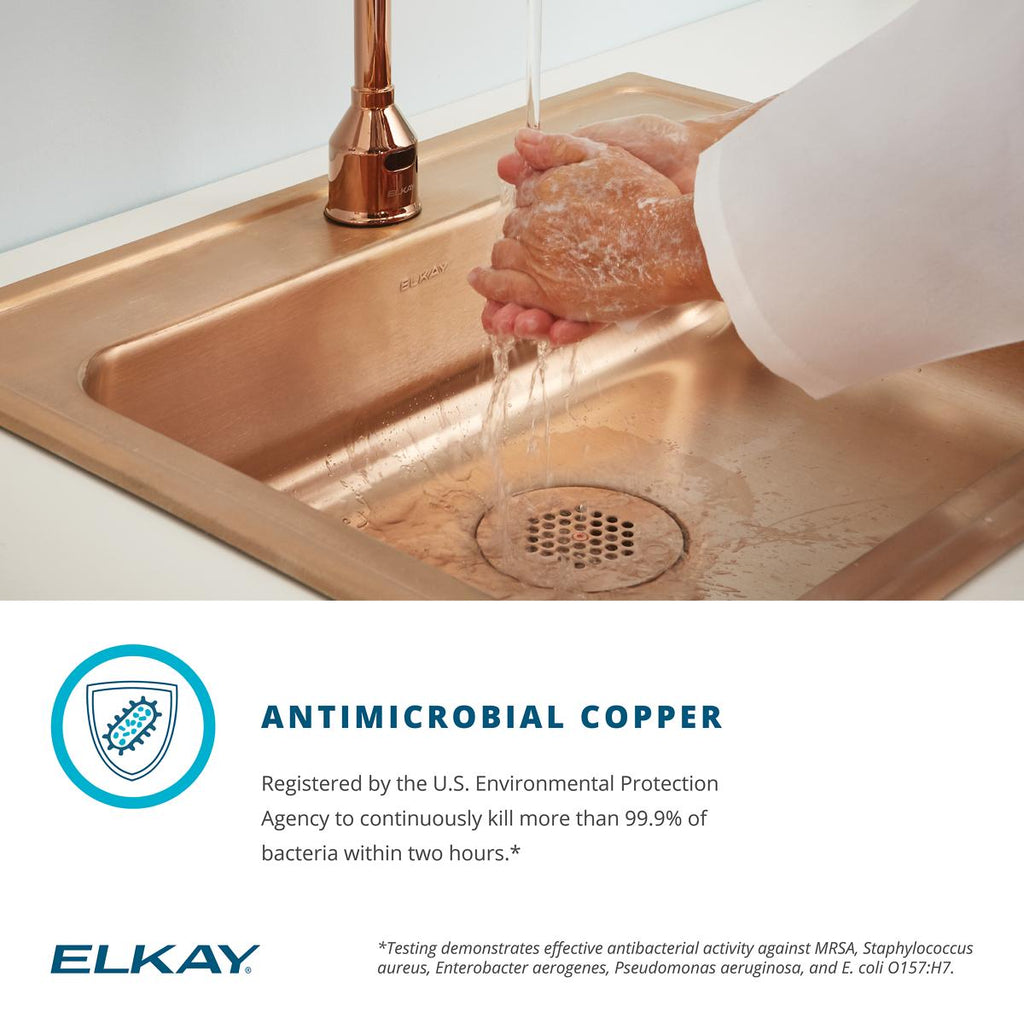

- ANTIMICROBIAL COPPER: Registered by the U.S. Environmental Protection Agency to continuously kill more than 99.9% of bacteria within two hours.
- REPAIRABLE FINISH: Finish is scratch resistant to heavy-duty use. Deep scratches are repairable. Lustrous grain reflects light evenly for high shine

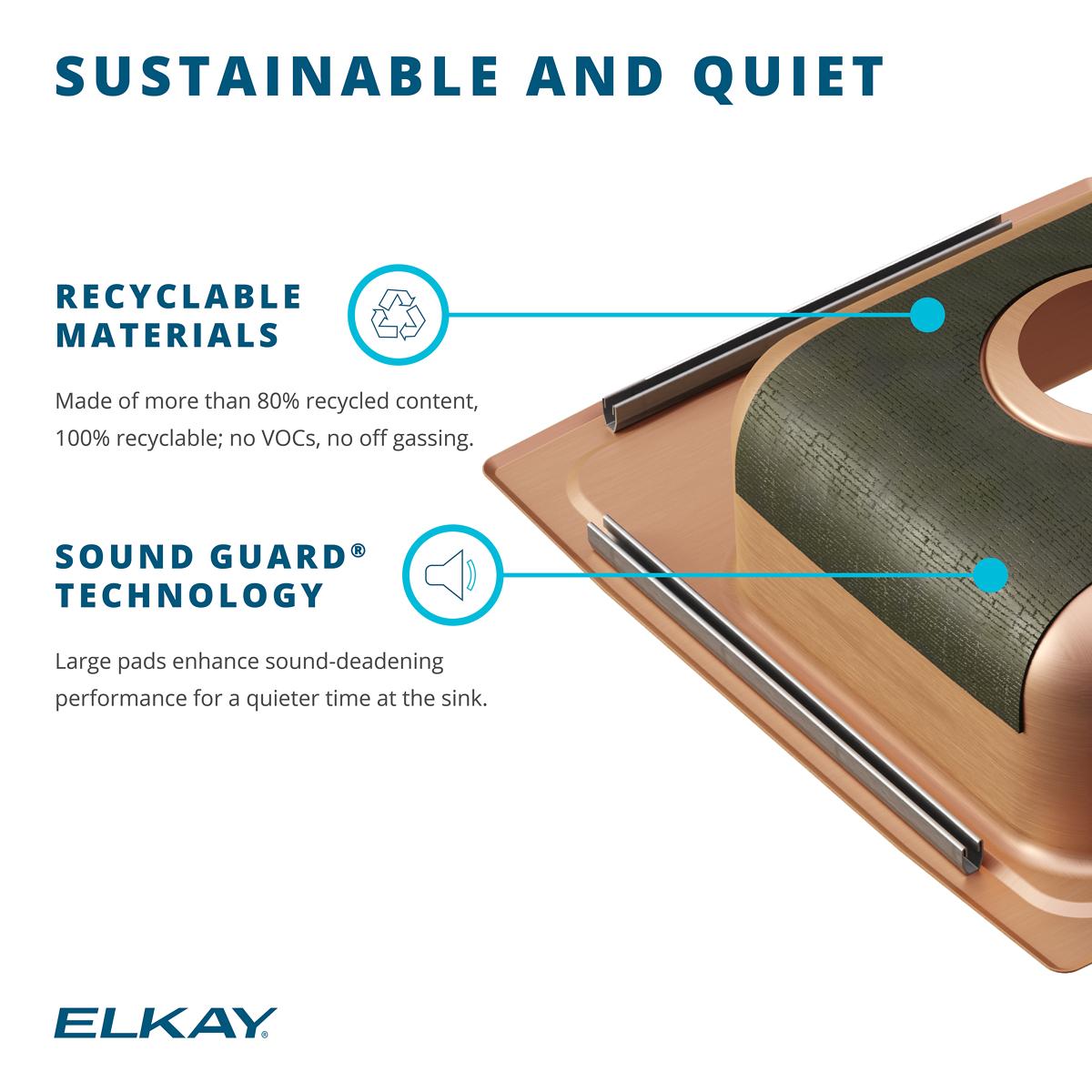

- Sound Guard TECHNOLOGY: Large pads enhance sound-deadening performance for a quieter time at the sink
- U-CHANNEL INSTALLATION: Mounting clips placed inside the channel before installation mean less time under the sink for an easier install
- OFFSET DRAIN: Drain placement provides more usable space on the bottom of the sink and in the cabinet below
- DRAIN OPENING: Sink drain opening measures 3-1/2"
- CABINET SIZE: Minimum cabinet size for this sink is 24".

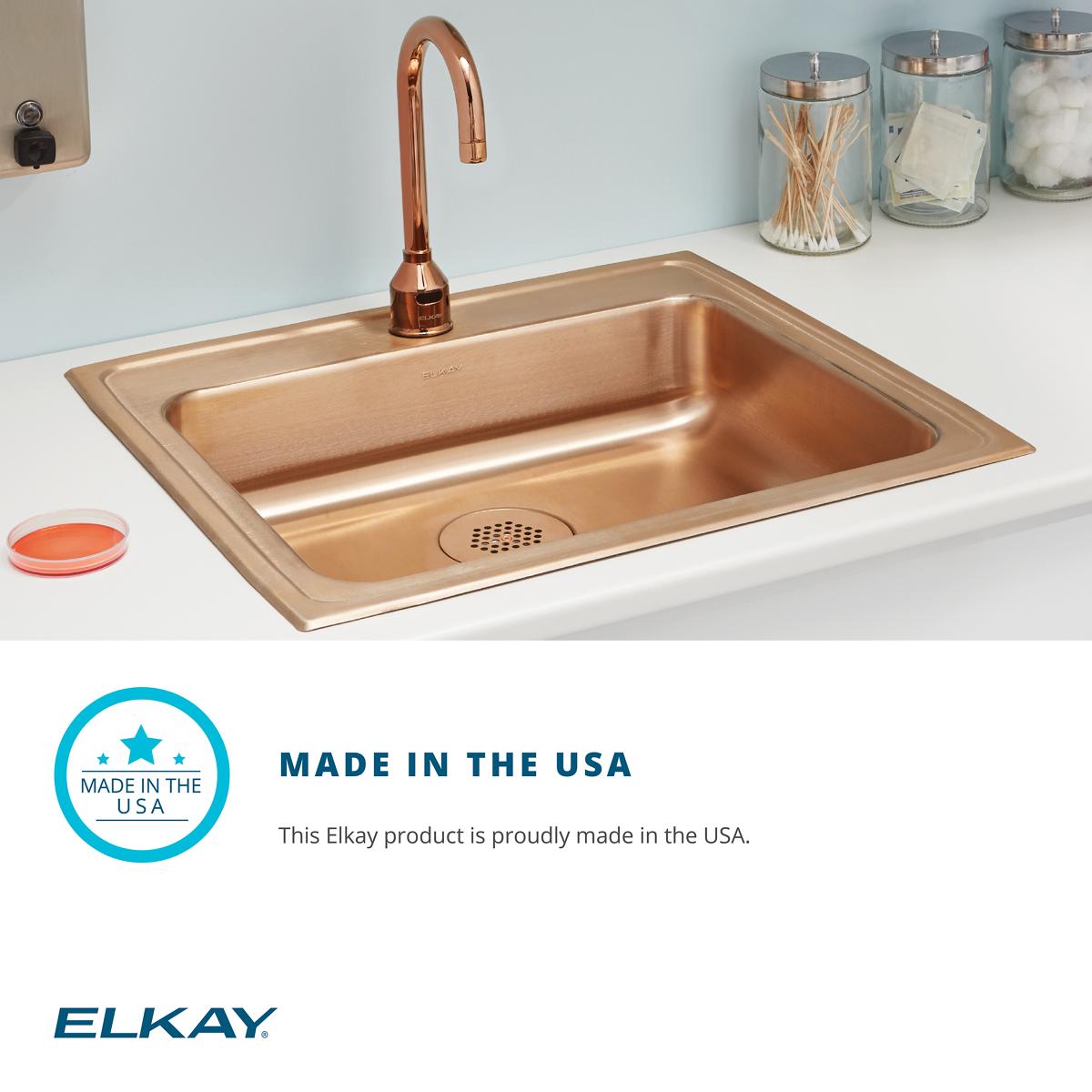

- MADE IN THE USA: This Elkay product is proudly made in the USA
- ABOUT ELKAY: Founded in 1920, Elkay offers high-quality plumbing products for residential and commercial use
- California residents see Prop 65 Warnings.
Details
| ADA Compliant?: | Yes |
|---|---|
| Application: | Health Care |
| Bowl Shape(s): | Rectangular |
| Bowl Split: | Single |
| Box Height: | 9.51" |
| Box Length: | 26.28" |
| Box Weight: | 13 lb(s) |
| Box Width: | 24.22" |
| Collection: | CuVerro antimicrobial copper |
| Color: | Lustrous Satin |
| Country of Origin: | USA |
| Cutout Dimension: | 18-7/8" x 18-3/8" (479mm x 467mm) with 1-1/2" (38mm) corner radius |
| Drain Size: | 3.5 |
| Finish: | Lustrous Satin |
| Freight Class (LTL Only): | 250 |

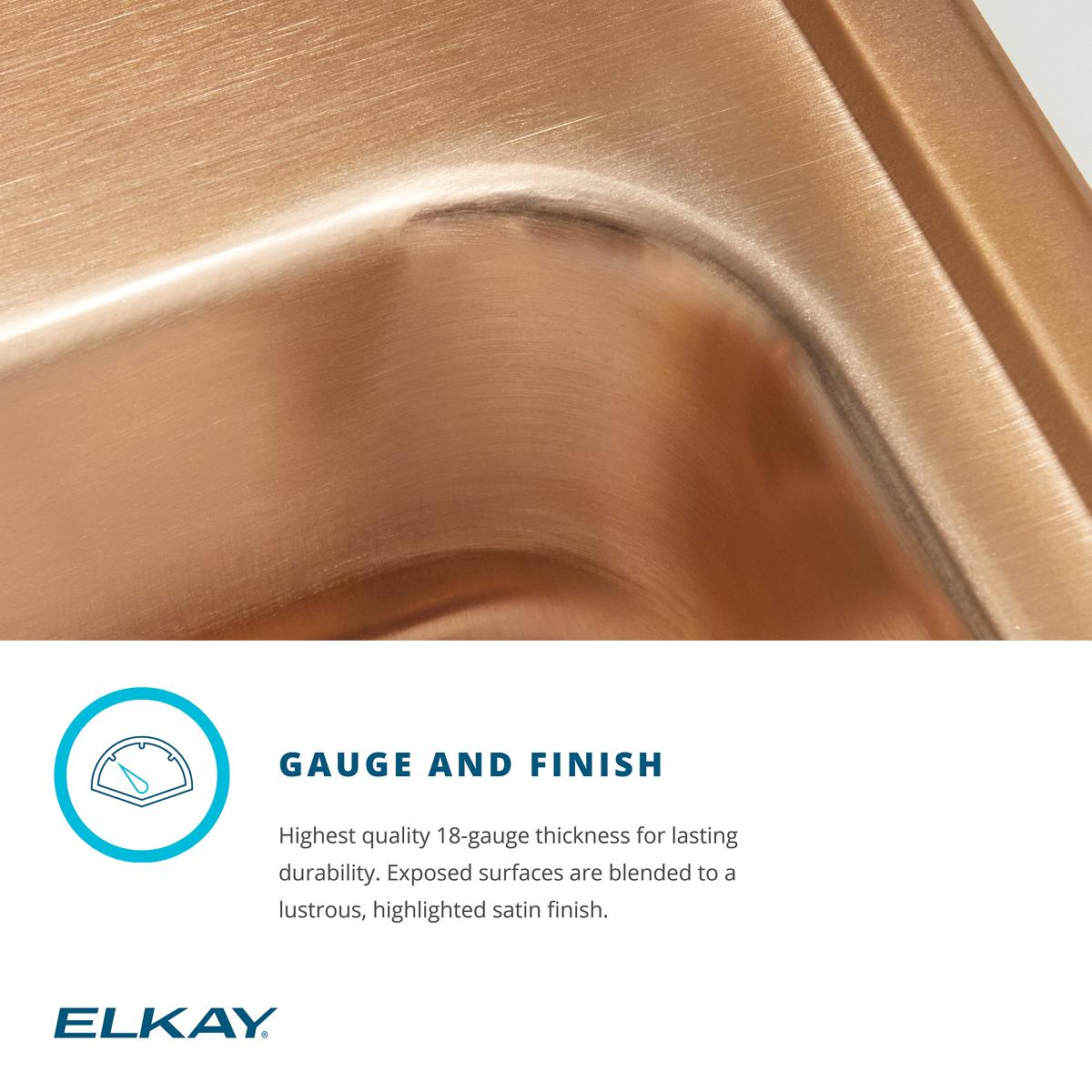

| Gauge: | 18 |
| Inner Depth: | 6.5" |
| Inside Bowl Dimensions: | 13.5" x 16" x 6.375" |
| Installation Type: | Drop In/Topmount |
| Item Height: | 6.5" |
| Item Length (Front to Back): | 19" |
| Item Width (Side to Side): | 19.5" |
| Made In USA?: | Yes |
| Material: | CuVerro Antimicrobial Copper |
| Minimum Cabinet Size: | 24" |
| Mounting Hardware Included: | Part # 64090012 included for countertops up to 3/4" (19mm) thick |
| Number of Bowls: | 1 |
| Number of Faucet Holes: | 1 |
| SKU: | LRAD1919651-CU |
| Shape: | Rectangular |
| Sound Deadening: | Bottom only pads |
Warranty
Elkay Warranty Details (PDF)
Installation Instructions
Installation Instructions 1 (PDF)
Product Specifications (PDF)
Product Care
Elkay Product Care (PDF)
Video(s)
Product Video 1
Product Video 2
